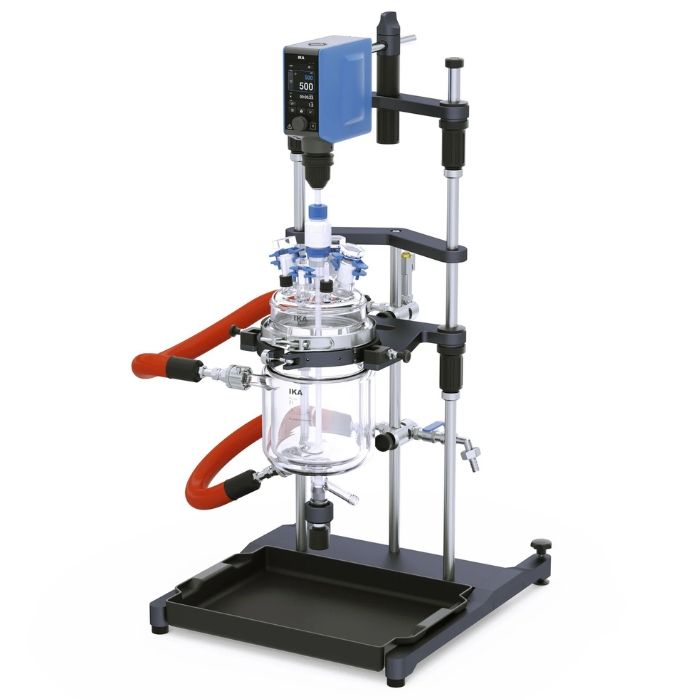

Reactor IKA EasySyn 2000 Advanced

UOM:

EACH

Stock:

Special Order

Add to Favourites

Downloads

User Manuals

Description

EasySyn is the reactor system for organic or aqueous syntheses. It ensures safe and reproducible chemical reactions on the way from laboratory to pilot scale.

The EasySyn 2000 Advanced package comprises a complete reactor system for use in the laboratory. The high-quality material used allows operation at temperatures from -50 to 200°C and up to a vacuum of 3 mbar.

Features and Benefits:

Ergonomically design stand system for quick and easy exchange of reactor vessels and adjustment of the working height to individuals.
DN 150 vessel clamp for mounting the reactor vessel.
Double walled 2000ml reactor vessel made of chemically resistant borosilicate 3.3 glass with bottom discharge valve.
Spring-loaded valve spindle of the drain to prevent glass breakage
Reactor lid with various openings for flexible adaptation to the desired application.
DN 150 clamp ring and DN 150 FEP-coated O-ring to ensure chemical resistance.
Powerful overhead stirrer - EUROSTAR 100 Control - with 200 Ncm, including torque measurement and keyless chuck for easy and fast mounting of the stirring tool.
PTFE-coated propeller stirrer for optimum mixing and chemical resistance.
High-quality stirrer guide for vacuum operation up to 3 mbar.

Technical Data:

Volume	2 L
Flange dimension	DN 150
Vacuum application	Yes
Lid centre neck	NS 29/32
Lid side necks	3x NS 29/32, 1x NS 14/23, 2x GL18
Working temperature	-50 - 200 °C
Usable volume min.	120 ml
Useable volume with temperature probe min.	400 ml
Attainable vacuum	3 mbar
Torque max. at stirring shaft	200 Ncm
Reversible direction of rotation	Yes
Torque max. at stirring shaft 30-600 rpm / up to 20min	200 Ncm
Torque max. at stirring shaft 600-1300 rpm	120-100 Ncm
Torque measurement	Yes
Deviation of torque measurement	±1 Ncm
RS 232 interface	Yes
USB interface	USB-C
WPAN interface	Yes
WiFi interface	Yes
Weight	20 kg
Dimensions (W x H x D)	500 x 950 x 580 mm
