Stock Code:
0020013292I

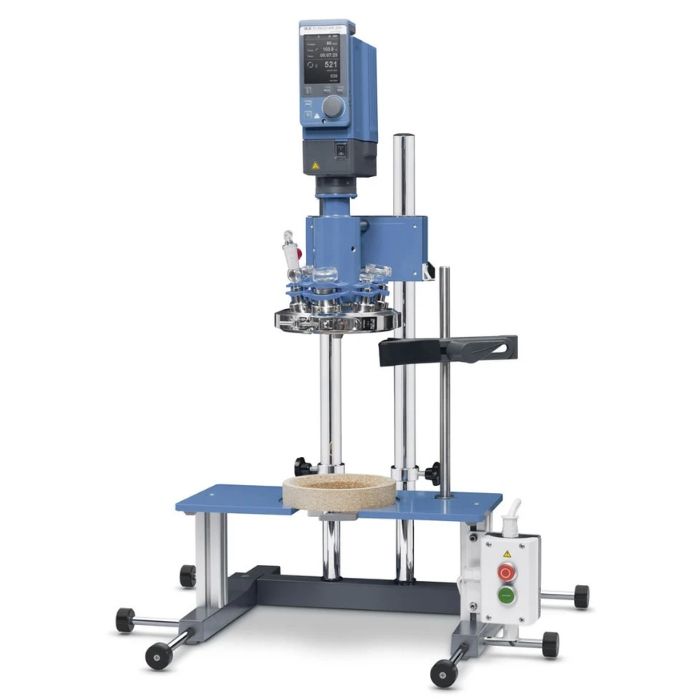

Reactor IKA the Allrounder
UOM:
EACH
Stock:
Special Order
Downloads
Description
Modularly configured laboratory reactor for the optimisation and reproduction of various chemical reactions, mixing and homogenisation processes on a lab scale.
The system is particularly characterised by the agitator mounting, which allows for a safe transfer of the higher motor torque.
ULTRA-TURRAX® dispersers, temperature sensors, flow breakers and other accessories can be attached to the open ports of the reactor cover.
Features and Benefits:
- Suitable for vacuum operation
- Solvent and temperature resistant perfluoroelastomer (FFPM) seals come into contact with sample
- Infinitely variable speed
- Torque trend display for measuring changes in viscosity
- Microprocessor-controlled speed regulation, enables steady speed, also under load
- Removable WiCo (wireless controller) for remote and safe use in a fume hood
Technical Data:
| Usable volume | 500 - 2000 ml |
| Usable volume with disperser tool min. | 800 ml |
| Working temperature | -50 - 230 °C |
| Attainable vacuum | 25 mbar |
| Viscosity max. | 100000 mPas |
| Speed range | 8 - 290 rpm |
| Telescope stand stroke | 390 mm |
| Material in contact with medium | Borosilicate glass, FFPM, PTFE, steel 1.4571 |
| Reactor vessel openings (units/standards) | 3/NS 29/32 2/NS 14/23 |
| Torque max. at stirring shaft | 200 Ncm |
| Permissible ambient temperature | 5 - 40 °C |
| Permissible relative humidity | 80 % |
| Batteries included with the product | Yes |
| Battery cell type | Custom LiPo |
| Number of batteries | 1 |
| Battery weight | 55 g |
| How is battery packaged | Within appliance |
| Dimensions (W x H x D) | 670 x 1240 x 580 mm |
| Weight | 25 kg |
Supplied With:
- LR-2.ST
- LR.SI
- LR2.10 Head, Reactor
- EUROSTAR 200 Control
Details
-
Warranty (Months):24
