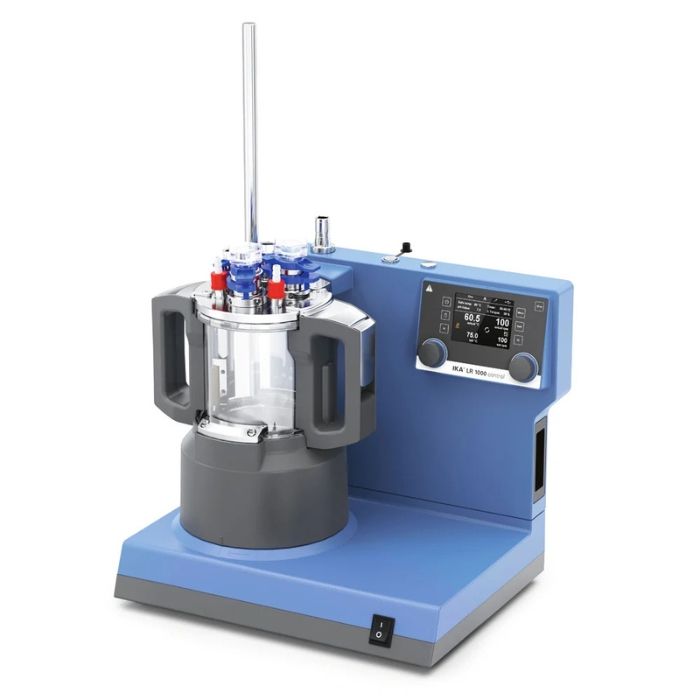

Reactor IKA LR1000 Control

UOM:

EACH

Stock:

Special Order

Add to Favourites

Downloads

User Manuals

Description

The LR 1000 Control is a cost efficient, modular laboratory reactor designed to optimise chemical reaction processes as well as for mixing, dispersing and homogenising tasks on a lab scale particularly in the cosmetic and pharmaceutical industry. The system can be adapted quickly and easily to a wide range of applications and specific requirements.

Prominent features are its intuitive menu navigation, integrated pH and temperature sensor connection as well as several interfaces that allow display and storage of process-relevant data on a PC. By using the laboratory software labworldsoft® (accessory) it is possible to even control the reactor via PC and make further settings. In addition, a control valve connection to attach a magnetic valve (accessory) for program-based cooling water control is integrated.

The medium can be heated either to a fixed maximum temperature of 120°C or to a set temperature by the heater at the bottom of the vessel. A temperature sensor inside the medium ensures that the set temperature is reached. Both, a PT 100.30 temperature sensor and the corresponding receptacle LR 1000.62 for the lid are included.

Features and Benefits:

Components in contact with medium: stainless steel (AISI 316L), FFKM, PTFE, PEEK, borosilicate glass 3.3
Large, easy to read TFT display for easy menu navigation
Integrated weighing function
Torque trend measurement indicates changes in product viscosity
Integrated pH sensor connection
RS 232 and USB interface to operate the unit with labworldsoft®
Standard joint fittings on the lid: 2x NS 29, 2x NS14, 2x GL 14 for flexible adaptation of further equipment
Expandable for use with the ULTRA-TURRAX® T 25 Digital (accessory)
Vacuum valve included
Connections to attach a cooling source to the back of the unit
Manual adjustable safety circuit
Integrated safety shutdown when vessel or lid is removed from base

Technical Data:

Useable volume max.	1000ml
Useable volume with disperser tool min.	500ml
Useable volume without disperser tool min.	300ml
Working temperature max.	120°C
Attainable vacuum	25 mbar
Viscosity max.	100000 mPas
Speed range	10 - 150 rpm
Support rod diameter (with integrated fastening on stand)	16mm
Material in contact with medium	AISI 316 L, FFKM, PTFE, PEEK, Boro 3.3 glass
Reactor vessel openings	2 x NS 29/32, 2 x NS 14/23, 2 x GL 14
Permissible ON time	100%
Temperature measurement resolution	0.1 K
Nominal torque	3 Nm
Heat output	1000 W
Cooling medium permissible operating pressure	1 bar
Weighing range min.	3 g
Weighing range max.	2000 g
Weighing accuracy	±10 - ±20 K
Cooling medium temperature min.	3°C
Set temperature resolution	1 K
Heat control accuracy of medium with sensor	±0.2 K
Speed deviation	±5 rpm
Speed display	TFT
Heat control	TFT
Connection for ext. temperature sensor	PT 100
Stirring element fastening	Special output shaft
Torque display	Yes
Torque measurement	Trend
Timer	Yes
Timer display	TFT
Speed adjustment	1 rpm steps
Type of cooling	Flow
Temperature display	Yes
Working temperature sensor	PT 100
Safety temperature sensor	PT 1000
Working temperature display	TFT
Safety temperature display	TFT
Display for operation with ext. sensor	Yes
Safety cutout	Yes
MV1 interface	Yes
pH meter interface	Yes / BNC socket female
pH value display	TFT
Permissible ambient temperature	5 - 40 °C
Permissible relative humidity	80 %
Protection class according to DIN EN 60529	IP 21
RS 232 interface	Yes
USB interface	Micro-USB
WPAN interface	Yes
Power input	1200 W
Weight	23 kg
Dimensions (W x H x D)	443 x 360 x 295 mm
