Stock Code:
0020100787I
Reactor IKA LR-5.ST the High Performer
UOM:
EACH
Stock:
Special Order
Downloads
Description

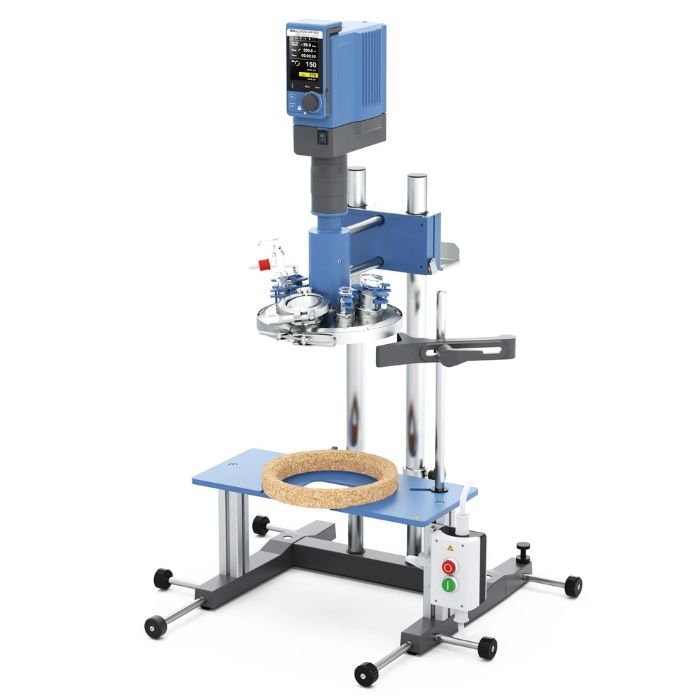

Modularly configured laboratory reactor for the optimisation and reproduction of various chemical reactions, mixing and homogenisation processes on a 5 litre lab scale.
The system is particularly characterised by the agitator mounting, which allows for a safe transfer of the higher motor torque.
ULTRA-TURRAX® dispersers, temperature sensors, flow breakers and other accessories can be attached to the open ports of the reactor cover.
The reactor system enables stirring, dispersing and tempering in a single step under vacuum. This avoids the introduction of air during dispersion and increases the quality of the resulting product.
Features and Benefits:
- Suitable for vacuum operation up to 25 mbar
- Solvent and temperature resistant perfluoroelastomer (FFPM) seals come into contact with sample
- Infinitely variable speed
- Torque trend display for measuring changes in viscosity
- Microprocessor-controlled speed regulation, enables steady speed, also under load
- Removable WiCo (wireless controller) for remote and safe use in a fume hood
Technical Data:
| Usable volume | 2000 - 5000 ml |
| Usable volume with disperser tool min. | 2300 ml |
| Working temperature | -50 - 230 °C |
| Attainable vacuum | 25 mbar |
| Viscosity max. | 100000 mPas |
| Speed range | 8 - 290 rpm |
| Telescope stand stroke | 390 mm |
| Material in contact with medium | Borosilicate glass, FFKM, PTFE, PEEK, AISI 316L |
| Reactor vessel openings (units/standards) | 2/NS 29/32, 3/NS 14/23, 2x GL14, 1x 2" clamp flange, 1x M24 x 1.5 |
| Torque max. at stirring shaft | 660 Ncm |
| Permissible ambient temperature | 5 - 40 °C |
| Permissible relative humidity | 80 % |
| Dimensions (W x H x D) | 460 x 1320 x 430 mm |
| Weight | 26 kg |
Supplied With:
- LR-5.ST
- LR.SI
- LR-5.ST reactor lid
- EUROSTAR 660 high torque control
- DN200 clamp ring
- Cork ring
- Tools
Details
-
Warranty (Months):24
