Stock Code:
0020119960I

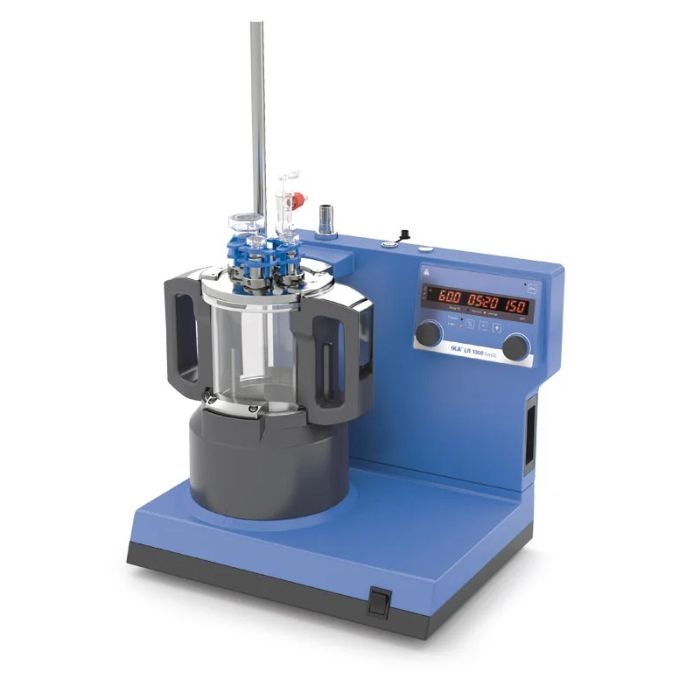

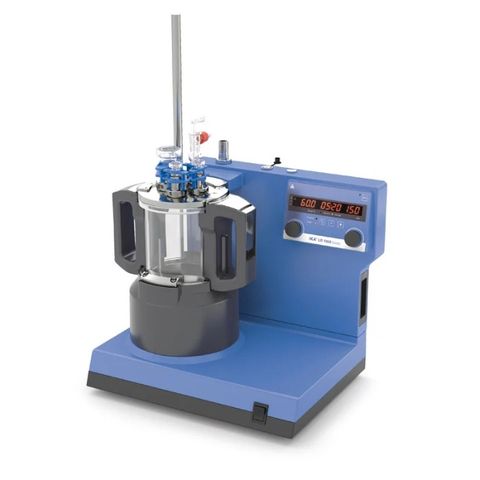

Reactor IKA LR1000 basic
UOM:
EACH
Stock:
Special Order
Downloads
Description
The LR 1000 basic is a cost efficient, modular laboratory reactor designed for optimising chemical reaction processes as well as for mixing, dispersing and homogenisation applications at the laboratory scale. The reactor is especially designed for the unique application requirements that define the cosmetic and pharmaceutical industries. The temperature of the medium can be as high as 120°C. The temperature of the heating source, which is located at the bottom of the vessel, is controlled accordingly to reach the set temperature inside the medium. A PT 100.30 temperature sensor and the corresponding receptacle LR 1000.61 for the lid are included with this package.
Technical Data:
| Usable volume max. | 1000ml |
| Usable volume with disperser tool min. | 500ml |
| Usable volume without disperser tool min. | 300ml |
| Working temperature max. | 120°C |
| Attainable vacuum | 25 mbar |
| Viscosity max. | 100000 mPas |
| Speed range | 10 - 150 rpm |
| Support rod diameter (with integrated fastening on stand) | 16mm |
| Materials in contact with medium | AISI 316L, 1.4571, borosilicate glass 3.3, PTFE, PEEK, FKM |
| Reactor vessel openings (units/standard) | 1/NS 29/32, 3/NS 14/23 |
| Permissible ON time | 100% |
| Temperature measurement resolution | 0.1 K |
| Nominal torque | 3 Nm |
| Heat output | 1000 W |
| Cooling medium permissible operating pressure | 1 bar |
| Speed min. (adjustable) | 10 rpm |
| Heating temperature max. | 180°C |
| Adjustable safety circuit | 47 - 225°C |
| Adjustable safety circuit, temperature deviation | ±10 - ±20 K |
| Cooling medium temperature min. | 3°C |
| Set temperature resolution | 1 K |
| Heat control accuracy of medium with sensor | ±0.2 K |
| Speed deviation | ±5 rpm |
| Speed display | 7 segment LED |
| Heat control | LED |
| Connection for ext. temperature sensor | PT 100 |
| Timer | Yes |
| Timer display | 7 segment LED |
| Speed adjustment | 1 RPM steps |
| Type of cooling | Flow |
| Temperature display | Yes |
| Safety temperature display | LED |
| Display for operation with ext. sensor | Yes |
| Safety cutout | Yes |
| Permissible ambient temperature | 5 - 40°C |
| Permissible relative humidity | 80% |
| Protection class DIN EN 60529 | IP 21 |
| RS 232 interface | Yes |
| USB interface | Micro-USB |
| Power input | 1200 W |
| Weight | 22kg |
| Dimensions (W x H x D) | 443 x 360 x 295mm |
Supplied With:
- LR 1000 Basic base
- LR 1000.1 Laboratory reactor vessel
- LR 1000.61 Sensor receptacle
- PT 100.30 Temperature sensor
- LR 1000.11 Anchor stirrer
- Support rod
- Hose connectors for cooling hoses (2pcs)
Details
-
Warranty (Months):24
