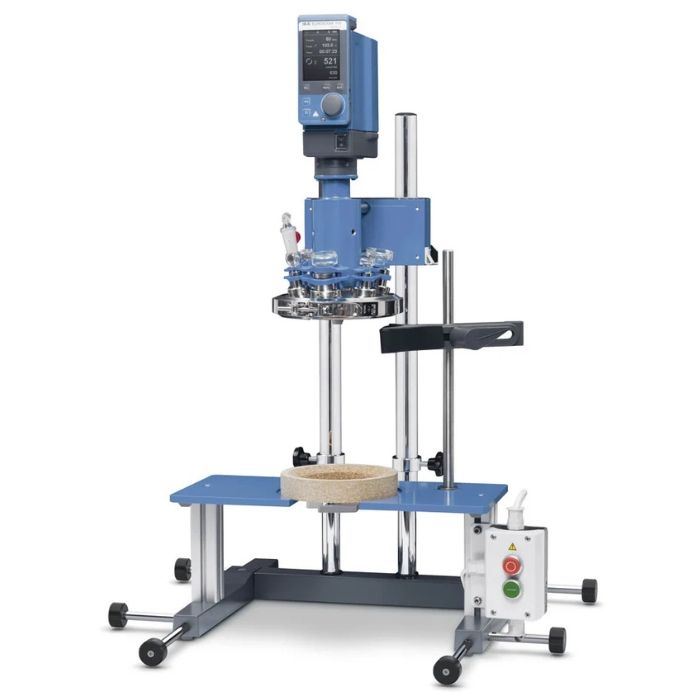

Reactor IKA Starvisc 200
Downloads
Description
Modularly configured laboratory reactor for the optimisation and reproduction of various chemical reactions, mixing and homogenisation processes on a lab scale.
The reactor system is particularly helpful during development because the torque-measurement stirrer STARVISC 200-2.5 Control already clearly indicates while running research programmes as to whether the stirred substance can be used as desired. The system is particularly characterised by the agitator mounting, which allows for a safe transfer of the higher motor torque. In combination with STARVISC it is possible to intensively stir even highly viscous substances and at the same time display their viscosity.
In addition, ULTRA-TURRAX® dispersers, temperature sensors, flow breakers and other accessories can be attached to the open ports of the reactor cover.
Features and Benefits:
- Suitable for vacuum operation
- Solvent and temperature resistant perfluoroelastomer (FFPM) seals come into contact with sample
- Infinitely variable speed
- Torque trend display for measuring changes in viscosity
- Microprocessor-controlled speed regulation, enables steady speed, also under load
- Removable WiCo (wireless controller) for remote and safe use in a fume hood
Technical Data:
| Usable volume | 500 - 2000 ml |
| Usable volume with disperser tool min. | 800 ml |
| Working temperature | -50 - 230 °C |
| Attainable vacuum | 25 mbar |
| Viscosity max. | 100000 mPas |
| Speed min. | 6 rpm |
| Telescope stand stroke | 390 mm |
| Material in contact with medium | Borosilicate glass, FFPM, PTFE, steel 1.4571 |
| Reactor vessel openings (units/standards) | 3/NS 29/32 2/NS 14/23 |
| Torque max. at stirring shaft | 200 Ncm |
| Permissible ambient temperature | 5 - 40 °C |
| Permissible relative humidity | 80 % |
| Dimensions (W x H x D) | 670 x 1240 x 580 mm |
| Weight | 25 kg |
Supplied With:
- LR-2.ST
- LR.SI
- LR2.10 Head, Reactor
- STARVISC 200-2.5 Control
Details
-
Warranty (Months):24
