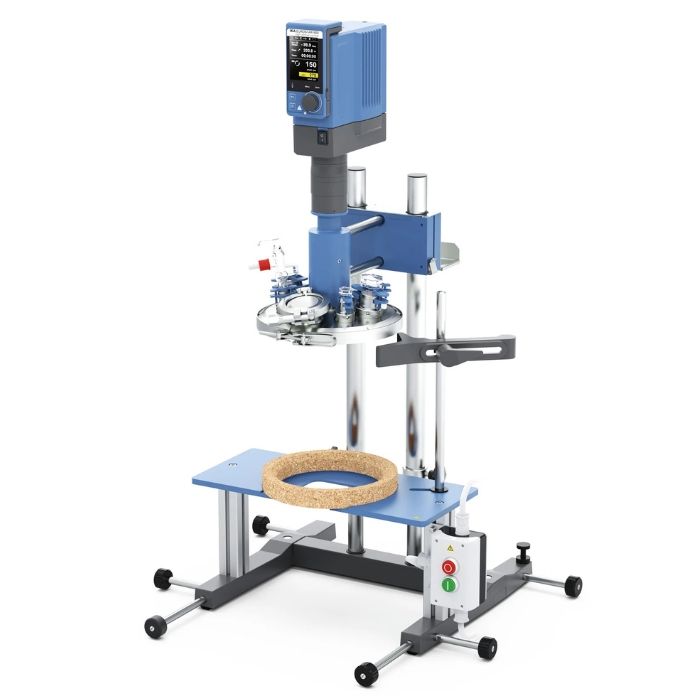

Reactor IKA LR-5.ST the Versatile

UOM:

EACH

Stock:

Special Order

Add to Favourites

Downloads

User Manuals

Description

Modularly configured laboratory reactor for the optimisation and reproduction of various chemical reactions, mixing and homogenisation processes on a 5 litre lab scale.

The system is particularly characterised by the agitator mounting, which allows for a safe transfer of the higher motor torque. In addition, the overhead stirrer used allows the direction of rotation to be reversed, making this reactor system particularly suitable for aqueous solutions. The mixing of these solutions will be improved by the change in direction of rotation.

ULTRA-TURRAX® dispersers, temperature sensors, flow breakers and other accessories can be attached to the open ports of the reactor cover.

Features and Benefits:

Suitable for vacuum operation up to 25 mbar
Solvent and temperature resistant perfluoroelastomer (FFPM) seals come into contact with sample
Infinitely variable speed
Torque trend display for measuring changes in viscosity
Microprocessor-controlled speed regulation, enables steady speed, also under load
Removable WiCo (wireless controller) for remote and safe use in a fume hood

Technical Data:

Usable volume	2000 - 5000 ml
Usable volume with disperser tool min.	2300 ml
Working temperature	-50 - 230 °C
Attainable vacuum	25 mbar
Viscosity max.	70000 mPas
Speed range	30 - 1300 rpm
Telescope stand stroke	390 mm
Material in contact with medium	Borosilicate glass, FFKM, PTFE, PEEK, AISI 316L
Reactor vessel openings (units/standards)	2/NS 29/32, 3/NS 14/23, 2x GL14, 1x 2" clamp flange, 1x M24 x 1.5
Torque max. at stirring shaft	100 Ncm
Permissible ambient temperature	5 - 40 °C
Permissible relative humidity	80 %
Dimensions (W x H x D)	460 x 1320 x 430 mm
Weight	26 kg
