EasySyn is the reactor system for organic or aqueous syntheses. It ensures safe and reproducible chemical reactions on the from laboratory to pilot scale.

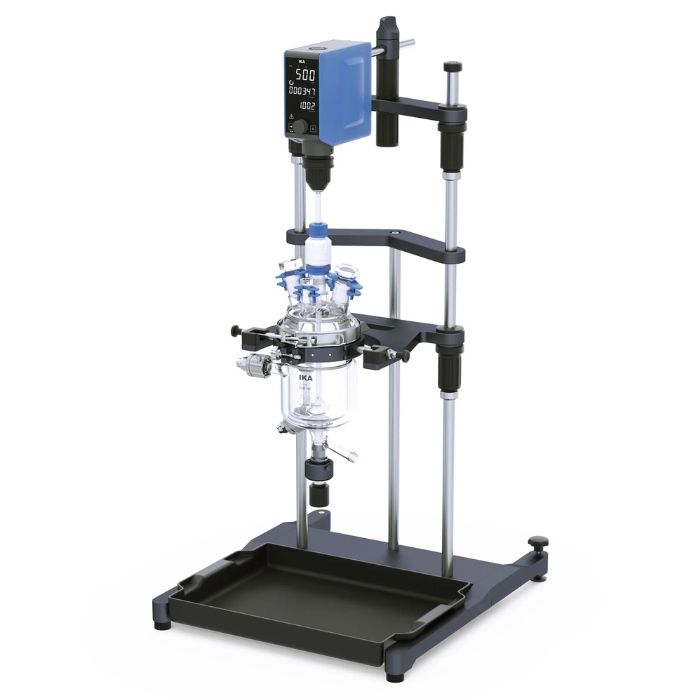

The EasySyn 1000 Starter package comprises a complete reactor system for use in the laboratory. The high-quality material used allows operation at temperatures from -50 to 200°C and up to a vacuum of 3 mbar.

Features and Benefits:

Ergonomically design stand system for quick and easy exchange of reactor vessels and adjustment of the working height to individuals.
DN 100 vessel clamp for mounting the reactor vessel.
Double walled 1000ml reactor vessel made of chemically resistant borosilicate 3.3 glass with bottom discharge valve.
Spring-loaded valve spindle of the drain to prevent glass breakage
Reactor lid with various openings for flexible adaptation to the desired application.
DN 100 clamp ring and DN 100 FEP-coated O-ring to ensure chemical resistance.
Powerful overhead stirrer - EUROSTAR 60 Digital - with 60 Ncm, including torque measurement and keyless chuck for easy and fast mounting of the stirring tool.
PTFE-coated propeller stirrer for optimum mixing and chemical resistance.
High-quality stirrer guide for vacuum operation up to 3 mbar.

Technical Data:

Volume	1 L
Flange dimension	DN 100
Vacuum application	Yes
Lid centre neck	NS 29/32
Lid side necks	2x NS 29/32, 1x NS 14/23
Working temperature	-50 - 200 °C
Usable volume min.	120 ml
Useable volume with temperature probe min.	260 ml
Attainable vacuum	3 mbar
Torque max. at stirring shaft	100 Ncm
Torque max. at stirring shaft 30-400 rpm	100 Ncm
Torque max. at stirring shaft 400-2000 rpm	100-60 Ncm
Torque measurement	Yes
Deviation of torque measurement	±6 Ncm
RS 232 interface	Yes
USB interface	USB-C
Weight	20 kg
Dimensions (W x H x D)	500 x 950 x 580 mm
