Stock Code:
0020113434I
Reactor IKA EasySyn 500 Advanced
UOM:
EACH
Stock:
Special Order
Downloads
Description
EasySyn is the reactor system for organic or aqueous syntheses. It ensures safe and reproducible chemical reactions on the from laboratory to pilot scale.

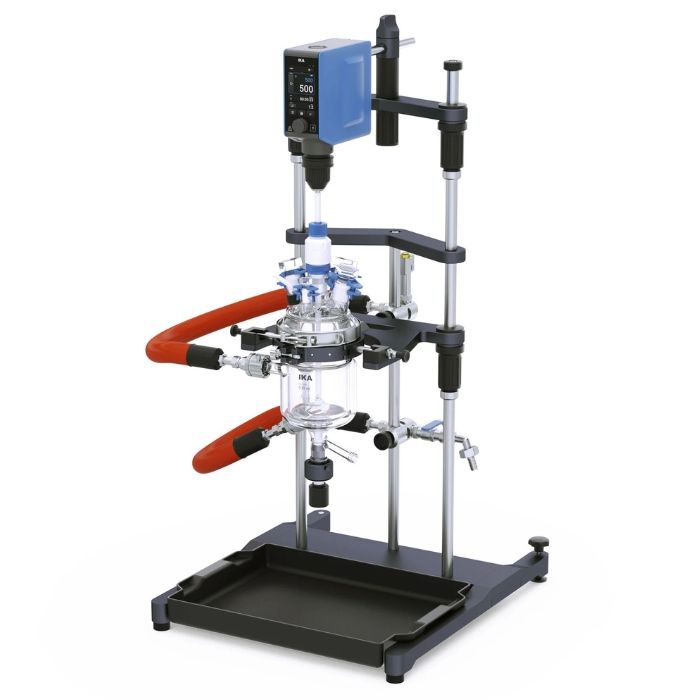

The EasySyn 500 Advanced package comprises a complete reactor system for use in the laboratory. The high-quality material used allows operation at temperatures from -50 to 200°C and up to a vacuum of 3 mbar.
Features and Benefits:
- Ergonomically design stand system for quick and easy exchange of reactor vessels and adjustment of the working height to individuals.
- DN 100 vessel clamp for mounting the reactor vessel.
- Double walled 500ml reactor vessel made of chemically resistant borosilicate 3.3 glass with bottom discharge valve.
- Spring-loaded valve spindle of the drain to prevent glass breakage
- Reactor lid with various openings for flexible adaptation to the desired application.
- DN 100 clamp ring and DN 100 FEP-coated O-ring to ensure chemical resistance.
- Powerful overhead stirrer - EUROSTAR 100 Control - with 200 Ncm, including keyless chuck for easy and fast mounting of the stirring tool, high precision torque monitoring and viscosity measurement.
- Additional functions such as timer, overload protection and temperature measurement integrated in the overhead stirrer.
- PTFE-coated propeller stirrer for optimum mixing and chemical resistance.
- High-quality stirrer guide for vacuum operation up to 3 mbar.
Technical Data:
| Volume | 0.5 L |
| Flange dimension | DN 100 |
| Vacuum application | Yes |
| Lid centre neck | NS 29/32 |
| Lid side necks | 3x NS 29/32, 1x NS 14/23, 2x GL18 |
| Working temperature | -50 - 200 °C |
| Usable volume min. | 30 ml |
| Useable volume with temperature probe min. | 260 ml |
| Attainable vacuum | 3 mbar |
| Torque max. at stirring shaft | 200 Ncm |
| Reversible direction of rotation | Yes |
| Torque max. at stirring shaft 30-600 rpm / up to 20 min | 200 Ncm |
| Torque max. at stirring shaft 600-1300 rpm | 120-100 Ncm |
| Torque measurement | Yes |
| Deviation of torque measurement | ±1 Ncm |
| RS 232 interface | Yes |
| USB interface | USB-C |
| WPAN interface | Yes |
| WiFi interface | Yes |
| Ethernet interface | Yes |
| Weight | 20 kg |
| Dimensions (W x H x D) | 500 x 950 x 580 mm |
- EUROSTAR 100 Control
- LT 5.40 draining set
- R 4011 SY Propeller stirrer
- SY guide
- SY O-ring 100
- SY clamp ring 100
- SY clamp 100
- SY 100.2 reactor lid
- SY 500 D reactor vessel
- SY stand
Details
-
Warranty (Months):24
