Stirrer Magnetic Hotplate IKA RCT Basic ETS-D5 Package

UOM:

EACH

Stock:

Special Order

Add to Favourites

Description

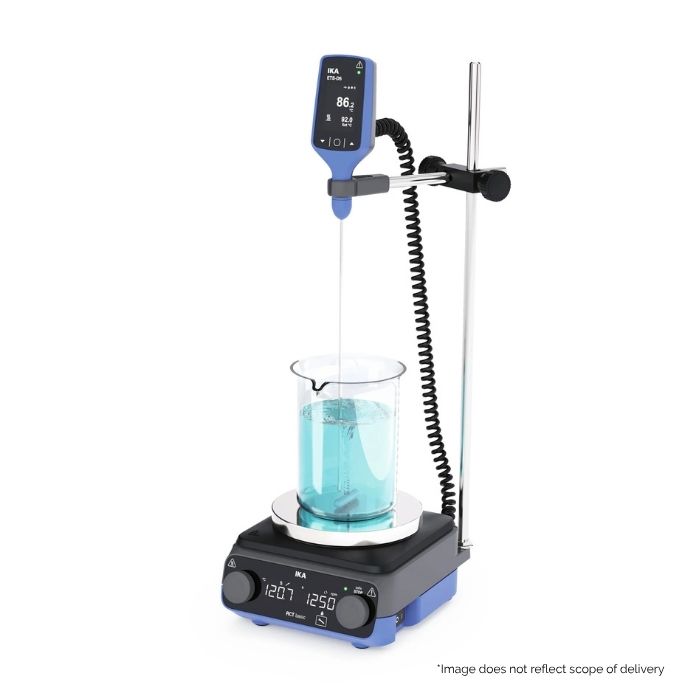

The RCT Basic ETS-D5 Package consists of the RCT Basic magnetic stirrer and the ETS-D5 electronic contact thermometer making experiments and reactions even safer.

Improved temperature control

By combining the two devices, the internal safety circuit, which is independent of the RCT Basic software, can be addressed directly by the contact thermometer. For this purpose, the maximum permissible temperature in the medium is limited independently of the set point temperature. If the value is exceeded, the heating function of the magnetic stirrer switches off via the internal safety circuit - until the device is restarted. At the same time, the stirring function is maintained to avoid boiling distortions.

The set safety temperature of the heating plate also remains available. The set temperature limitation of the ETS-D5 and the safety temperature of the hotplate are OR-linked. This means that every potential error leads to the heating being switched off. In addition, the temperature of the heating plate can be set independently of the medium. In this way, you actively influence the heating times.

Improved display

With the ETS-D5, you also enhance the display of your magnetic stirrer. You can see the set and actual value of the medium temperature at a glance with a resolution of 0.1K on the contact thermometer. The setting accuracy is also refined from 1K to 0.1K in this combination. The current hotplate temperature is also displayed on the RCT Basic.

The display of the contact thermometer can be placed at eye level. This makes it directly visible where the temperature is measured and controlled.

In addition to the RCT Basic magnetic stirrer and the ETS-D5 contact thermometer, the package also includes all necessary mounting elements.

Technical Data:

Number of stirring positions	1
Stirring quantity max. (H2O)	20L
Maximum load	25kg
Motor rating output	9W
Motor principle	Brushless DC
Direction of rotation	Right
Speed display set-value	LED
Speed display actual-value	LED
Speed adjustment	Control knob (Rotating / Pressing)
Speed range	50 - 1500rpm
Setting accuracy speed	10 rpm
Stirring bar length	20 - 80mm
Self-heating of the set-up plate by max. stirring (RT: 22°C/duration:1h)	+12K
Heat output	800W
Temperature display set-value	LED
Temperature display actual-value	LED
Temperature unit	°C
Heating temperature range	Room temp. + device self-heating - 310°C
Heat control	Control knob (Rotating / Pressing)
Display resolution	0.1K
Temperature setting range	0 - 310°C
Temperature setting resolution of heating plate	1K
Connection for ext. temperature sensor	PT1000, ETS-D5, ETS-D7, PT.Wireless
Temperature setting resolution of medium	0.1K
Operating temperature min. (with external cooling)	-20°C
Adjustable safety circuit	50 - 360°C
Set-up plate material	Aluminium alloy
Set-up plate dimensions	Ø 135mm
Timer	Yes
Timer display	LED
Time setting min.	1 sec
Time setting max.	5999 min
pH measurement	Optional (with ETS-D7, PT.Wireless)
Sensor in medium detection	Yes
Temperature measure range PT1000	-20 - 310°C
PT 1000 deviation: DIN EN 60751 KI. A	≤ ± (0.15 +0.002xITI) K
Speed deviation (no load, nominal voltage, at 1500 rpm + 25°C)	± 2%
Heating rate (1L H2O in H1500)	9K/min
Heat control accuracy of heating plate centre without vessel (at 100°C)	±5 K
Heat control accuracy with ext. PT1000 (500ml H2O in 600ml, 40mm stirring bar, 600 rpm, 50°C)	±0.5 K
Heat control accuracy with ETS-D5 (500ml H2O in 600ml, 40mm stirring bar, 600 rpm, 50°C)	±0.5 K
Heat control accuracy with ETS-D7 (500ml H2O in 600ml, 40mm stirring bar, 600 rpm, 50°C)	±0.2 K
Heat control accuracy with PT wireless (500ml H2O in 600ml, 40mm stirring bar, 600 rpm, 50°C)	±0.2 K
Permissible ambient temperature	5 - 40°C
Permissible relative humidity	80%
Protection class according to DIN EN 60529	IP 54
RS 232 interface	Yes
USB interface	USB-C
WPAN interface	Optional (USB WD)
Power input	820W
Power input standby	0.45W
Weight	2.3kg
Dimensions (W x H x D)	160 x 100 x 200mm
