Stock Code:
400.100.120

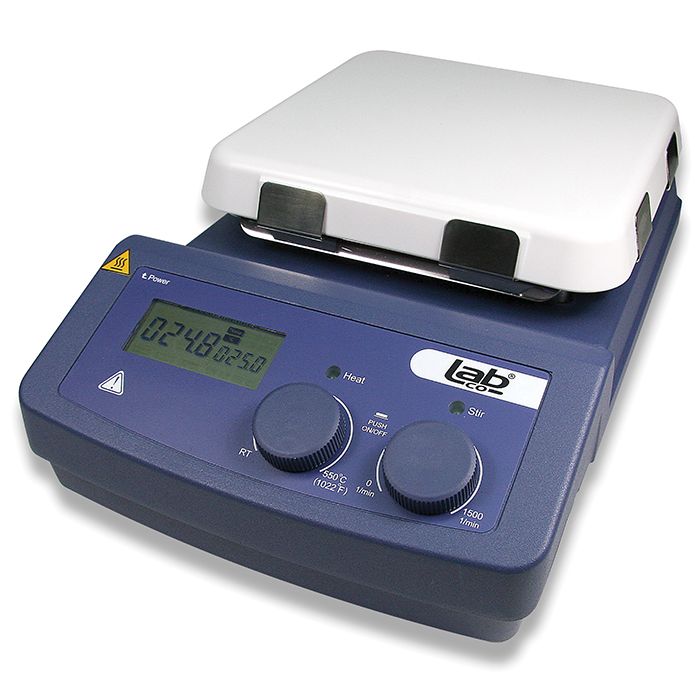

Stirrer Magnetic Hotplate 20L LabCo - Glass Ceramic Plate 184 x 184mm
Stock:
Out of Stock
Stock Arriving:
18-12-2025
Downloads
Description
Features and Benefits:
- Stirs up to 20L
- Heats up to 550C degrees
- Large square ceramic glass plate
- Resistant to corrosion & easy to clean
- HOT warning indicating residual heat
- Fixed safety circuit cuts off unit at 580C degrees
- Digital LCD displays both set & actual temperature & speed

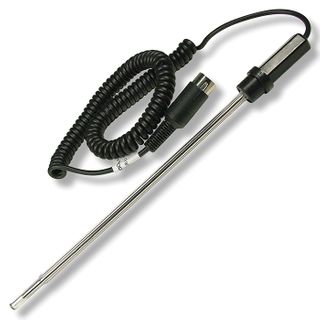

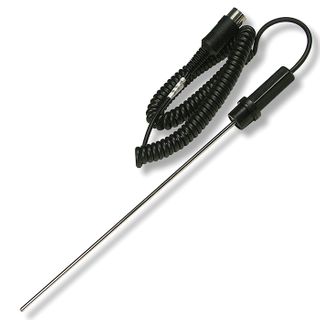

- External PT1000 temperature sensor improves accuracy to +0.2C degrees
- Automatic recognition of PT1000 once connected
- Maintenance free DC Brushless motor
Technical Data:
| Plate Dimension | 184 x 184 mm |
| Plate Material | Glass Ceramic |
| Maximum Stirring Volume | 20L |
| Maximum Magnetic Stirrer Bar Length | 80mm |
| Speed Range | 100 - 1,500 rpm |
| Display | Digital LCD |
| Stirring Positions | 1 |
| Protection Class | IP21 |
| Motor Type | DC Brushless |
| Motor Rating Input | 18W |
| Motor Rating Output | 10W |
| Power | 1050W |
| Voltage | 240V/60Hz |
| Heating Output | 1000W |
| Heating Temperature | Ambient to 550C degrees |
| Safety Temperature | 580C |
| Temperature Display Accuracy | +0.1C |
| Residual Heat Warning | Yes, > 50C |
| Dimensions (WxDxH) | 215 x 360 x 112 mm |
| Weight | 5.3Kg |
Supplied With:
- Power Cable
- User Manual
Details
-
Pack Size:EACH
-
Warranty (Months):12
