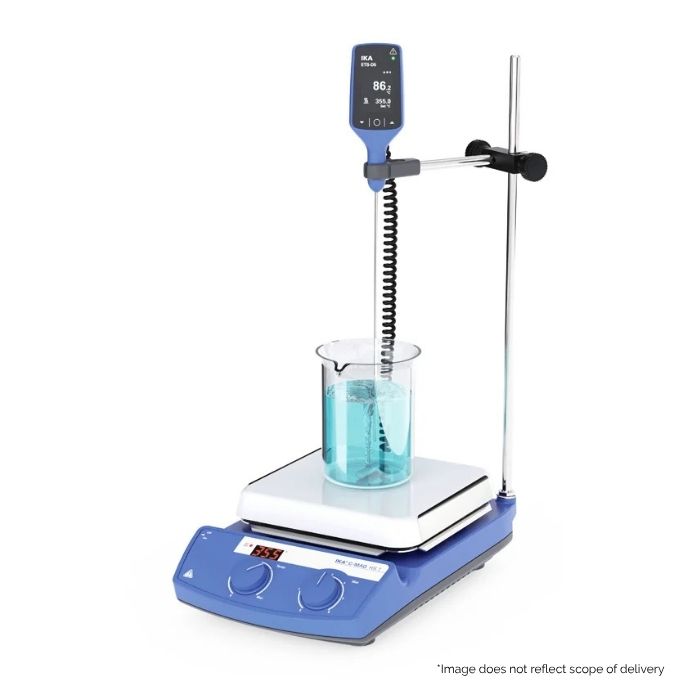

Stirrer Magnetic Hotplate IKA C-Mag HS7 Package

UOM:

EACH

Stock:

Special Order

Description

C-Mag HS 7 Package

Features and Benefits:

Magnetic stirrer with ceramic heating plate which offers excellent chemical resistance.
Powerful motor for stirring quantities of up to 10L (H2O)
Fixed safety circuit of 550°C
Hot Top indicator >> hot surface warning to prevent burns
Exact temperature setting via digital display (LED)
With a contact thermometer - ETS-D5 - enables precise temperature control
Digital error code display
Elevated control panel for protection against leaking liquids

Technical Data:

Number of stirring positions	1
Stirring quantity max. (H2O)	10L
Maximum load	15kg
Motor rating output	1.5W
Direction of rotation	Left
Speed adjustment	Scale 0 - 6
Speed range	100 - 1500 rpm
Stirring bar length max.	80mm
Self-heating of the set-up plate by max. stirring (RT:22°C/duration:1h)	+2K
Heat output	1000W
Temperature display set-value	LED
Heating temperature range	50 - 500°C
Heat control	Turning knob
Temperature setting resolution of heating plate	5K
Connection for ext. temperature sensor	ETS-D5
Fixed safety circuit	550°C
Set-up plate material	Ceramic
Set-up plate dimensions	180 x 180mm
Heating rate (1L H2O in H1500)	5K/min
Permissible ambient temperature	5 - 40°C
Permissible relative humidity	80%
Protection class according to DIN EN 60529	IP 21
Power input	1020W
Weight	5kg
Dimensions (W x H x D)	220 x 105 x 335mm
