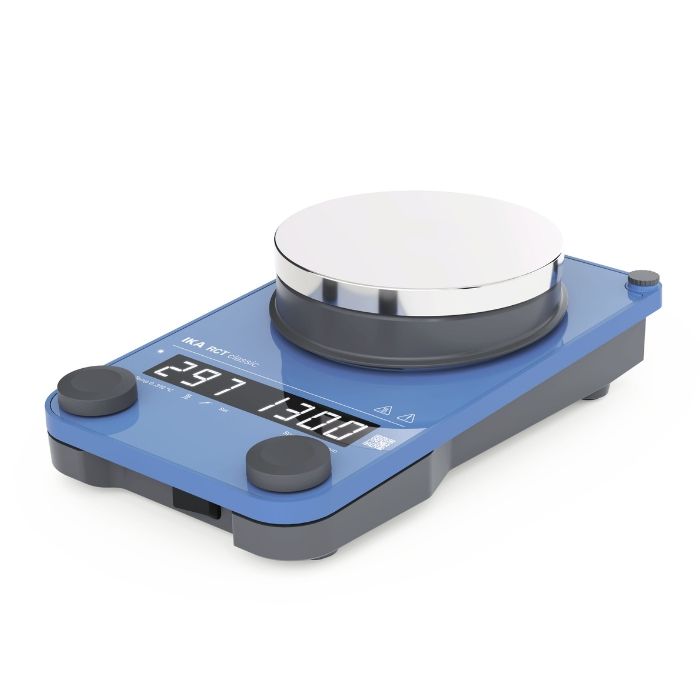

Stirrer Magnetic Hotplate IKA RCT Classic

UOM:

EACH

Stock:

Special Order

Stock Arriving:

31-08-2026

Add to Favourites

Downloads

User Manuals

Description

The RCT Classic magnetic stirrer stands for reliability, exceptionally long product lifetimes and the highest safety standards.

RCT Classic is suitable for stirring tasks up to 20L (H2O) and reaches a hotplate temperature of up to 310°C. With the connection option for an external temperature sensor (PT 1000.60 included in delivery), the temperature can be measured and controlled directly in the reaction medium.

Thanks to perfect insulation of the aluminium heating plate, maintenance-free EC motor and electronic switching power supply, RCT Classic features excellent energy efficiency as well as reduced self-heating of the heating plate during stirring operation, thus contributing to a more sustainable laboratory.

Features and Benefits:

Tempered shatterproof glass surface for optimal chemical resistance and easy cleaning
Largest display in its class with easy-to-read LED display
Illuminated symbols for displaying important status information (set and actual temperature, heating status, temperature sensor)
Easily accessible main switch on the front of the device
Safe, robust and compliant with standards

RCT Classic contains the proven safety features for IKA magnetic stirrers. In accordance with the DIN EN 61010-2-010 standard, it meets all safety requirements for laboratory equipment for heating substances and is therefore also suitable for unattended operation.

Tested and certified by TÜV SÜD according to standard IEC 61010-1 (cTÜVus)

Adjustable hotplate temperature safety circuit (with tool)

Confirmation mode (operating mode D) prevents the unintentional change of the set setpoints. A restart, the confirmation of the safety temperature is necessary.

Automatic switch-off of the temperature control function if the connected external temperature sensor is not immersed in the medium or is defective.

Enclosed design (protection class IP 42) guarantees long service life, even under extreme conditions in the laboratory

Reliable operation even with cold media. Extended temperature display down to -20°C (with external sensor)

Protected electronic connections on the back of the device

Fireproof die-cast aluminium housing with high quality and durable powder coating

DIN socket 12878 for connecting and electronic contact thermometer, e.g. ETS-D5 for high-presence temperature control.

Proven technology

Heating plate made of aluminium for optimal and homogenous heat transfer

Excellent magnetic coupling

Soft start prevents magnetic stirrer bars from breaking off during start phase

Two optimised temperature control modes ensure fast heating or precise temperature control without overshooting

Push and turn buttons for independent adjustment of the setpoints and starting/stopping of temperature and speed

Technical Data:

Number of stirring positions	1
Stirring quantity max. (H2O)	20L
Maximum load	25kg
Motor rating output	9 W
Direction of rotation	Right
Speed display set-value	LED
Speed display actual value	LED
Speed adjustment	Turning knob
Speed range	50 - 1500 rpm
Setting accuracy speed	10 rpm
Stirring bar length	20 - 80mm
Self-heating of the set up plate by max. stirring (RT:22°C/duration:1h)	+17 K
Heat output	600 W
Temperature display set value	LED
Temperature display actual value	LED
Temperature unit	°C
Heating temperature range	Room temp. + device self heating - 310°C
Heat control	Turning knob
Temperature setting range	0 - 310°C
Temperature setting resolution of heating plate	1 K
Connection for ext. temperature sensor	PT1000, ETS-D5, ETS-D6
Temperature setting resolution of medium	1 K
Adjustable safety circuit	50 - 360°C
Set up plate material	Aluminium alloy
Set up plate dimensions	Ø 135mm
Sensor in medium detection	Yes
Temperature measure range PT1000	-20 - 350°C
Speed deviation (no load, nominal voltage at 1500 rpm + 25°C)	± 2%
Heating rate (1L H2O in H1500)	6.5 K/min
Heat control accuracy of heating plate centre without vessel (at 100°C)	± 5K
Heat control accuracy with ext. PT1000 (500ml H2O in 600ml beaker, 40mm bar, 600 rpm, 50°C)	± 1K
Heat control accuracy with ETS-D5 (500ml H2O in 600ml beaker, 40mm bar, 600 rpm, 50°C)	± 0.5K
Heat control accuracy with ETS-D6 (500ml H2O in 600ml beaker, 40mm bar, 600 rpm, 50°C)	± 0.2K
Permissible ambient temperature	5 - 40°C
Permissible relative humidity	80%
Protection class according to DIN EN 60529	IP 42
USB interface	USB-B (FUT)
Power input	650 W
Power input standby	1.6 W
Weight	2.4kg
Dimensions (W x H x D)	160 x 85 x 270 mm
