Sensor Temperature IKA ETS-D5

UOM:

EACH

Stock:

Special Order

Add to Favourites

Downloads

User Manuals

Description

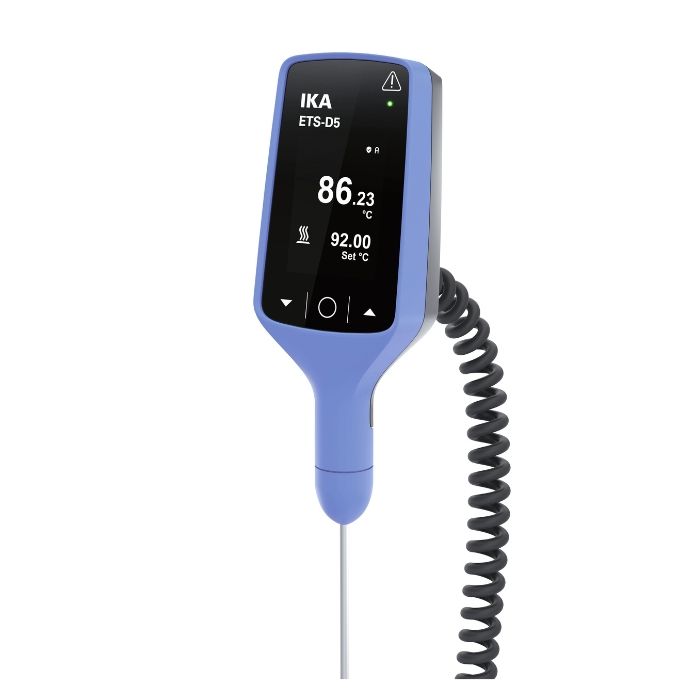

ETS-D5 Electronic Contact Thermometer

The new dimension in temperature control for the laboratory.

The new ETS-D5 Electronic Contact Thermometer redefines precision, safety and ease of use. Developed for demanding laboratory processes, it offers everything you need for reliable temperature control - and now with even more functions for maximum process reliability and flexibility.

It is an intelligent safety and control centre for your laboratory. With state-of-the-art interface technology, advanced safety features and optimised control, it offers maximum control and protection for your processes. Greater precision. Greater safety. Greater comfort.

Features and Benefits:

Proven strengths

Temperature range from -20 °C to +400°C with 0.1K resolution

High accuracy: ±0.2K + PT1000 sensor tolerance (class A)

Optimised PID control for stable temperature control without overshoot

Automatic shutdown of the magnetic stirrer in case of sensor error or exceeding the defined safety temperature - maximum process reliability

Replaceable temperature sensor (optionally with coating H66.53 or made of glass H66.51)

Can be extended with an intermediate cable

Integrated safety features

Sensor timeout - detects when the sensor is not in the medium (adjustable)

Temperature drop detection - reacts to unexpected temperature drops (adjustable)

Setpoint monitoring (Delta T) - switches off temperature control when the setpoint is exceeded by Delta T

Setpoint limitation - limits the maximum adjustable temperature

Safe temp - switched off the temperature control when the value is exceeded

In the event of a fault, the stirrer remains off - for maximum safety

Three temperature control modes for every application

Fast - fast heating

Precise - maximum accuracy

Synthesis block optimised - for perfect chemical syntheses

Adjustable heating speed in percent for sensitive samples
Convenient touch display for intuitive operation
USB-C interface for fast and easy data transfer to PC

Technical Data:

Temperature measuring range min. (with H62 sensor)	-20°C
Temperature measuring range max. (with H62 sensor)	400°C
Temperature measurement resolution	0.1K
Accuracy of temperature measurement (DIN IEC 751 Class A)	±0.2 + tolerance PT1000 K
Set temperature resolution	0.1K
Display	TFT
Immersion depth min.	20mm
Touch function	Yes
Acoustic warning function	Yes
Heat control accuracy (500ml H2O in 600ml beaker, 40mm stirring bar, 600rpm, 50°C)	±0.5K
Changeable temperature sensor	H62.51
Thermometer connector type (to main device)	DIN 45322 (MAS6)
Status LED	Yes
Temperature operating mode	A, B, C, D
Temperature control mode	Precise, Fast, Block
Sensor type	PT1000 (DIN IEC 751 Class A)
Permissible ambient temperature	5 - 40°C
Permissible relative humidity	80%
Protection class according to DIN EN 60529	IP 54
USB interface	USB-C
Weight	156grams
Dimensions (W x H x D)	52 x 36 x 385mm
