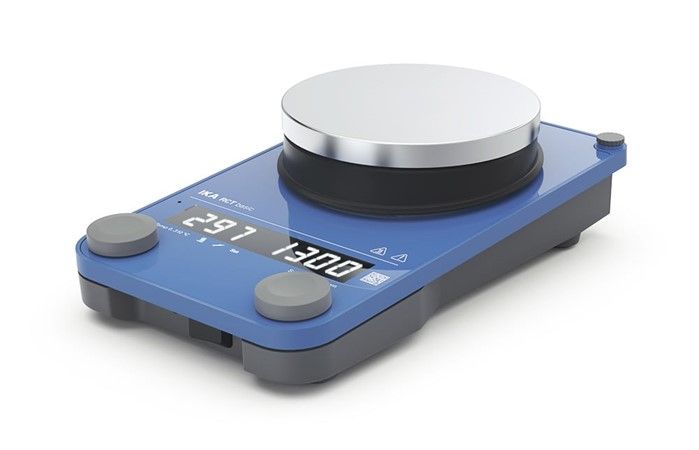

Stirrer Magnetic Hotplate IKA RCT Basic

Stock:

Out of Stock

Stock Arriving:

17-05-2024

Add to Favourites

Downloads

Technical Data Sheet

Description

The RCT basic is suitable for stirring tasks up to 20L (H2O), and reaches a hotplate temperature of up to 310°C. With the connection option for an external temperature sensor (PT 1000.60 included in delivery), the temperature can be measured and controlled directly in the reaction medium.

Thanks to perfect insulation of the aluminum heating plate, maintenance-free EC motor and electronic switching power supply, the RCT basic features excellent energy efficiency as well as reduced self-heating of the heating plate during stirring operation, thus contributing to a more sustainable laboratory.

The latest generation of RCT basic presents itself in proven quality and with numerous new features

Tempered shatterproof glass surface for optimal chemical resistance and easy cleaning
Largest display in its class with easy-to-read LED display
Illuminated symbols for displaying important status information (set and actual temperature, heating status, temperature sensor
USB and RS232 interface for control or documentation of the test parameters via a PC
Compatible with labworldsoft® laboratory software
QR code for quick access to device information, accessories, downloads and extended warranty
Easily accessible main switch on the front of the device

Proven technology

Heating plate made of aluminum for optimal and homogeneous heat transfer
Excellent magnetic coupling
Soft start prevents magnetic stir bars from breaking off during the start phase
Two optimized temperature control modes ensure fast heating or precise temperature control without overshooting
Push and turn buttons for independent adjustment of the set points and starting / stopping of temperature and speed

Safe, robust and compliant with standards
In accordance with the DIN EN 61010-2-010 standard, it meets all safety requirements for laboratory equipment for heating substances and is therefore also suitable for unattended operation.


Plate Diameter	135mm
Plate Material	Aluminium Alloy
Stirring Volume	20L (H2O)
Speed Range	50 - 1,500rpm
Stirrer Bar Length	20 - 80mm
Stirring Display	LED
Temperature Display	LED
Temp Setting Range	0 - 310c
Heating Temp Range	Ambient - 310c
Dimensions	160 x 85 x 270mm (WxHxD)
Weight	2.5kg
