Stock Code:
0025000637I

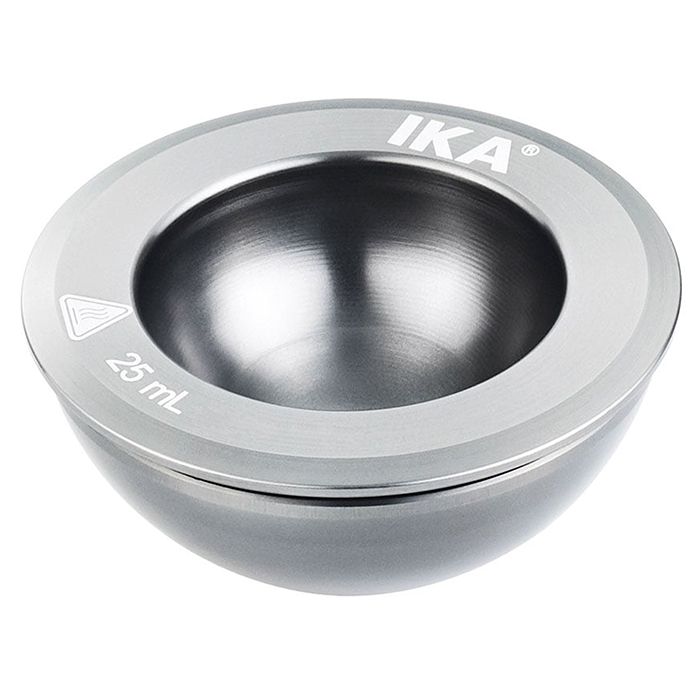

Flask Inlay 25mL IKA H135.202 - Round Bottom
Stock:
Out of Stock
Description
**EUD REQUIRED**
Note: Either H135.20 flask carrier 100mL without handle or H135.21 flask carrier 100mL with handle is required to use the flask insert.
Technical Data:
| Outer diameter | 69mm |
| Bottom shape | Spherical |
| Useable volume max. | 25mL |
| Number of holes | 1 |
| Hole diameter | 43.5mm |
| Hole depth | 20.8mm |
| Hole shape | Spherical mm |
| Working temperature max. | 300c |
| Material in contact with medium | Aluminium anodised |
| Width | 69mm |
| Height | 31.5mm |
Details
-
Pack Size:EACH
-
EUD:Yes (an End User Declaration is required to purchase this item)
