Evaporator Rotary IKA RV10 digital pro V-C Double Complete Package EUD REQUIRED

UOM:

EACH

Stock:

Special Order

Add to Favourites

Description

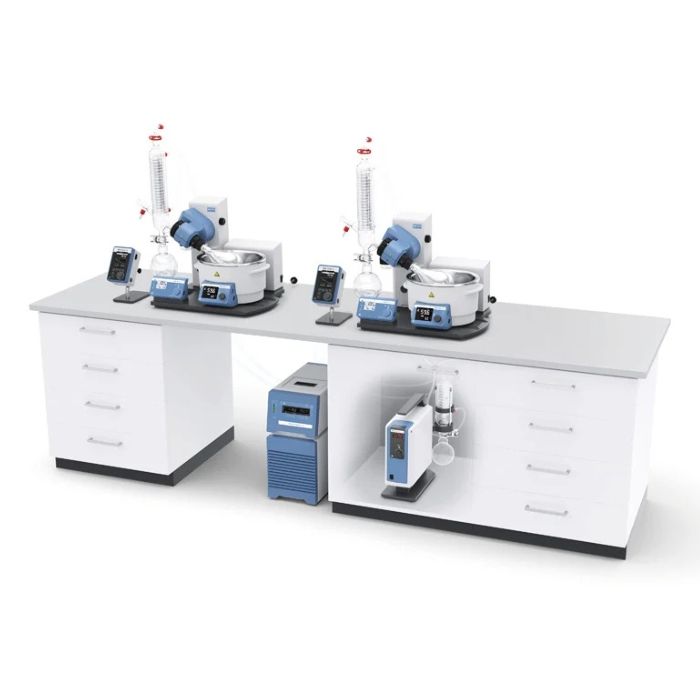

The RV 10 digital pro V-C double Complete package is the complete solution for your rotary evaporator setup with two rotary evaporators.

In addition to the two RV 10 digital V-C rotary evaporators both including the HB digital heating bath with a heating temperature range of RT to 180°C and a highly efficient vertical glass condenser set with 1L receiver and evaporator flask, the package includes the VACSTAR digital vacuum pump, two VC 10 pro vacuum controllers and the RC 2 GREEN basic recirculating chiller. All components and connections required for operation are included.

RV 10 digital is a robust and reliable lab companion. Its optimised bath volume allows for fast heat-up times. The condenser unit has special designed glass tubes that utilise the 1500cm² surface extremely efficiently. That's why the RV 10 digital delivers reliable and reproducible process results that are usually reserved for more costly systems. Additional features such as smooth start, left-right interval or timer function capability support the user in their daily lab work. Another important aspect of the RV 10 digital are the sophisticated safety features. The motorised lift has an automated lift-out function in case of power outage to prevent superheating of the solvent. Safety temperature circuits can be set individually. Dry-run protection, adjustable lower end stop and lock function of bath setting complete the line of safety features. The RS 232 interface allows for remote control via the software labworldsoft®. The heating bath is controlled from the main unit via the IR interface.

The included VACSTAR digital vacuum pump is extremely space-saving and achieves a minimum vacuum of 2 mbar. One vacuum source is sufficient to supply both rotary evaporators. Controlling is done with the help of the two included vacuum controllers VC 10 pro.

The powerful and at the same time energy-efficient RC 2 GREEN basic recirculating chiller is suitable for cooling tasks down to -30°C. The demand and speed-controlled compressor, which is operated with natural refrigerant R290, achieves a cooling capacity of 800W with minimum energy input.

Technical Data:

RV 10 digital V-C
Type of cooling	Vertical condenser
Cooling surface	1500cm²
Speed range	5 - 280rpm
Reversible direction of motor	Yes
Lift	Motor
Stroke	140mm
Heating temperature range	Room temp. - 180°C
Heat output	1350W
Set temperature resolution	1K
Filling volume max.	4L
Timer	Yes
Dimension (WxHxD)	500 x 430 x 440mm
Weight	32.67kg
Permissible ambient temperature	5 - 40°C
Permissible relative humidity	80%
Protection class	IP 20
RS 232 interface	Yes
Frequency	50/60Hz
Power input	1400W

VACSTAR digital
Pump rate max. (50/60Hz)	1.32 m³/h
Pump rate max. (50/60Hz)	22L/min
Final pressure	2mbar
Suction levels	4
Cylinder	4
Connection diameter suction side	8mm
Connection diameter pressure side	8mm
Input pressure	2 - 1030mbar
Two-point control	Yes
Analog speed vacuum control	Yes
Speed adjustment	Turning knob
Speed range	285 - 1200rpm
Display	LED
Noise at low pressure	54 dB(A)
Material in contact with medium	PTFE, FFPM, PPS, NBR
Housing material	alu-cast coating / thermoplastic polymer
Dimensions (WxHxD)	150 x 375 x 370mm
Weight	11.5kg
Permissible ambient temperature	5 - 40°C
Permissible relative humidity	80% (up to 31°C), decreasing linearly to max. 50 (@40°C)
Protection class	IP 20
USB interface	USB-B
Analog input	Yes
Frequency	50/60Hz
Power input	120W
Power input standby	1.5W

VC 10 pro
Connection diameter suction side	8mm
Connection diameter pressure side	8mm
Connection diameter venting side	8mm
Input pressure	1 - 1050 mbar
Boiling point detection	Yes
Solvent library	Yes
Two-point control	Yes
Analog speed vacuum control	Yes
Display	TFT
Pressure unit / scale	mbar, hPa, mmHg, Torr
Vacuum sensor	Yes
Vacuum sensor type	Ceramic A\|2O3
Pressure max. for pressure sensor	1.6 bar
Measurement range (absolute)	1 - 1100 mbar
Control range	1 - 1100 mbar
Resolution pressure	1 mbar
Measurement uncertainty	1 mbar
Medium temperature (gas)	5 - 40°C
Vacuum valve	Yes
Venting valve	Yes
Connection for ext. temperature sensor	PT1000
Temperature unit	°C / °F
Temperature measurement range	-10 - 200°C
Temperature measurement resolution	1K
Accuracy of temperature measurement	±1K
Timer	Yes
Time setting min.	1s
Time setting max.	6000min
Vacuum speed control interface	VACSTAR
Material in contact with medium	A\|2O3, PTFE, FPM, PPS
Housing material	PBT
Fastening	stand / clamp
Fastening diameter	16mm
Mode automatic	Yes
Mode manual	Yes
Mode pump %	Yes
Mode program	Yes
Graph function	Yes
Chiller control	Yes
Vacuum leakage test	Yes
Dimensions (WxHxD)	95 x 150 x 110mm
Weight	1.5kg
Permissible ambient temperature	5 - 40°C
Permissible relative humidity	80%
Protection class	IP 20
RS 232 interface	Yes
USB interface	Micro-USB
Frequency	50/60Hz
Power input	24W
Power input standby	2W

RC 2 GREEN basic
Cooling agent	R290
Cooling agent quantity	69g
Cooling agent pressure max.	21bar
Cooling capacity (@20°C)	800W
Cooling capacity (@10°C)	700W
Cooling capacity (@0°C)	500W
Cooling capacity (@-10°C)	400W
Cooling capacity (@-20°C)	200W
Cooling capacity (@-30°C)	90W
Working temperature	-30°C - room temperature
Operating temperature min.	-30°C
Operating temperature max. (with external heating)	70°C
Temperature display	Yes
Temperature stability DIN 12876 (@-10°C)	±0.15K
Working temperature sensor	PT100
Working temperature sensor	PT1000
Working temperature display	LED
Safety temperature display	LED
Display resolution	0.1K
Set temperature resolution	0.1K
Warning function optical	Yes
Warning function acoustic	Yes
Warning function excess temperature	Yes
Sub-level protection	Yes
Over-level protection	Yes
Filling volume	1.4 - 4.0L
Pump type	Pressure- / suction pump
Pump pressure max. (0 litres discharge flow)	0.5 bar
Pressure pump (suction side) (0 litre flow)	0.25 bar
Flow rate max. (0 bar back pressure)	21L/min
Calibration option	Yes
Pump connection	M16x1
Technical data complies with the standard	DIN 12876
Noise level	61dB(A)
Dimensions (WxHxD)	220 x 475 x 525mm
Weight	25.5kg
Permissible ambient temperature	5 - 32°C
Permissible relative humidity	80%
Protection class acc. DIN EN 60529	IP 21
RS 232 interface	Yes
USB interface	Micro-USB
Frequency	50/60Hz
Power	350W
