Evaporator Rotary IKA RV10 auto pro V EUD REQUIRED

UOM:

EACH

Stock:

Special Order

Add to Favourites

Description

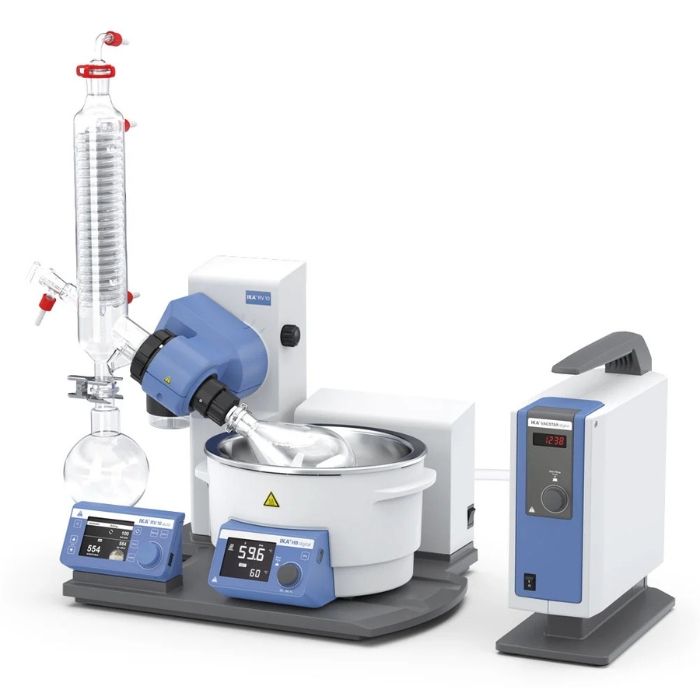

The completely revised RV 10 auto is the flagship of the IKA rotary evaporator product line.

Its features include an innovative handling concept with a bright, high-contrast, TFT, colour-graphic control panel, an integrated vacuum controller, cooling water monitoring and mature safety standards. The RV 10 auto offer all properties required for efficient, safe and cost-effective operations. These include automatic control of the vacuum and cooling water volume. its intuitive handling concept quickly leads its users to their desired results in every application. With specially designed glass guides, the condenser makes extremely efficient use of the 1500cm² cooling surface. Thanks to its extended ramp programming capability, the RV 10 auto allows users to carry out customised procedures. Other innovative features, such as smooth start, interval mode, right-left operation in interval mode or the timer function for time-lapse tests, makes everyday work in the laboratory much easier.

Safety is ensured by the motorised lift with safety-stop function that automatically lifts the evaporation flask out of the heating bath in case of power failure. Additional safety for users is provided by individually adjustable temperature safety circuits, protection against boiling dry, adjustable end-point recognition to prevent glass breakage and a locking function.

The USB port or the RS 232 interface enable remote control with the IKA labworldsoft® software package and an update option with the Firmware Update Tool. The new IKA VACSTAR digital included is controlled directly from the drive unit of the RV 10 auto via the data cable provided.

The RV 10 auto comes complete with vacuum hoses and hose connectors for you in-house cooling water supply.

Features and Benefits:

4L heating bath with heating temperature range of RT - 180°C
automatic boiling point detection
integrated vacuum controller
integrated solvent library with 40 preset solvents and expansion option
bright, high-contrast, TFT, colour-graphic control panel
universal safety heating bath
optimised heating bath volume for rapid achievement of working temperature
heating bath with ergonomic handles
temperature safety circuit
boil-dry protection
condenser with 1500cm² cooling surface and low space requirements
intuitive handling concept with simple menu navigation
programming options for up to ten individual procedures
smooth start
right or left rotation
timer function
end-point recognition
push-off mechanism for tightly fitting flasks
digital interfaces: USB port and RS 232 interface for remote control
multi-language operating system
automatic cooling water management
automatic ventilation
automatic heating bath management

Technical Data:

Type of cooling	Vertical condenser
Cooling surface	1500cm²
Speed range	5 - 300rpm
Reversible direction of rotation	Yes
Speed tolerance set rotation speed < 100rpm	±1 rpm
Speed tolerance set rotation speed > 100rpm	±1%
Lift	Motor
Stroke	140mm
Heating temperature range	Room temp. - 180°C
Heat output	1350W
Set temperature resolution	1K
Filling volume max.	4L
Vacuum controller integration	Yes
Measurement accuracy +/-	1 mbar
Timer	Yes
Vacuum pump	VACSTAR digital
Dimensions (WxHxD)	500 x 430 x 440mm
Weight	52.34kg
Permissible ambient temperature	5 - 40°C
Permissible relative humidity	80%
Protection class	IP 20
RS 232 interface	Yes
USB interface	Micro-USB
Analog output	Yes
Frequency	50/60Hz
Power input	100W
Power input standby	3.3W
