Pump Vacuum Membrane IKA

Stock:

Out of Stock

Add to Favourites

Downloads

User Manuals

Description

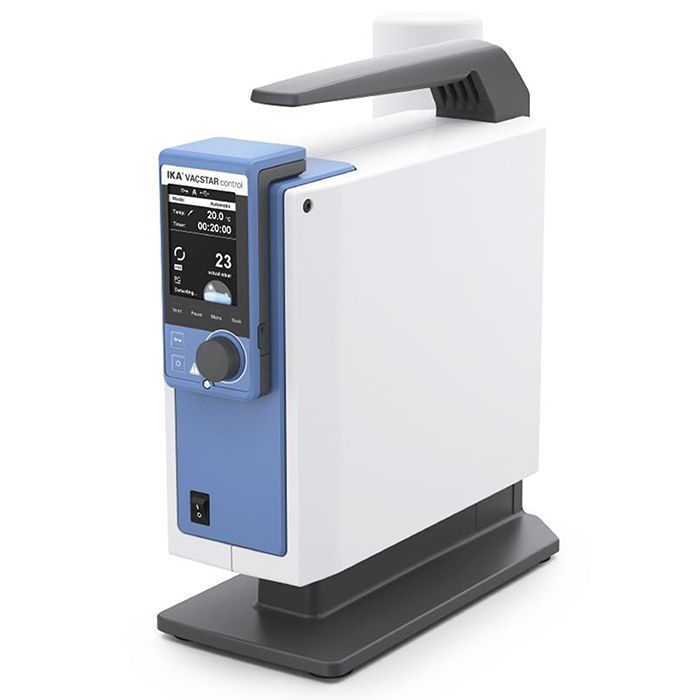

Separation, filtration, removal: The VACSTAR dry 4-chamber membrane vacuum pump is powerful, resistant to chemicals and low-maintenance. VACSTAR control is the ideal system with its integrated vacuum controller and removable display. The controller offers a suitable mode for the desired process: from automatic to manual operation, right through to pumping or an evacuation and cleaning function.

High-performance suction

VACSTAR has an excellent suction performance, with its 22 l/min at a minimum of 2 mbar.

Integrated vacuum controller with removable controller (WiCo)

Depending on the application, you can easily select your operating mode either by using the intuitive operator menu or by remote control.

For additional safety for users and environment, we recommend using the VSE 1 vacuum safety emission condenser, which prevents solvents from being released into the room air. The VSE 1 is available as accessory.

Technical Data:

Pump rate max	1.32m3 / h
Pump rate max	22L/min
Final pressure without gas ballast	2mbar
Suction levels	4
Cylinder	4
Connection diameter suction side	8mm
Connection diameter pressure side	8mm
Input pressure	2 - 1,030 mbar
Boiling point detection	Yes
Solvent library	Yes
Analog speed vacuum control	Yes
Speed adjustment	Turning knob
Speed range	285 - 1,200rpm
Display	TFT
Pressure unit / scale	mbar, hPa, mmHg, Torr
Vacuum sensor	Yes
Vacuum sensor type	Ceramic AL203
Pressure max. for pressure sensor	1.2bar
Measurement range absolute	1 - 1,030mbar
Control range	1 - 1,030mbar
Resolution pressure	1mbar
measurement uncertainty	1mbar
Venting valve	Yes
Condensate trap	Yes
Emission condenser	Yes
Timer	Yes
Noise at low pressure	54dB(A)
Material in contact with medium	Al203, PTFE, FPM, PPS
Housing material	alu-cast coating / thermoplastic polymer
Mode automatic	Yes
Mode manual	Yes
Mode pump %	Yes
Mode program	Yes
Dimensions (WxHxD)	270 x 435 x 500mm
Weight	14kg
RS 232 Interface	Yes
USB interface	Yes
