Evaporator Rotary IKA RV10 auto pro V-C Complete Package EUD REQUIRED

UOM:

EACH

Stock:

Special Order

Add to Favourites

Description

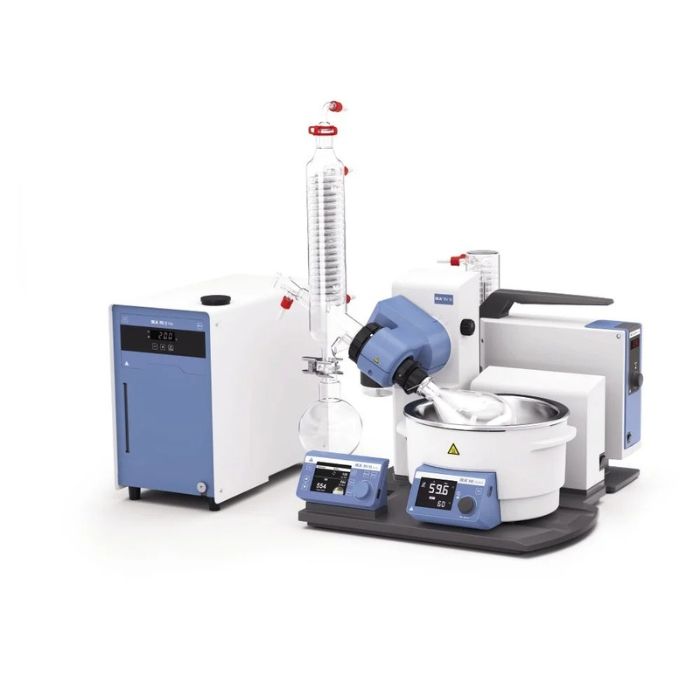

The RV 10 auto pro V-C Complete package is the complete solution for your rotary evaporator setup.

In addition to the rotary evaporator RV 10 auto, the package includes the heating bath HB digital with a capacity of 4 litres and a heating temperature range of RT to 180°C, the vacuum pump VACSTAR digital and the recirculating chiller RC 2 lite. All components and connections required for operation are included.

The RV 10 auto is the flagship of the IKA rotary evaporator product line. Among other features, it impresses with its innovative and intuitive operation via brilliant TFT colour graphic display, an integrated vacuum controller, cooling water monitoring and sophisticated safety standards. The RV 10 auto offers all characteristics for efficient, safe and economical operation. This includes the automatic regulation of the vacuum and the amount of cooling water. The individually adjustable cleaning cycle of the vacuum controller reduces the maintenance interval and at the same time extends the service life of the system.

Thanks to the specially designed glass guides, the transparently coated vertical condenser with 3 cooling coils uses the cooling surface of 1500cm² extremely efficiently. The RV 10 auto allows the user to carry out individual processes via the extended programming of ramps. Other innovative features such as soft start, clockwise and anticlockwise rotation in intermittent operation or the timer function for controlling time sequences make everyday laboratory work easier. Safety is ensured by the motorised lift with safety-stop function. In the event of power failure, it automatically lifts the evaporator flask out of the heating bath. In addition, individually adjustable safety temperature circuits, dry run protection, adjustable end position detection to prevent glass breakage, coated glass sets and locking function ensure user safety. The USB or RS 232 interface allows remote control using the IKA software labworldsoft® and the option of updating using the Firmware Update Tool.

The included vacuum pump VACSTAR digital is extremely space-spacing and achieves a minimum vacuum of 2 mbar. It is controlled directly by the drive unit RV 10 auto using the data cable supplied and enables automatic boiling point detection.

The compact recirculating chiller RC 2 lite with a strong 400 watt cooling capacity and a powerful pressure and suction pump (0.35 bar) is designed for simple cooling tasks down to -10°C. The easily accessible and easy to clean mesh filter made of stainless steel ensures consistently high cooling performance for years. Thanks to the natural refrigerant R290, the RC 2 lite is particularly environmentally friendly and well prepared for the future.

Technical Data:

RV 10 auto pro V-C
Type of cooling	Vertical condenser
Cooling surface	1500cm²
Speed range	5 - 300rpm
Reversible direction of motor	Yes
Speed tolerance set rotation speed <100rpm	±1 rpm
Speed tolerance set rotation speed > 100 rpm	±1%
Lift	Motor
Stroke	140mm
Heating temperature range	Room temp. - 180°C
Heat output	1350W
Set temperature resolution	1K
Filling volume max.	4L
Measurement accuracy +/-	1 mbar
Vacuum controller integrated	Yes
Timer	Yes
Dimension (WxHxD)	500 x 430 x 440mm
Weight	52.65kg
Permissible ambient temperature	5 - 40°C
Permissible relative humidity	80%
Protection class	IP 20
RS 232 interface	Yes
USB interface	Micro-USB
Frequency	50/60Hz
Power input	100W
Power input standby	3.3W

RV 10.10 Glassware Vertical Coated
Type of cooling	Vertical
Cooling surface	1500cm²
Weight	1.66kg

VACSTAR digtal
Pump rate max. (50/60Hz)	1.32 m³/h
Pump rate max. (50/60Hz)	22L/min
Final pressure	2mbar
Suction levels	4
Cylinder	4
Connection diameter suction side	8mm
Connection diameter pressure side	8mm
Input pressure	2 - 1030mbar
Two-point control	Yes
Analog speed vacuum control	Yes
Speed adjustment	Turning knob
Speed range	285 - 1200rpm
Display	LED
Noise at low pressure	54 dB(A)
Material in contact with medium	PTFE, FFPM, PPS, NBR
Housing material	alu-cast coating / thermoplastic polymer
Dimensions (WxHxD)	150 x 375 x 370mm
Weight	11.5kg
Permissible ambient temperature	5 - 40°C
Permissible relative humidity	80% (up to 31°C), decreasing linearly to max. 50 (@40°C)
Protection class	IP 20
USB interface	USB-B
Analog input	Yes
Frequency	50/60Hz
Power input	120W
Power input standby	1.5W

H.SI.8 Tube
Hose set	DN 8 (2 x 1.5m)
Material	Silicon
Temperature range	-30 - 180°C
Max. operating pressure	Depressurised operation
⌀ Outer	12mm
⌀ inner	8mm
Chemical resistance	Water, ethylene glycol, mineral oil, ethanol

RV 10.70 Vapor tube (NS 29/32)
Evaporation flask size max.	3L
Flask content max.	1.5kg
Load on standard ground joint max.	2.5kg
Speed at full load max.	320rpm

RC 2 lite
Class designation acc. DIN 12876	I
Identification acc. DIN 12876	NFL
Cooling agent	R290
Cooling agent quantity	76g
Cooling agent pressure max.	21bar
Cooling capacity (@20°C)	400W
Cooling capacity (@10°C)	350W
Cooling capacity (@0°C)	250W
Cooling capacity (@-10°C)	140W
Working temperature	-10°C - room temperature
Operating temperature min.	-10°C
Operating temperature max. (with external heating)	70°C
Temperature display	Yes
Temperature control	PID
Working temperature sensor	PT1000
Working temperature display	LED
Temperature stability DIN 12876	±0.5K
Display resolution	0.1K
Set temperature resolution	0.1K
Filling volume	1 - 3.5L
Pump type	Pressure- / suction pump
Pump pressure max. (0 litres discharge flow)	0.35 bar
Pressure pump (suction side) (0 litre flow)	0.15 bar
Flow rate max. (0 bar back pressure)	18L/min
Pump connection	M16x1
Permissible ON time	100%
Noise level	51dB(A)
Dimensions (WxHxD)	225 x 385 x 430mm
Weight	24.5kg
Permissible ambient temperature	5 - 32°C
Permissible relative humidity	80%
Protection class acc. DIN EN 60529	IP 21
RS 232 interface	Yes
USB interface	USB-B
Frequency	50/60Hz
Power	250W
