Evaporator Rotary IKA RV3 Starter Solution V Complete Package EUD REQUIRED

UOM:

EACH

Stock:

Special Order

Add to Favourites

Description

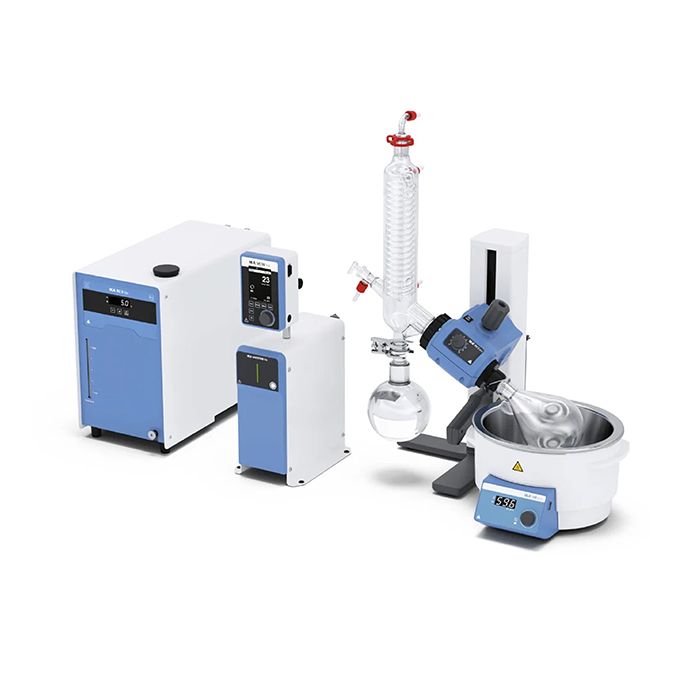

The RV 3 Starter Solution is the cost-effective complete package for your rotary evaporator setup.

In addition to the rotary evaporator RV 3 V, the package includes the HB eco heating bath with a capacity of 4 litres and a heating temperature range of R.T. to 99°C, a highly efficient vertical glass condenser set with 1L receiver and evaporator flask, as well as the VACSTAR lite vacuum pump with VC 10 lite vacuum controller and the RC 2 lite recirculating chiller. All components and connections required for operation are included.

The RV 3 rotary evaporator is the ideal entry-level model of the IKA rotary evaporator portfolio. It finds a multitude of uses in the chemical, pharmaceutical and biotechnology industries, in research and development, in manufacturing and quality assurance, in laboratories and in plant construction. Thanks to specially designed glass guides, the condenser makes extremely efficient use of the 1500cm² cooling surface.

The included VACSTAR lite vacuum pump is extremely space saving and achieves a minimum vacuum of 9 mbar. It is controlled by the supplied VC 10 lite vacuum controller. In addition to controlling the recirculating chiller, the controller also enables manual setting of the vacuum as well as program-controlled operation.

The compact RC 2 lite recirculating chiller with strong 400-watt cooling capacity and a powerful pressure and suction pump (0.35 bar) is designed for simple cooling tasks down to -10°C. The easily accessible and easy to clean mesh filter made of stainless steel ensures a consistently high cooling performance for years. Thanks to the natural refrigerant R290, the RC 2 lite is particularly environmentally friendly and well prepared for the future.

Technical Data:

RV 3 FLEX
Type of cooling	without condenser
Speed range	20 - 300rpm
Speed tolerance set rotation speed <100rpm	±1 rpm
Speed tolerance set rotation speed >100rpm	±1 %
Lift	Manual
Stroke	150mm
Heating temperature range	Room temp. - 99°C
Dimension (WxHxD)	440 x 530 x 330mm
Weight	12kg
Permissible ambient temperature	5 - 40°C
Permissible relative humidity	80%
Protection class	IP 20
Frequency	50/60Hz
Power	1400W

RV 10.1 Glassware Vertical
Type of cooling	Vertical
Cooling surface	1500cm²
Weight	1.66kg

VC 10 lite
Connection diameter suction side	8mm
Connection diameter pressure side	8mm
Connection diameter venting side	8mm
Input pressure	1 - 1050mbar
Analogue speed vacuum control	Yes
Display	TFT
Pressure unit / scale	mbar, hPa, mmHg, Torr
Vacuum sensor	Yes
Vacuum sensor type	Ceramic A\|203
Pressure max. for pressure sensor	1.6 bar
Measurement range (absolute)	1 - 1100 mbar
Control range	1 - 1100 mbar
Resolution pressure	1 mbar
Measurement uncertainty	1 mbar
Medium temperature (gas)	5 - 40°C
Venting valve	Yes
Temperature measuring range max.	200°C
Temperature measurement resolution	1K
Accuracy of temperature measurement	±1K
Timer	YEs
Time setting min.	1s
Time setting max.	6000min
Vacuum speed control interface	VACSTAR
Material in contact with medium	A\|203, PTFE, FPM, PPS
Housing material	PBT
Fastening	Stand/clamp
Fastening diameter	16mm
Mode manual	Yes
Mode program	Yes
Graph function	Yes
Chiller control	Yes
Vacuum leakage test	Yes
Dimensions (WxHxD)	95 x 150 x 110mm
Weight	1.28kg
Permissible ambient temperature	5-40°C
Permissible relative humidity	80%
Protection class	IP 20
RS 232 interface	Yes
USB interface	Micro-USB
Frequency	50/60Hz
Power input	24W
Power input standby	2W

VACSTAR lite
Pump rate max. (50/60Hz)	1 m³/h
Pump rate max. (50/60Hz)	16.67L/min
Final pressure	9mbar
Suction levels	2
Cylinder	2
Connection diameter suction side	8mm
Connection diameter pressure side	8mm
Input pressure	10 - 1030mbar
Speed range	285 - 1100rpm
Speed (50Hz)	1100rpm
Speed (60Hz)	1100rpm
Nominal speed	1100rpm
Display	LED
Noise at low pressure	54 dB(A)
Material in contact with medium	PTFE, FFPM, PPS, NBR
Housing material	alu-cast coating / thermoplastic polymer
Dimensions (WxHxD)	115 x 292 x 280mm
Weight	8.5kg
Permissible ambient temperature	5 - 40°C
Permissible relative humidity	80% (up to 31°C), decreasing linearly to max. 50 (@40°C)
Protection class	IP 20
USB interface	USB-C
Analog input	Yes
Frequency	50/60Hz
Power input	120W
Power input standby	1.5W
Fuse	2x T4A 250V

RC 2 lite
Class designation acc. DIN 12876	I
Identification acc. DIN 12876	NFL
Cooling agent	R290
Cooling agent quantity	76g
Cooling agent pressure max.	21bar
Cooling capacity (@20°C)	400W
Cooling capacity (@20°C)	350W
Cooling capacity (@0°C)	250W
Cooling capacity (@-10°C)	140W
Working temperature	-10°C - room temperature
Operating temperature min.	-10°C
Operating temperature max. (with external heating)	70°C
Temperature display	Yes
Temperature control	PID
Working temperature sensor	PT1000
Working temperature display	LED
Temperature stability DIN 12876	±0.5K
Display resolution	0.1K
Set temperature resolution	0.1K
Filling volume	1 - 3.5L
Pump type	Pressure- / suction pump
Pump pressure max. (0 litres discharge flow)	0.35 bar
Pressure pump (suction side) (0 litre flow)	0.15 bar
Flow rate max. (0 bar back pressure)	18L/min
Pump connection	M16x1
Permissible ON time	100%
Noise level	51dB(A)
Dimensions (WxHxD)	225 x 385 x 430mm
Weight	24.5kg
Permissible ambient temperature	5 - 32°C
Permissible relative humidity	80%
Protection class acc. DIN EN 60529	IP 21
RS 232 interface	Yes
USB interface	USB-B
Frequency	50/60Hz
Power	250W
