Evaporator Rotary IKA RV10 digital pro V-C Complete Package EUD REQUIRED

UOM:

EACH

Stock:

Special Order

Add to Favourites

Description

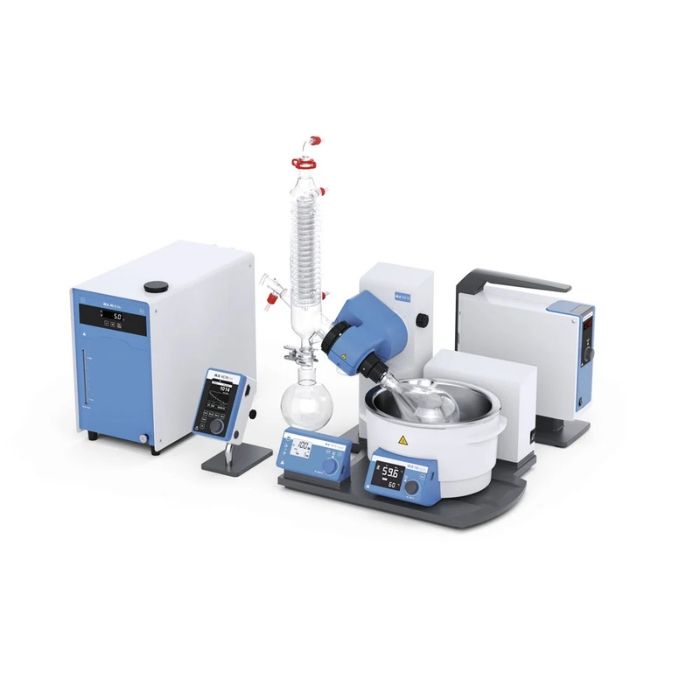

The RV 10 digital pro V-C Complete package is the complete solution for your rotary evaporator setup.

In addition to the RV 10 digital V-C rotary evaporator, the package includes the HB digital heating bath with a capacity of 4 litres and a heating temperature range of RT to 180°C, a highly efficient vertical coated glass condenser set with 1L receiver and evaporator flask, as well as the VACSTAR digital vacuum pump with VC 10 lite vacuum controller and the RC 2 lite recirculating chiller. All components and connectors required for operation are included.

RV 10 digital is a robust and reliable lab companion. Its optimised bath volume allows for fast heat-up times. The condenser unit has specially designed glass tubes that utilise the 1500cm² surface extremely efficiently. That's why the RV 10 digital delivers reliable and reproducible process results that are usually reserved for more costly systems. Additional features such as smooth start, left-right interval or timer function capability support the user in their daily lab work. Another important aspect of the RV 10 digital are the sophisticated safety features. The motorised lift has an automated lift-out function in case of power outage to prevent superheating of the solvent. Safety temperature circuits can be set individually. Dry-run protection, adjustable lower end stop and lock function of bath setting complete the line of safety features. The RS 232 interface allows for remote control via the software labworldsoft®. The heating bath is controlled from the main unit via the IR interface.

The included VACSTAR digital vacuum pump is extremely space-saving and achieves a minimum vacuum of 2 mbar. It is controlled by the supplied VC 10 lite vacuum controller. In addition to controlling the recirculating chiller, the controller also enables manual setting of the vacuum as well as program-controlled operation.

The compact RC 2 lite recirculating chiller with a strong 400 watt cooling capacity and a powerful pressure and suction pump (0.35 bar) is designed for simple cooling tasks down to -10°C. The easily accessible and easy to clean mesh filter made of stainless steel ensures a consistently high cooling performance for years. Thanks to the natural refrigerant R290, the RC 2 lite is environmentally friendly and well prepared for the future.

Technical Data:

RV 10 digital FLEX
Type of cooling	without condenser
Speed range	5 - 280rpm
Reversible direction of motor	Yes
Lift	Motor
Stroke	140mm
Heating temperature range	Room temp. - 180°C
Heat output	1350W
Set temperature resolution	1K
Filling volume max.	4L
Timer	Yes
Dimension (WxHxD)	500 x 430 x 440mm
Weight	18.5kg
Permissible ambient temperature	5 - 40°C
Permissible relative humidity	80%
Protection class	IP 20
RS 232 interface	Yes
Frequency	50/60Hz
Power	1400W

RV 10.10 Glassware Vertical
Type of cooling	Vertical
Cooling surface	1500cm²
Weight	1.66kg

VC 10 lite
Connection diameter suction side	8mm
Connection diameter pressure side	8mm
Connection diameter venting side	8mm
Input pressure	1 - 1050mbar
Analogue speed vacuum control	Yes
Display	TFT
Pressure unit / scale	mbar, hPa, mmHg, Torr
Vacuum sensor	Yes
Vacuum sensor type	Ceramic A\|203
Pressure max. for pressure sensor	1.6 bar
Measurement range (absolute)	1 - 1100 mbar
Control range	1 - 1100 mbar
Resolution pressure	1 mbar
Measurement uncertainty	1 mbar
Medium temperature (gas)	5 - 40°C
Venting valve	Yes
Temperature measuring range max.	200°C
Temperature measurement resolution	1K
Accuracy of temperature measurement	±1K
Timer	YEs
Time setting min.	1s
Time setting max.	6000min
Vacuum speed control interface	VACSTAR
Material in contact with medium	A\|203, PTFE, FPM, PPS
Housing material	PBT
Fastening	Stand/clamp
Fastening diameter	16mm
Mode manual	Yes
Mode program	Yes
Graph function	Yes
Chiller control	Yes
Vacuum leakage test	Yes
Dimensions (WxHxD)	95 x 150 x 110mm
Weight	1.28kg
Permissible ambient temperature	5-40°C
Permissible relative humidity	80%
Protection class	IP 20
RS 232 interface	Yes
USB interface	Micro-USB
Frequency	50/60Hz
Power input	24W
Power input standby	2W

VACSTAR digital
Pump rate max. (50/60Hz)	1.32 m³/h
Pump rate max. (50/60Hz)	22L/min
Final pressure	2 mbar
Suction levels	4
Cylinder	4
Connection diameter suction side	8mm
Connection diameter pressure side	8mm
Input pressure	2 - 1030mbar
Two-point control	Yes
Analog speed vacuum control	Yes
Speed adjustment	Turning knob
Speed range	285 - 1200rpm
Display	LED
Noise at low pressure	54 dB(A)
Material in contact with medium	PTFE, FFPM, PPS, NBR
Housing material	alu-cast coating / thermoplastic polymer
Dimensions (WxHxD)	150 x 375 x 370mm
Weight	11.5kg
Permissible ambient temperature	5 - 40°C
Permissible relative humidity	80% (up to 31°C), decreasing linearly to max. 50 (@40°C)
Protection class	IP 20
RS 232 interface	Yes
USB interface	USB-B
Frequency	50/60Hz
Power input	130W
Power input standby	3W

RC 2 lite
Class designation acc. DIN 12876	I
Identification acc. DIN 12876	NFL
Cooling agent	R290
Cooling agent quantity	76g
Cooling agent pressure max.	21bar
Cooling capacity (@20°C)	400W
Cooling capacity (@20°C)	350W
Cooling capacity (@0°C)	250W
Cooling capacity (@-10°C)	140W
Working temperature	-10°C - room temperature
Operating temperature min.	-10°C
Operating temperature max. (with external heating)	70°C
Temperature display	Yes
Temperature control	PID
Working temperature sensor	PT1000
Working temperature display	LED
Temperature stability DIN 12876	±0.5K
Display resolution	0.1K
Set temperature resolution	0.1K
Filling volume	1 - 3.5L
Pump type	Pressure- / suction pump
Pump pressure max. (0 litres discharge flow)	0.35 bar
Pressure pump (suction side) (0 litre flow)	0.15 bar
Flow rate max. (0 bar back pressure)	18L/min
Pump connection	M16x1
Permissible ON time	100%
Noise level	51dB(A)
Dimensions (WxHxD)	225 x 385 x 430mm
Weight	24.5kg
Permissible ambient temperature	5 - 32°C
Permissible relative humidity	80%
Protection class acc. DIN EN 60529	IP 21
RS 232 interface	Yes
USB interface	USB-B
Frequency	50/60Hz
Power	250W
