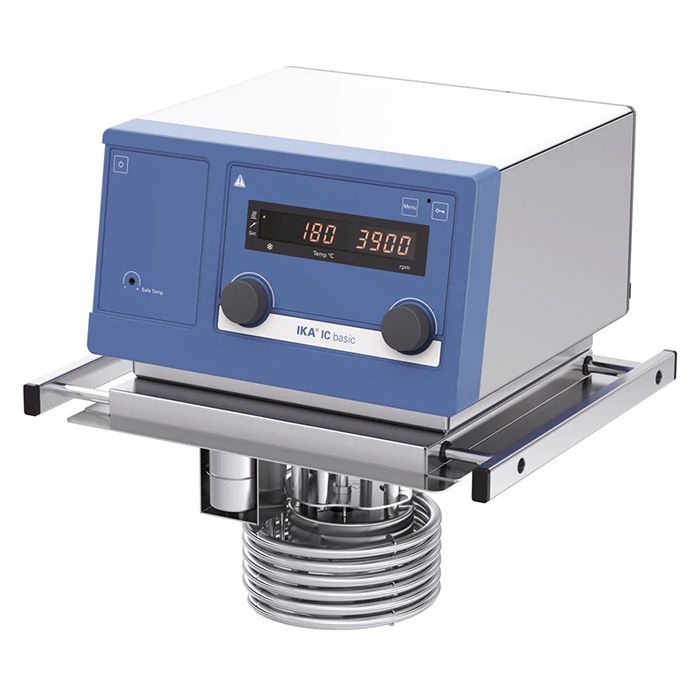

Immersion Circulator IKA IC basic

Stock:

Out of Stock

Add to Favourites

Downloads

User Manuals

Description

The IC basic immersion circulator is used for tempering liquids in open or covered water baths up to 250 °C. The circulator has an adjustable bridge that can be replaced by a fixed bridge.

With the integrated powerful pressure/suction pump, the IC basic can be used for internal and external applications. A cooling coil can be connected to the circulator to temper near-ambient temperatures. All IKA circulating baths conform to the highest safety classification III (FL) for use with flammable liquids according to DIN 12876. The IC basic immersion circulators allow for quick heat-up times and stable temperautre conditions. With integrated connections (M16x1) the device is suitable for external applications.

Features and Benefits:

Temperature range: RT - 250c
Temperature stability: +/-0.02K

Adjustable safety circuit
Stainless steel bath bridge can be combined with water baths of different volumes
Powerful pressure/suction pump
Large easy to read LED display for pump speed and temperature
Push and turn buttons for intuitive menu and navigation
Connection for external PT100 temperature probe
Visual and acoustic safety warnings

USB / RS232 interface for PC control and documentation using labworldsoft as well as for online firmware updates

Technical Data:


Appliance type	Immersion thermostat
Class designation acc. DIN 12876	III
Identification according to DIN 12876	FL
Heat output	2500W
Working temperature	room temp. + 10K @ 1000rpm - 250c
Operating temperature min (with external cooling)	-20c
Temperature display	Yes
Temperature control	PID
Working temperature sensor	PT100
Safety temperature sensor	PT1000
Working temperature display	LED
Safety temperature display	LED
Temperature stability DIN 12876	+/-0.02K
Connection for ext temperature sensor	PT100
Display resolution	0.1K
Display for operation with ext sensor	Yes
Set temperature resolution	0.1K
Warning function optical	Yes
Warning function acoustic	Yes
Warning function excess temperature	Yes
Adjustable safety circuit	0 - 260c
Sub level protection	Yes
Over level protection	Yes
Pump type	Pressure / suction
Pump pressure max (0 litres discharge flow rate)	0.61bar
Pressure pump (suction side) (0 litre flow)	0.45bar
Flow rate max (0 bar back pressure)	31L/min
Pump connection	M16x1
Bath depth min	150mm
Calibration option	Yes
Appliance fastener	Bridge
Range of universal clamp	280 - 375mm
Dimensions (W x H x D)	285 x 313 x 291m
Weight	10kg
Protection class according to DIN EN 60529	IP21
USB interface	Yes microUSB
