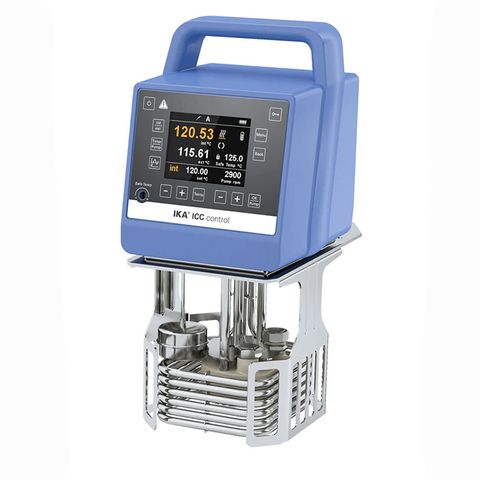

Immersion Circulator IKA ICC control

Stock:

Out of Stock

Add to Favourites

Downloads

User Manuals

Description

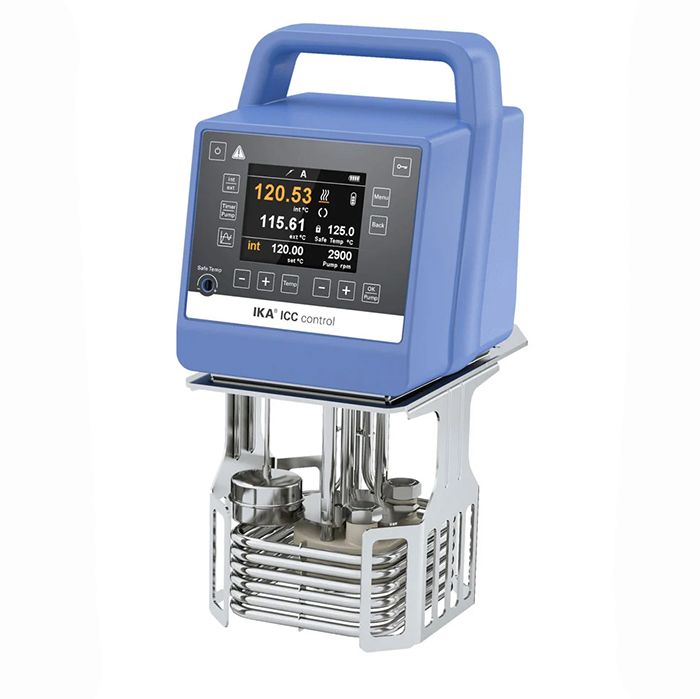

Compact immersion circulator ICC control for tempering of liquids up to 150 °C. Suitable to use in open or covered bath vessels.

The integrated pressure/ suction pump allow ICC control to be used for internal and external applications. Just connect the optional pump set. ICC control also has an optional cooling coil that allows to work close to ambient temperatures. The program function can save and run up to 10 individual procedures with 10 steps.

The ICC control circulator is first in its class with an integrated carrying handle that allows for comfortable transport and safe storage thanks to its clever stand.

The large, colour TFT screen offers intuitive controls of all process parameters.

Features and Benefits:

Temperature range: RT - 150c
Temperature stability: +/-0.01K
Powerful, speed controlled pressure/suction pump
Holding clamp for attaching the circulator to a bath is included, convenient carrying handle and integrated brackets
Large easy to read TFT display for temperature, pump speed, filling level and safety temperature
Programming function with 10 individual programs, each with 10 steps
Adjustable safety circuit
Visual and acoustic safety warnings
USB / RS232 interface for PC control and documentation using labworldsoft as well as for online firmware updates

Technical Data:


Appliance type	Compact immersion circulators
Class designation acc. DIN 12876	III
Identification according to DIN 12876	FL
Heat output	2000W
Working temperature	room temp. + 10K @ 1000rpm - 150c
Operating temperature min (with external cooling)	-20c
Temperature display	Yes
Temperature control	PID
Working temperature sensor	PT100
Safety temperature sensor	PT1000
Working temperature display	TFT
Safety temperature display	TFT
Temperature stability DIN 12876	+/-0.01K
Display resolution	0.10K
Display for operation with ext sensor	Yes
Set temperature resolution	0.01K
Warning function optical	Yes
Warning function acoustic	Yes
Warning function excess temperature	Yes
Adjustable safety circuit	0 - 160c
Sub level protection	Yes
Over level protection	Yes
Pump type	Pressure / suction
Pump pressure max (0 litres discharge flow rate)	0.3bar
Pressure pump (suction side) (0 litre flow)	0.2bar
Flow rate max (0 bar back pressure)	18L/min
Bath depth min	150mm
Calibration option	Yes
Appliance fastener	Clamp
Range of universal clamp	0 - 40mm
Dimensions (W x H x D)	145 x 340 x 200mm
Weight	3.75kg
Protection class according to DIN EN 60529	IP21
USB interface	Yes microUSB
