Stock Code:
0004134400I

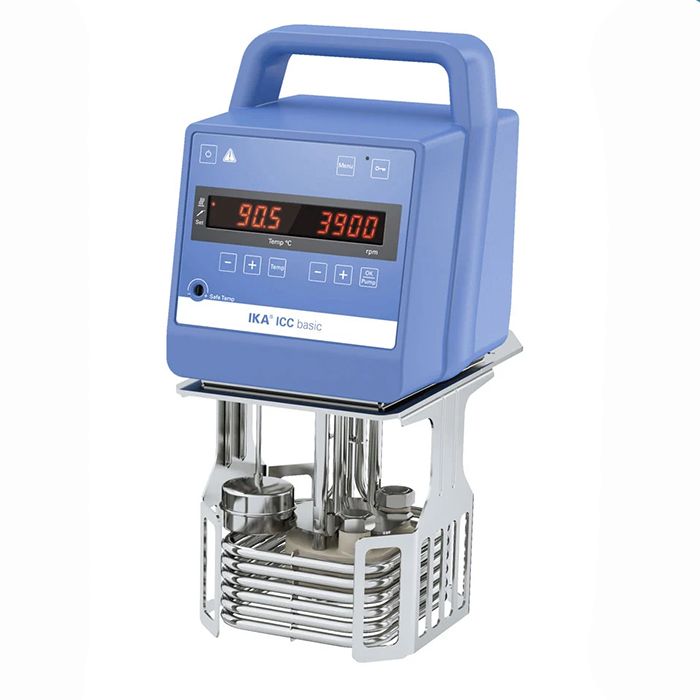

Immersion Circulator IKA ICC basic
Stock:
Out of Stock
Downloads
Description
Compact immersion circulator ICC basic for tempering of liquids up to 150 °C. Suitable to use in open or covered bath vessels.The integrated pressure/ suction pump allows ICC basic to be used for internal and external applications. Just connect the optional pump set. ICC basic also has an optional cooling coil that allows to work close to ambient temperatures. The ICC basic circulator is first in its class with an integrated carrying handle that allows for comfortable transport and safe storage thanks to its clever stand.
Features and Benefits:
- Temperature range: RT - 150c
- Temperature stability: +/-0.02K
- Powerful, speed controlled pressure/suction pump
- Holding clamp for attaching the circulator to a bath is included
- Convenient carrying handle and integrated brackets
- Large easy to read LED display for pump speed and temperature
- Push and turn buttons for intuitive menu navigation
- Adjustable safety circuit
- Visual and acoustic safety warnings
- USB / RS232 interface for PC control and documentation using labworldsoft as well as for online firmware updates
Technical Data:
| Appliance type | Compact immersion circulators |
| Class designation acc. DIN 12876 | III |
| Identification according to DIN 12876 | FL |
| Heat output | 2000W |
| Working temperature | room temp. + 10K @ 1000rpm - 150c |
| Operating temperature min (with external cooling) | -20c |
| Temperature display | Yes |
| Temperature control | PID |
| Working temperature sensor | PT1000 |
| Safety temperature sensor | PT1000 |
| Working temperature display | LED |
| Safety temperature display | LED |
| Temperature stability DIN 12876 | +/-0.02K |
| Display resolution | 0.1K |
| Display for operation with ext sensor | Yes |
| Set temperature resolution | 0.1K |
| Warning function optical | Yes |
| Warning function acoustic | Yes |
| Warning function excess temperature | Yes |
| Adjustable safety circuit | 0 - 160c |
| Sub level protection | Yes |
| Over level protection | Yes |
| Pump type | Pressure / suction |
| Pump pressure max (0 litres discharge flow rate) | 0.3bar |
| Pressure pump (suction side) (0 litre flow) | 0.2bar |
| Flow rate max (0 bar back pressure) | 18L/min |
| Bath depth min | 150mm |
| Calibration option | Yes |
| Appliance fastener | Clamp |
| Range of universal clamp | 0 - 40mm |
| Dimensions (W x H x D) | 145 x 340 x 200mm |
| Weight | 3.75kg |
| Protection class according to DIN EN 60529 | IP21 |
| USB interface | Yes microUSB |
