Stock Code:
0020105647I

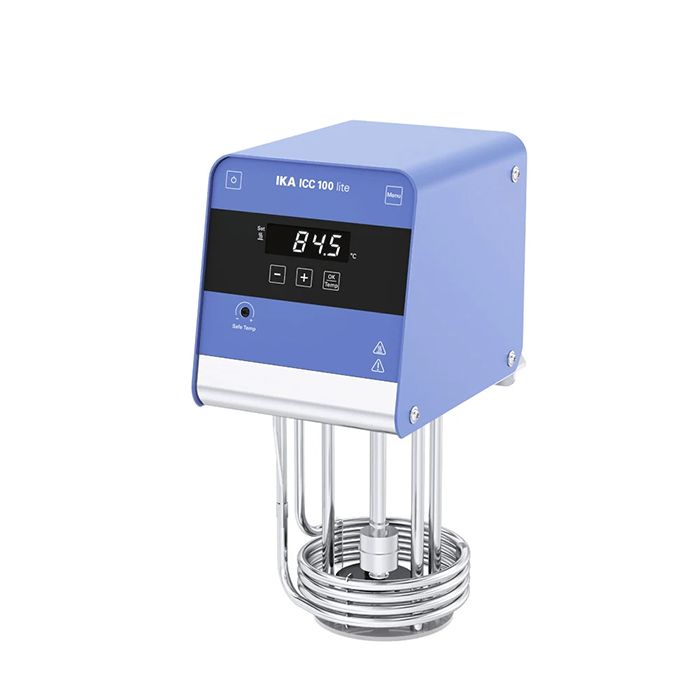

Immersion Circulator IKA ICC 100 lite
Stock:
Out of Stock
Downloads
Description
The compact immersion circulators of the lite series are powerful and of high quality, with a focus on essential basic functions, excellent performance and efficient operation. ICC 100 lite is suitable for tempering liquids up to 100 °C and internal circulation.
Features and Benefits:
- Increased safety
- ICC 100 lite is approved for use with flammable liquids in accordance with DIN 12876, safety class III
- Convenient handling
- The integrated stand enables easy cleaning and prevents important components from being damaged
- Durability and low maintenance
- Robust design thanks to high quality material, housing made of coated stainless steel
- USB and RS232 interface for monitoring, control and documentation
Technical Data:
| Appliance type | Compact immersion circulators |
| Class designation acc. DIN 12876 | III |
| Identification according to DIN 12876 | FL |
| Heat output | 2000W |
| Working temperature | room temp. - 100c |
| Operating temperature min (with external cooling) | -25c |
| Temperature display | Yes |
| Temperature control | PID |
| Working temperature sensor | PT1000 |
| Safety temperature sensor | PT1000 |
| Working temperature display | LED |
| Safety temperature display | LED |
| Temperature stability DIN 12876 | +/-0.05K |
| Display resolution | 0.1K |
| Set temperature resolution | 0.1K |
| Warning function optical | Yes |
| Warning function acoustic | Yes |
| Adjustable safety circuit | 0 - 110c |
| Sub level protection | Yes |
| Bath depth min | 150mm |
| Calibration option | Yes |
| Appliance fastener | Clamp |
| Range of universal clamp | 0 - 40mm |
| Dimensions (W x H x D) | 135 x 303 x 180mm |
| Weight | 4.2kg |
| Protection class according to DIN EN 60529 | IP21 |
| USB interface | Yes |
Details
-
Sales UOM2:EACH
-
Warranty (Months):24
-
Ethanol:Y
