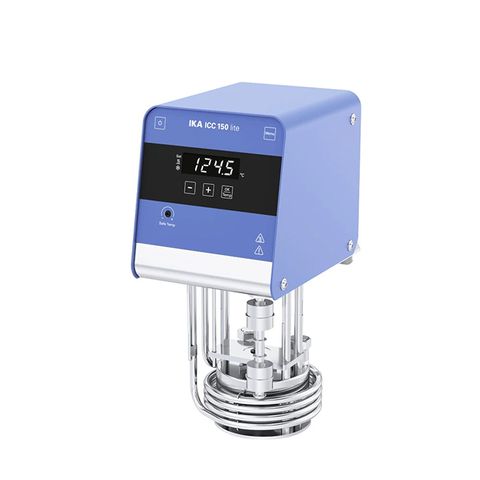

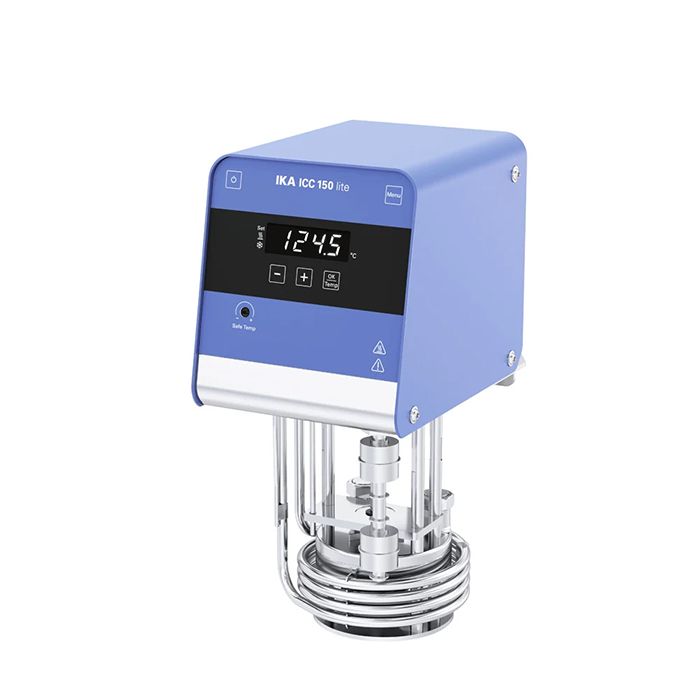

Immersion Circulator IKA ICC 150 lite
Stock:
Out of Stock
Downloads
Description
The compact immersion circulators of the lite series are powerful and of high quality, with a focus on essential basic functions, excellent performance and efficient operation.
ICC 150 lite is suitable for tempering liquids up to 150 °C. The integrated pressure/ suction pump allows the device to be used for internal and external applications.
Features and Benefits:
- Increased safety
- ICC 150 lite is approved for use with flammable liquids in accordance with DIN 12876, safety class III. It detects an overflow. e.g. due to an unintentional increase in the volume of oils, and switches the heating off safely
- Convenient handling
- The integrated stand enables easy cleaning and prevents important components from being damaged
- Durability and low maintenance
- Robust design thanks to high quality material, housing made of coated stainless steel
- USB and RS232 interface for monitoring, control and documentation
Technical Data:
| Appliance type | Compact immersion circulators |
| Class designation acc. DIN 12876 | III |
| Identification according to DIN 12876 | FL |
| Heat output | 2000W |
| Working temperature | room temp. - 150c |
| Operating temperature min (with external cooling) | -25c |
| Temperature display | Yes |
| Temperature control | PID |
| Working temperature sensor | PT1000 |
| Safety temperature sensor | PT1000 |
| Working temperature display | LED |
| Safety temperature display | LED |
| Temperature stability DIN 12876 | +/-0.05K |
| Display resolution | 0.1K |
| Set temperature resolution | 0.1K |
| Warning function optical | Yes |
| Warning function acoustic | Yes |
| Adjustable safety circuit | 0 - 160c |
| Sub level protection | Yes |
| Over level protection | Yes |
| Pump type | Pressure / suction |
| Pump pressure max (0 litres discharge flow rate) | 0.3bar |
| Pressure pump (suction side) (0 litre flow) | 0.1bar |
| Flow rate max (0 bar back pressure) | 15L/min |
| Bath depth min | 150mm |
| Calibration option | Yes |
| Appliance fastener | Clamp |
| Range of universal clamp | 0 - 40mm |
| Dimensions (W x H x D) | 135 x 303 x 180mm |
| Weight | 4.2kg |
| Protection class according to DIN EN 60529 | IP21 |
| USB interface | Yes |
