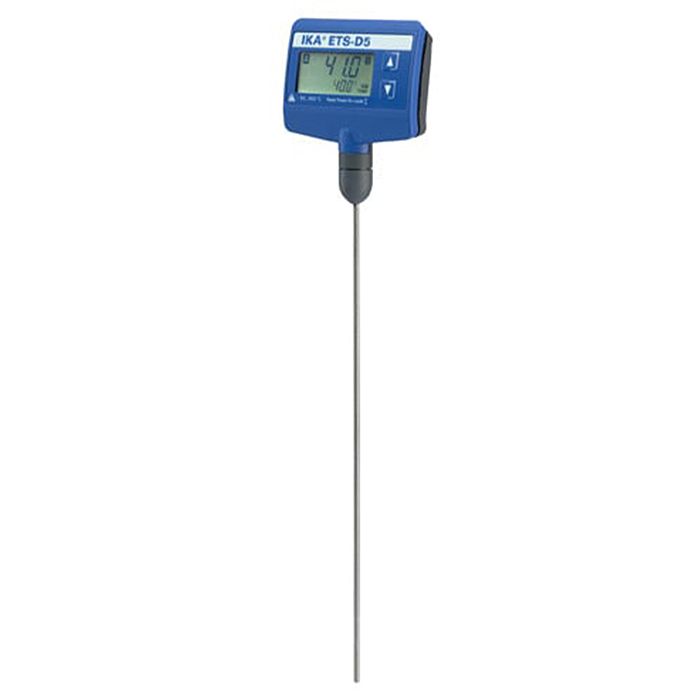

Sensor Temperature IKA ETS-D5 - Electronic

Stock:

1 - 9

Add to Favourites

Downloads

User Manuals

Description

Electronic contact thermometer with three operating modes.

Ensures perfect temperature control in liquid mediums, without overshooting the set temperature, even in the case of quick heating. Automatic switch-off of the temperature control function of the connected magnetic stirrer after three minutes if the temperature probe is not immersed in the medium.

Technical Data:

Temperature measuring range min. (with H62 sensor)	-10c
Temperature measuring range max (with H62 sensor)	400c
Temperature measurement resolution	0.1K
Accuracy of temperature measurement	+/-0.2 + tolerance PT1000 (DIN IEC 751 Class A)
Set temperature resolution	0.1K
Heat control accuracy of medium with sensor	+/-0.5K
Immersion depth max	200mm
Permissible ON time	100%
Dimensions (WxHxD)	82 x 83 x 22mm
Weight	0.2kg
protection class according to DIN EN 60529	IP54
