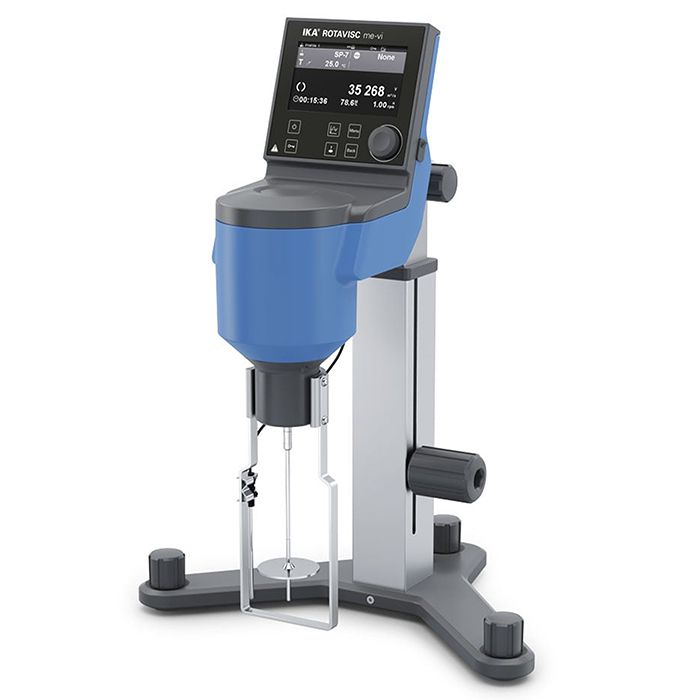

Viscometer IKA me-vi - Viscosity Range: 100 to 40,000,000mPas

Stock:

Out of Stock

Downloads

Description

The ROTAVISC series determines the viscosity of liquids in all areas of application ranging from the laboratory to quality control. The four devices measure in different viscosity ranges. Regardless of a simple or demanding viscosity measurement - the ROTAVISC delivers rapid and accurate results. The scope of delivery includes a standard spindle set (SP7-SP12), a protective bracket, temperature sensor and ROTASTAND stand.

Features and Benefits:

Easy to Operate
The generous 4.3inch TFT display allows for an intuitive menu guidance. A digital spirit level also supports the correct set-up of the start-up condition. The simple ramp function simplifies repetitive tasks.
Highest Measurement Accuracy

The level of measurement accuracy of the Rotavisc rotational viscometer for both Newtonian and non-Newtonian fluids is +/-1% of the measuring range. The reproducibility is +/-0.2%.

Stepless Speed

Offering stemless speed adjustment.

Technical Data:

Viscosity measuring range	40,000,000mPas
Viscosity accuracy (FSR)	1%
Viscosity repeatability (FSR)	0.2%
Spring torque	0.7187mNm
Guard rail	me-vi
Measuring spindle series	SP set-2
Motor rating output	4.8W
Overload protection	Yes
Direction of rotation	Right
Display	TFT
Speed display	TFT
Speed range	0.01 - 200rpm
Setting accuracy speed	+/-0.01rpm
Speed adjustment	TFT
Torque display	Yes
Torque measurement	Yes
Timer	Yes
Timer display	TFT
Timer setting range	0.017 - 6,000min
Temperature measurement resolution	0.1K
Working temperature display	TFT
Connection for ext. temperature sensor	PT100
Graph function	Yes
Operating mode	Timer and continuous operation
Calibration option	Yes
Touch function	Yes
Permitted density	9,999kg/dm3
Working temperature	-100 to 300c
Fastening on stand	extension arm
Support rod diameter	16mm
Telescope stand stroke	200mm
Plug-in coupling diameter	12mm
Basic container volume	600mL
Stand	Rotastand
Stroke max	61mm
Diameter	16mm
Dynamic load	5kg
Dimensions	251 x 629 x 372mm
Weight	7.1kg
Permissible ambient temperature	5 - 40c
Permissible relative humidity	70%
Protection class according to DIN EN 60529	IP40
RS232 Interface	Yes
USB Interface	Micro-USB
Power input	24W
