Stock Code:
0025000352I

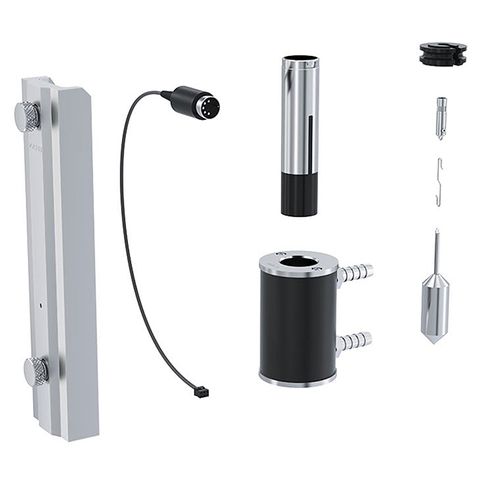

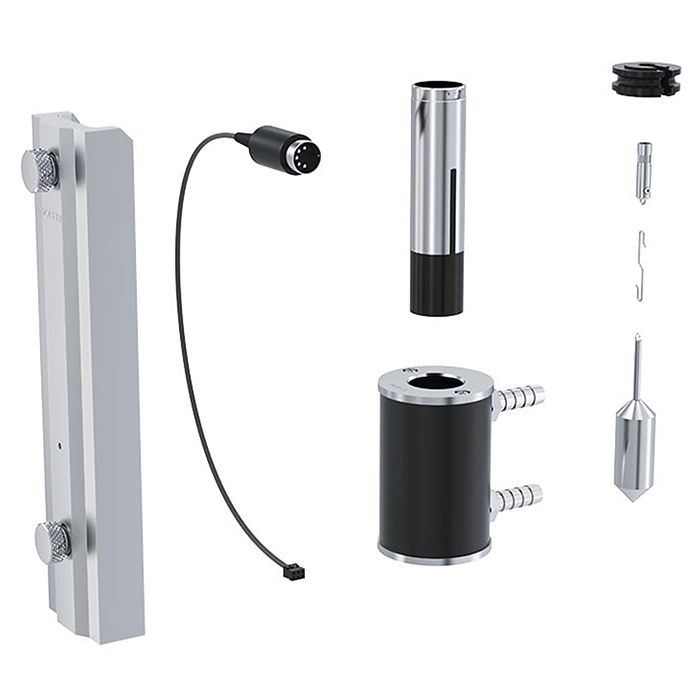

Adapter Set VOLS-1 Low Volume for IKA Viscometers
Stock:
Out of Stock
Downloads
Description
Adapter to measure the viscosity of especially valuable and expensive samples. A double jacket with temperature sensor to quickly heat up or cool down the sample as well as a coaxial cylinder system for the analysis of the sample at a specific shear rate is included.Further spindles and chambers for different volumes can be purchased separately.
Technical Data:
| Spindle geometry | Cylinder |
| Connection | Thread M2.5LH |
| Hook connector | Yes |
| Sample volume | 6.7mL |
| Flow jacket | Yes |
| Mounting bracket | Yes |
| Sample container | Specified chamber |
| Working temperature max. | 100c |
| Viscosity accuracy (FSR) | 2% |
| Viscosity Repeatability (FSR) | 0.2% |
| Min FSR match ROTAVISC lo-vi | 1.5mPa.s |
| Max FSR match ROTAVISC lo-vi | 30,000mPa.s |
| Min FSR match ROTAVISC me-vi | 16mPa.s |
| Max FSR match ROTAVISC me-vi | 320,000mPa.s |
| Min FSR match ROTAVISC hi-vi I | 32mPa.s |
| Max FSR match ROTAVISC hi-vi I | 640,000mPa.s |
| Min FSR match ROTAVISC hi-vi II | 128mPa.s |
| Max FSR match ROTAVISC hi-vi II | 2,600,000mPa.s |
| Material in contact with medium | Stainless steel 1.4404 / LDPE |
| Dimensions (W x H x D) | 300 x 110 x 275mm |
| Weight | 1.656kg |
Details
-
Pack Size:EACH
