Stock Code:
0025000390I

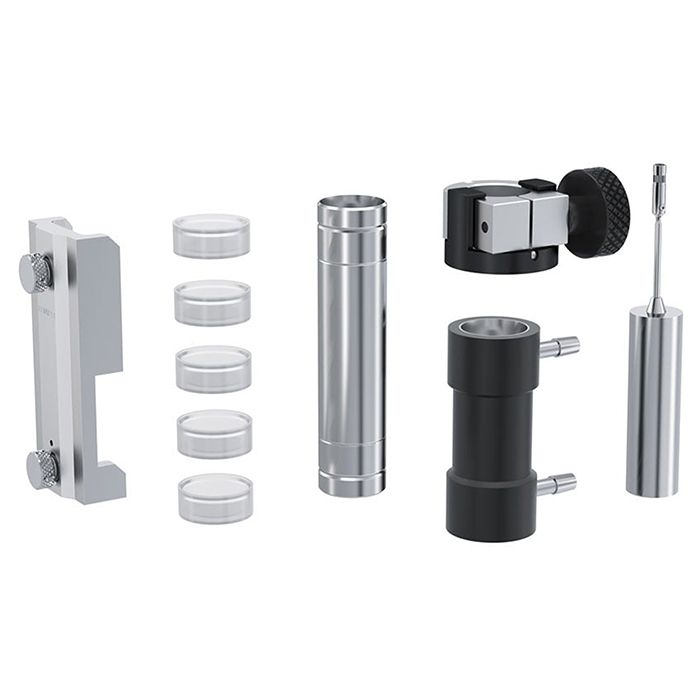

Adapter Set ELVAS-1
Stock:
Out of Stock
Downloads
Description
The extremely low viscosity adapter spindle set ELVAS-1 includes a double jacket to quickly heat up or cool down the sample as well as a coaxial cylinder system for the analysis of the sample at a specific shear rate and shear stress. This 16 ml spindle is commonly used with the ROTAVISC lo-vi and allows measurements from 1 mPas (water temperature at 20 °C). The spindle without the water jacket can also be used in customer-specific vessels. The maximum measurable viscosity is 2,000 mPas.
Technical Data:
| Spindle geometry | Cylinder |
| Connection | Thread M2.5LH |
| Diameter | 25.15mm |
| Spindle length | 161mm |
| Spindle volume | 16mL |
| Flow Jacket | Yes |
| Mounting Bracket | Yes |
| Sample container | Specified chamber |
| Working temperature max. | 100c |
| Viscosity accuracy (FSR) | 2% |
| Viscosity Repeatability (FSR) | 0.2% |
| Min FSR match ROTAVISC lo-vi | 1mPa.s |
| Max FSR match ROTAVISC lo-vi | 2,000mPa.s |
| Min FSR match ROTAVISC me-vi | 3.2mPa.s |
| Max FSR match ROTAVISC me-vi | 2,000mPa.s |
| Min FSR match ROTAVISC hi-vi I | 6.4mPa.s |
| Max FSR match ROTAVISC hi-vi I | 2,000mPa.s |
| Min FSR match ROTAVISC hi-vi II | 25.6mPa.s |
| Max FSR match ROTAVISC hi-vi II | 2,000mPa.s |
| Material in contact with medium | Stainless steel 1.4404 / LDPE |
| Dimensions (W x H x D) | 300 x 110 x 275mm |
| Weight | 1.753kg |
Details
-
Pack Size:EACH
