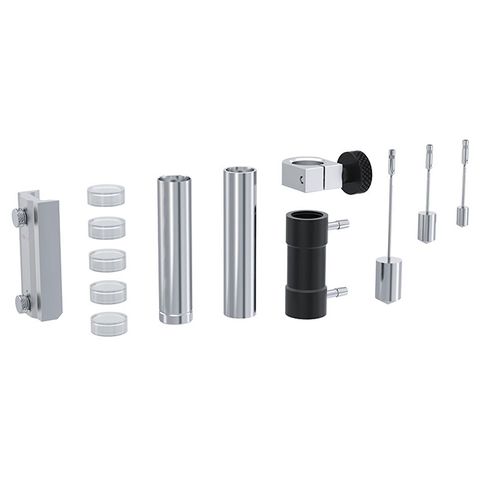

Adapter Set DINS-1

Stock:

Out of Stock

Downloads

According to DIN-53019 Standard for IKA Viscometers.

Technical Data:

Spindle geometry	Cylinder
Connection	Thread M2.5LH
Sample volume min.	2mL
Sample volume max.	17mL
Flow Jacket	Yes
Mounting Bracket	Yes
Sample container	Specified chamber
Working temperature max.	100c
Viscosity accuracy (FSR)	2%
Viscosity Repeatability (FSR)	0.2%
Min FSR match ROTAVISC lo-vi	0.6mPa.s
Max FSR match ROTAVISC lo-vi	50,000mPa.s
Min FSR match ROTAVISC me-vi	6.1mPa.s
Max FSR match ROTAVISC me-vi	50,000mPa.s
Min FSR match ROTAVISC hi-vi I	12.2mPa.s
Max FSR match ROTAVISC hi-vi I	50,000mPa.s
Min FSR match ROTAVISC hi-vi II	48.8mPa.s
Max FSR match ROTAVISC hi-vi II	50,000mPa.s
Material in contact with medium	Stainless steel 1.4404 / LDPE
Dimensions (W x H x D)	390 x 102 x 310mm
Weight	2.5kg
