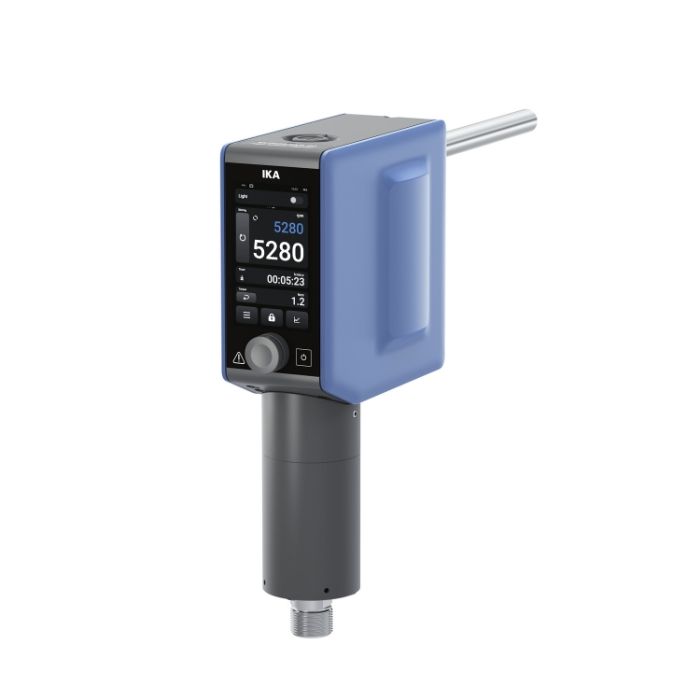

Stirrer Overhead IKA EUROSTAR 20 High Speed Control

UOM:

EACH

Stock:

Special Order

Add to Favourites

Downloads

User Manuals

Description

The new generation of EUROSTAR overhead stirrers combine modern design, user-friendliness and reliable performance. With up to 23% less space required compared to the previous models they fit perfectly into any laboratory.

EUROSTAR 20 high speed digital is the right solution for simple mixing tasks requiring high speed up to 6000rpm, volumes up to 20 litres (H2O) and viscosities up to 10 000 mPas. Its maximum torque of 40 Ncm and linear adjustment to 20 Ncm at maximum speed guarantee reliable and powerful performance.

Highest precision thanks to new viscosity measurement.

An integrated torque sensor offers high precision torque monitoring (+/- 1 Ncm accuracy). The torque measurement data can be used to calculate viscosity (mPas) based on user selected stirrer and vessel criteria providing important feedback on the mixing process. The desired stirring 150-6000rpm is always guaranteed even with changes to the torque demand or viscosity of the material.

Features and Benefits:

Maximum safety and reliability

User-friendly: Large TFT display shows all parameters at a glance

Lock key: Prevents accidental changes to settings

Safety circuits: automatic safety shutoff from stirring impeller blockage or user specific torque limit

Protection class IP 54: Resistant to splash water and steam for reliable use in demanding environments

Brushless motor: Durable, clean and quiet in operation

Connectivity and documentation

Program modes and graph display offer advanced control options

More interfaces: USB, RS232, Ethernet, wireless and Wi-Fi connectivity offer enhanced possibilities for automation

Compatible with labworldsoft® laboratory software for integration in digital workflows and documentation processes

23% smaller size than previous models
Viscosity measurement (mPas)
High precision torque measurement +/- 1 Ncm
Vibration sensor
Integrated light
Left/Right rotation direction (interval mode)
Speed: Soft start in 3 modes
Chaotic mixing mode
Lock ring indication (chuck)
Temperature measurement
Program mode
Graph display
TFT Display
Wireless (WPAN), Ethernet & WiFi connection

Technical Data:

Stirring quantity max. per stirring position (H2O)	20L
Motor principle	Brushless DC
Speed display	TFT
Speed range	0/150 - 6000rpm
Viscosity max.	10 000 mPas
Permissible ON time	100%
Torque max. at stirring shaft	40 Ncm
Torque max. at stirring shaft at 150-600rpm	40 Ncm
Torque max. at stirring shaft at 600-6000rpm	40-20 Ncm
Speed adjustment	Stepless
Setting accuracy speed	±1 rpm
Deviation of speed measurement n > 300rpm	±1%
Deviation of speed measurement n < 300rpm	±3 rpm
Stirring element fastening	Chuck
Chuck range diameter	0.5 -10 mm
Hollow shaft, inner diameter	11mm
Hallow shaft (push-through - when stopped)	Yes
Fastening on stand	Extension arm
Extension arm diameter	16mm
Extension arm length	220mm
Torque display	Yes
Speed control	Electronic
Nominal torque	0.2 Nm
Torque measurement	Yes
Deviation of torque measurement	±1 Ncm
Timer	Yes
Timer display	TFT
Time setting range	1 - 6000min
Housing material	Alu-cast coating / thermoplastic polymer
Temperature measuring range	-10 - 350 °C
Temperature measurement resolution	0.1K
Accuracy of temperature measurement	±0.5 + tolerance PT1000 (DIN EN 60751 Class A) K
Limit deviation temperature sensor	≤ ± (0.15 + 0.002xITI) K
Permissible ambient temperature	5 - 40 °C
Permissible relative humidity	80%
Protection class according to DIN EN 60529	IP 54
RS 232 interface	Yes
USB interface	USB-C
WPAN interface	Yes
WiFi interface	Yes
Ethernet interface	Yes
Batteries included	Yes
Battery cell type	BR2032/BN
Number of batteries	1
Battery weight	3g
Battery packaged	within appliance
Battery capacity	200 mAh
Battery voltage	3 V
Dimensions (WxHxD)	89 x 306 x 191 mm
Weight	5.2kg
