Stock Code:
0020001204I

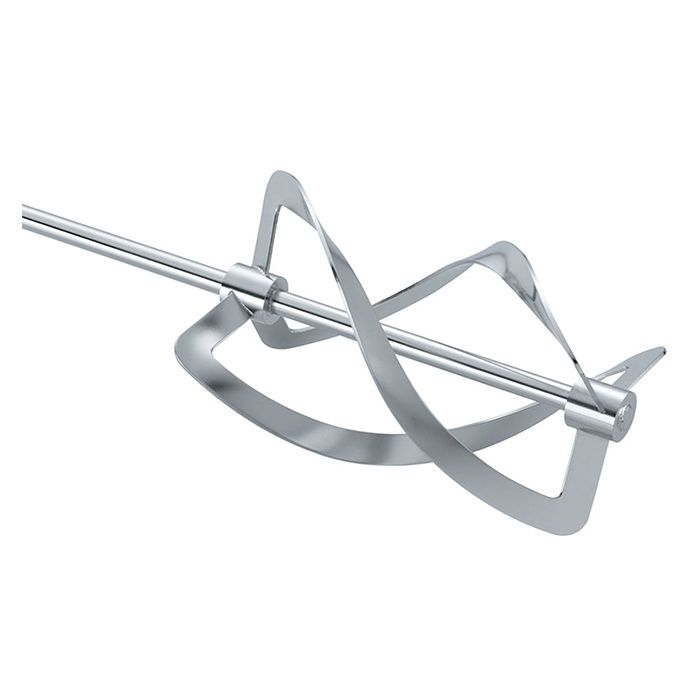

Paddle IKA Spiral R3003.1 - Stirrer Dia: 100mm
UOM:
EACH
Stock:
Special Order
Description
Generates axial flow. Medium is conveyed from the bottom upwards. For homogeneous mixing and heat exchange of medium to high viscosity media. Used at low to medium speeds.
Technical Data:
Stirrer Dia 100mm Shaft Dia 10mm Shaft Length 550mm Material in contact with medium AISI 316L, 1.4571 Height 162.8mm Weight 0.62kg
