Stock Code:
0003593000I

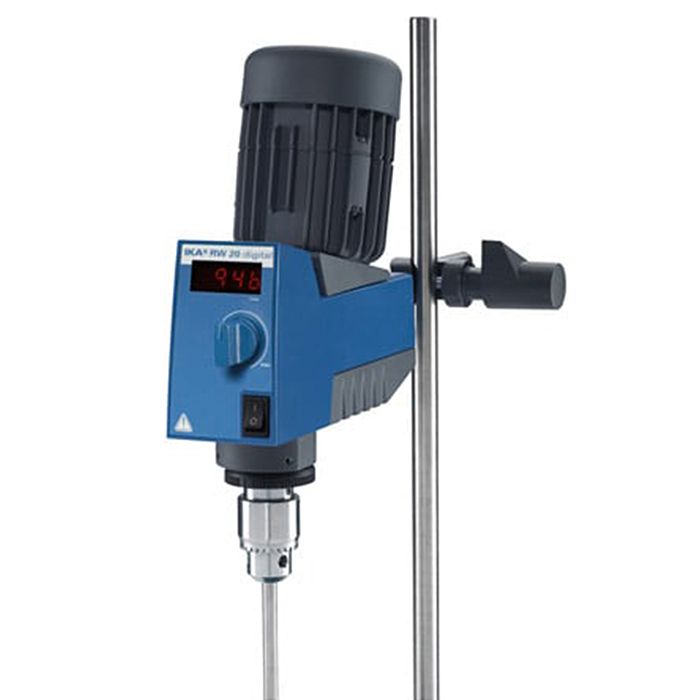

Stirrer Overhead IKA RW20
Stock:
10 - 19
Downloads
Description
Features and Benefits:
- Digital display
- Robust, slimline, ergonomic design
- Technical improvements on the trusted RW20 series designs
- Constant power drive
- Two speed ranges for universal use from 60 to 2,000rpm
- Push through agitator shafts (only when stationary)
- For stirring quantities of up to 20L (H2O)
Technical Data:
| Stirring Quantity Max (H20) | 20L |
| Motor Rating Input | 70W |
| Motor Rating Output | 35W |
| Speed Display | LED |
| Speed Range | 60 - 2,000rpm |
| Viscosity Max | 10,000mPas |
| Output Max at Stirring Shaft | 26W |
| Permissible On Time | 100% |
| Torque Max at Stirring Shaft | 150Ncm |
| Torque Max at stirring shaft at 60 1/min (overload) | 300Ncm |
| Torque Max at stirring shaft at 100rpm | 150Ncm |
| Torque Max at stirring shaft at 1,000rpm | 24Ncm |
| Speed Range I | 60 - 500rpm |
| Speed Range II | 240 - 2,000rpm |
| Speed Adjustment | Stepless |
| Setting Accuracy Speed | +/-1rpm |
| Deviation of Speed Measurement | +/-30rpm |
| Stirring Element Fastening | Chuck |
| Chuck Range Diameter | 0.5 - 10mm |
| Hollow Shaft, inner diameter | 10.5mm |
| Hollow Shaft, (push through - when stopped) | Yes |
| Fastening on Stand | Extension arm |
| Extension arm diameter | 13mm |
| Extension arm length | 160mm |
| Speed Control | Mechanical |
| Nominal Torque | 1.5Nm |
| Dimensions (W x H x D) | 88 x 294 x 212mm |
| Weight | 3.1kg |
| Protection class according to DIN EN 60529 | IP20 |
Supplied With:
- RW20
- Check key
Details
-
Pack Size:EACH
-
Warranty (Months):24
