Stirrer Overhead IKA EUROSTAR 60 Control Package

UOM:

EACH

Stock:

Special Order

Add to Favourites

Downloads

User Manuals

Description

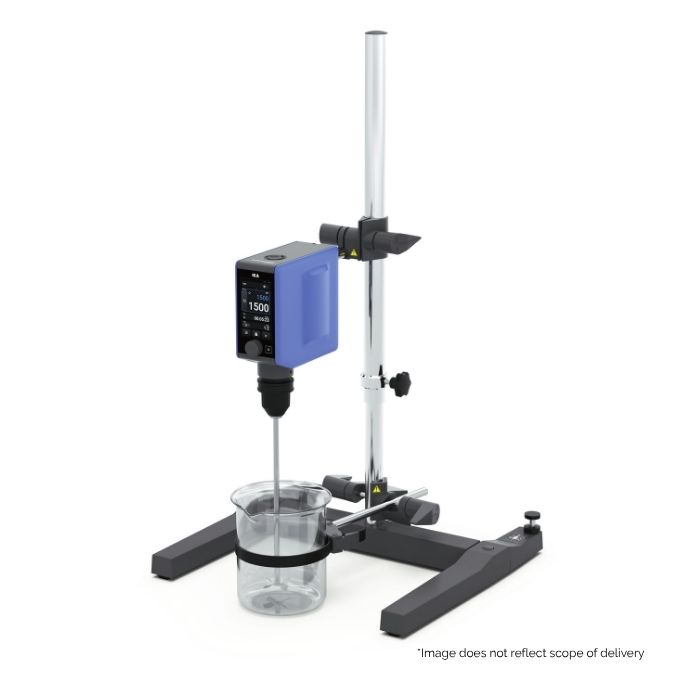

EUROSTAR 60 Control H-stand package

The new generation of EUROSTAR overhead stirrers combines modern design, user-friendly and reliable performance. With up to 23% less space required compared to the previous models they fit perfectly into any laboratory.

EUROSTAR 60 Control is the right solution for advanced mixing tasks up to 60 litres (H2O) and viscosities up to 50000 mPas. Its maximum torque of 100 Ncm and linear adjustment to 60 Ncm at maximum speed guarantee reliable and powerful performance. Th EUROSTAR Control models come with various advanced features, such as integrated temperature measurement, reversible direction of rotation (left/right), interval mode and an integrated vibration sensor.

An integrated torque sensor offers high precision torque monitoring (+/- 1 Ncm accuracy). The torque measurement data can be used to calculate viscosity (mPas) based on user selected stirrer and vessel criteria providing important feedback on the mixing process. The desired stirring speed 30-2000 rpm is always guaranteed even with changes to the torque demand or viscosity of the material.

ISO Class 7/8 Cleanroom Compliance allows for use in cleanroom environments in pharmaceutical, biotech, medical device, electronics and aerospace labs - industries where particle control is critical.

Features and Benefits:

User-friendly, large TFT display shows all parameters at a glance
Quick Sense Keyless Chuck - allows the mixing tools to be changed with one hand, without additional tools
Lock key - prevents accidental changes to settings
Safety circuits - automatic safety shutoff from stirring impeller blockage or specified torque limit
Protect class IP 54 - resistant to splash water and steam for reliable use in demanding environments
Brushless motor - durable, clean and quiet in operation
Program modes and graph display offer advanced control options
USB, RS 232, Ethernet, wireless and Wi-Fi connectivity
Compatible with labworldsoft® - laboratory software for integration into digital workflows and documentation of processes
23% smaller than previous models
Viscosity measurement (mPas)
High precision torque measurement +/- 1 Ncm
Vibration sensor
Integrated light
Left/right rotation direction (interval mode)
Speed - soft start in 3 modes
Chaotic mixing mode
Lock ring indication (chuck)
Temperature measurement

Technical Data:

Stirring quantity max. per stirring position (H2O)	60L
Motor principle	Brushless DC
Speed display	TFT
Speed range	0/30 - 2000rpm
Reversible direction of rotation	Yes
Intermittent operation	Yes
Viscosity max.	50 000 mPas
Permissible ON time	100%
Torque max. at stirring shaft	100 Ncm
Torque max. at stirring shaft at 30-400rpm	100 Ncm
Torque max. at stirring shaft at 400-2000rpm	100-60 Ncm
Speed adjustment	Stepless
Setting accuracy speed	±1 rpm
Deviation of speed measurement n > 300rpm	±1%
Deviation of speed measurement n < 300rpm	±3 rpm
Stirring element fastening	Chuck
Connection for temperature sensor	PT1000
Chuck range diameter	0.5 -10 mm
Hollow shaft, inner diameter	11mm
Hallow shaft (push-through - when stopped)	Yes
Fastening on stand	Extension arm
Extension arm diameter	16mm
Extension arm length	220mm
Torque display	Yes
Speed control	Electronic
Nominal torque	0.6 Nm
Torque measurement	Yes
Deviation of torque measurement	±1 Ncm
Timer	Yes
Timer display	TFT
Time setting range	1 - 6000min
Housing material	Alu-cast coating / thermoplastic polymer
Noise without element	52 dB(A)
ISO Cleanroom Class (900rpm)	Class 7
ISO Cleanroom Class (1800rpm)	Class 8
Temperature measuring range	-10 - 350 °C
Temperature measurement resolution	0.1K
Accuracy of temperature measurement	±0.5 + tolerance PT1000 (DIN EN 60751 Class A) K
Limit deviation temperature sensor	≤ ± (0.15 + 0.002xITI) K
Permissible ambient temperature	5 - 40 °C
Permissible relative humidity	80%
Protection class according to DIN EN 60529	IP 54
RS 232 interface	Yes
USB interface	USB-C
WPAN interface	Yes
WiFi interface	Yes
Ethernet interface	Yes
Batteries included	Yes
Battery cell type	BR2032/BN
Number of batteries	1
Battery weight	3g
Battery packaged	within appliance
Battery capacity	200 mAh
Battery voltage	3 V
Dimensions (WxHxD)	89 x 237 x 191 mm
Weight	3.9kg
