Balance Premium Analytical 220g x 0.1mg Touch Screen

UOM:

EACH

Stock:

Special Order

Add to Favourites

Downloads

User Manuals

Description

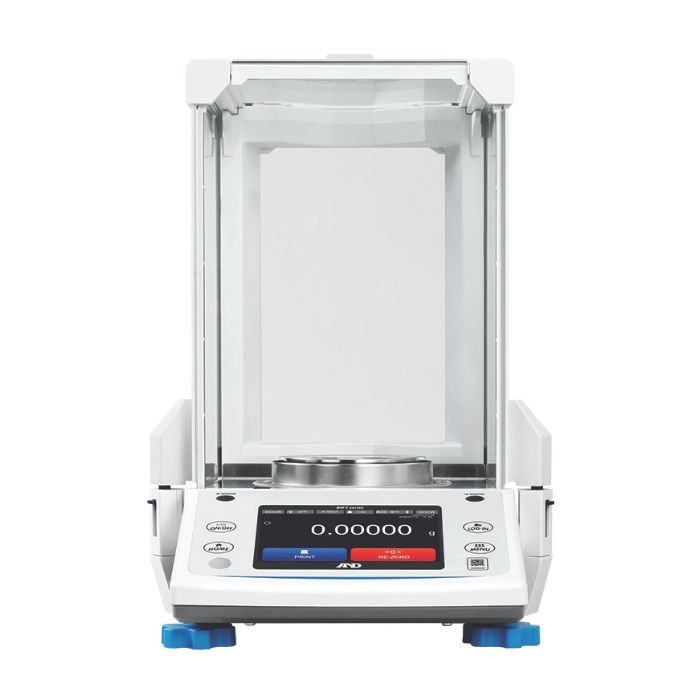

For professionals prioritising precision, compliance and efficiency, the BH224TE Micro Analytical Balance is the balance solution. Equipped with advanced sensor technology, it ensures superior accuracy. Features like automatic doors and streamlined touchscreen with intuitive navigation simplify operation, saving valuable time and mitigating operational risk.

Features and Benefits:

5 year warranty
Automatic opening/closing of the breeze break doors using non-contact IR sensors
13cm wide colour touch screen that enables intuitive operation
Detachable breeze break unit and easily separable glass panes for better cleanability
No grooves for the sliding doors so that contaminants do not accumulate
Perforated weighing pan with shock absorber that mitigates the effects of both convection flows and sample placement impact (patent pending)
Impact shock detection (ISD) providing feedback to prevent damage to the weight sensor (patented)
AD-Just - Automatic self-sensitivity adjustment using the internal weight
Internal repeatability test to quickly assess the performance under actual operating conditions
Daily/periodic balance check support
Smart routine check (SRC) function (patented)
Minimum weight setting and alert functions
User access control (UAC) with user rights management and password lock functions
History information for log-in/log-out, operation, sensitivity adjustment and impact shock detection (ISD)
Selectable response characteristics for trading faster weighing speed for higher display stability or vice versa
GLP/GMP/GCP/ISO compliant output to meet documentation requirements
GLP custom output mode that provides flexible GxP-compliant data output with customisable templates
Label output mode that enables ZPL®/ZPL II® printing with customisable text/barcode templates
Universal Flexi Coms (UFC) to customise printout content and layout
Gross/Net/Tare output
Formulation mode for quick, accurate weighing of multiple samples to mix
HPLC mode for preparing buffer solutions for high-performance liquid chromatography
Counting mode with Automatic Counting Accuracy Improvement (ACAI) function
Percent mode function for target weighing or checking sample variation
Statistical calculation function (SCF) to facilitate the analysis of measurements
Auto power ON and OFF functions
Density measurement mode
Underhook for weighing a magnetic material as well as measuring density

Technical Data:

Capacity	220g
Readability	0.1mg
Repeatability (standard deviation)	0.09mg
Minimum weight (typical)	104mg
Linearity	±0.2mg
Stabilisation time (typical when set to FAST)	Approx. 3secs
Internal weight	Approx. 200g
Sensitivity drift	±2 ppm/°C (10 to 30°C/50 to 86°C, when automatic self-sensitivity adjustment is OFF)
Operating environment	5 to 40°C (41 to 104°F), 85%RH or less (no condensation)
Display unit	5" WVGA, TFT LCD colour touch screen (resistive type) with two IR sensors
Display language	English, French, German, Italian, Dutch, Spanish, Portuguese, Russian, Korean, Chinese, Japanese
Display refresh rate	5 times/sec or 10 times/sec
Units of measurement	mg (milligram), g (gram), oz (ounce), ozt (troy ounce), ct (metric carat), mom (momme), dwt (pennyweight), gr (grain), pcs (counting mode) and % (percent mode)
Counting mode - Minimum unit mess	0.1mg
Counting mode - Number of samples	10 to 100 pieces
Percent mode - Minimum 100% reference mass	10.0mg
Percent mode - % readability	0.01%, 0.1%, 1% (depends on the reference mass stored)
Communication interface	RS-232C (D-Sub 9P), USB-A, USB-C, Ethernet (TCP/IP), External key input x 2, Bluetooth®
Application weights for calibration test/sensitivity adjustment	Any weight between 10g and 200g
Weighing pan size	Ø90mm
External dimensions (WxDxH)	265 x 442x 381mm
Net weight	Approx. 8kg
Net weight external ioniser	0.4kg
