Balance Premium Micro 220g x 0.01mg

UOM:

EACH

Stock:

Special Order

Add to Favourites

Description

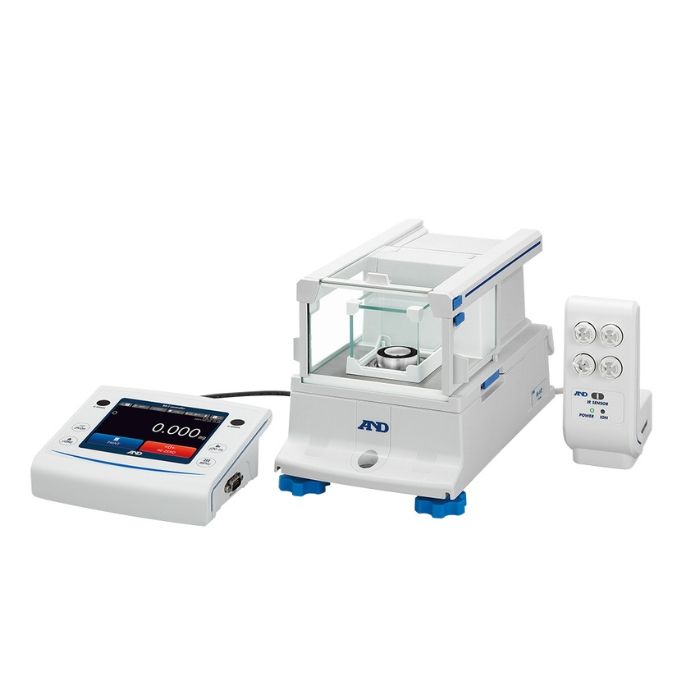

Experience premium weighing solutions with outstanding ease of use and maintenance. In addition to promising reliable results, the BA6TE provides exceptional efficiency and time savings to improve daily tasks and routines while meeting various laboratory requirements, thanks to the ingenious automatic-door mechanism, highly cleanable structure and intuitive 13cm wide colour touch screen navigation for advanced user access control, daily/periodic balance check etc. An ideal choice for users who seek superior professional quality and need nothing but the best.

Features and Benefits:

5 year warranty
Automatic opening/closing of the breeze break doors using non-contact IR sensors
13cm wide colour touch screen that enables intuitive operation
External ioniser for instant static removal
Detachable breeze break unit and easily separable glass panes for better cleanability
No grooves for the sliding doors so that contaminants do not accumulate
Inner breeze break to increase stability
On-screen leveling assist
AD-Just - Automatic self-sensitivity adjustment using the internal weight
Internal repeatability test to quickly assess the performance under a given environment
Daily/periodic balance check support
Minimum weight setting and alert functions
User access control (UAC) with user rights management and password lock functions
Selectable response characteristics for trading faster weighing speed for higher display stability or vice versa
GLP/GMP/GCP/ISO compliant output to meet documentation requirements
Gross/Net/Tare output
Counting mode with Automatic Counting Accuracy Improvement (ACAI) function
Percent mode function for target weighing or checking sample variation
Statistical calculation function (SCF) to facilitate the analysis of measurements
Auto power ON and OFF functions
Underhook for weighing a magnetic material as well as measuring density

Technical Data:

Capacity	220g
Readability	0.01mg
Repeatability (standard deviation)	0.015mg (for 50g) 0.03mg (for 200g)
Minimum weight (typical)	20mg
Linearity	±0.15mg
Stabilisation time (typical when set to FAST)	Approx. 7secs
Internal weight	Approx. 100g
Sensitivity drift	±2 ppm/°C (10 to 30°C/50 to 86°C, when automatic self-sensitivity adjustment id OFF)
Operating environment	5 to 40°C (41 to 104°F), 85%RH or less (no condensation)
Display unit	5" WVGA, TFT LCD colour touch screen (resistive type) with two IR sensors
Display refresh rate	5 times/sec or 10 times/sec
Units of measurement	mg (milligram), g (gram), oz (ounce), ozt (troy ounce), ct (metric carat), mom (momme), dwt (pennyweight), gr (grain), pcs (counting mode) and % (percent mode)
Counting mode - Minimum unit mess	0.1mg
Counting mode - Number of samples	10, 25, 50 or 100 pieces
Percent mode - Minimum 100% reference mass	10.0mg
Percent mode - % readability	0.01%, 0.1%, 1% (depends on the reference mass stored)
Communication interface	RS-232C (D-Sub 9P), USB-A, USB-B (mini B), Ethernet (TCP/IP), External key input x 2, Bluetooth®
Application weights for calibration test/sensitivity adjustment	Any weight between 10g and 200g
Weighing pan size	Ø85mm
Display unit dimensions (WxDxH)	182 x 138 x 73mm
Weighing unit + breeze break unit dimensions (WxDxH)	173 x 305 x 284mm
External ioniser dimensions (WxDxH)	68 x 129 x 73mm
Net weight (Display unit + weighing unit + breeze break unit)	6.7kg
Net weight external ioniser	0.4kg
