Balance Premium Analytical 220g x 0.1mg

UOM:

EACH

Stock:

Special Order

Add to Favourites

Description

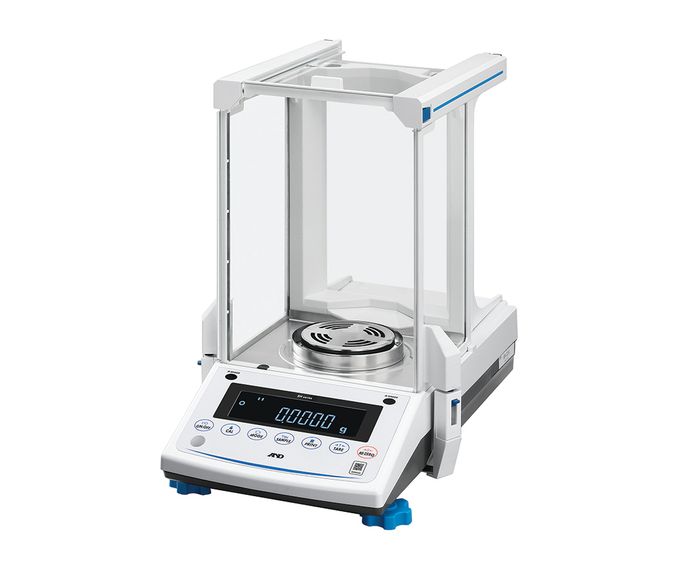

Featuring a reverse-backlit LCD display, the BH224 is ideal for users who require core functionality. It provides reliable performance with straightforward interface, making it a practical choice for essential weighing needs.

Features and Benefits:

5 year warranty
Automatic opening/closing of the breeze break doors using non-contact IR sensors
Easily separable glass panes and floor plate for better cleanability
No grooves for the sliding doors so that contaminants do not accumulate
Perforated weighing pan with shock absorber that mitigates the effects of both convection flows and sample placement impact (patent pending)
Impact shock detection (ISD) providing feedback to prevent damage to the weight sensor (patented)
AD-Just - Automatic self-sensitivity adjustment using the internal weight
Internal repeatability test to quickly assess the performance under actual operating conditions
Minimum weight setting and alert functions
User access control (UAC) with user rights management and password lock functions
Data memory function
Selectable response characteristics for trading faster weighing speed for higher display stability or vice versa
GLP/GMP/GCP/ISO compliant output to meet documentation requirements
Universal Flexi Coms (UFC) to customise printout content and layout
Gross/Net/Tare output
Counting mode with the Automatic Counting Accuracy Improvement (ACAI) function
Percent mode function for target weighing or checking sample variation
Auto power ON and OFF functions
Density measurement mode

Technical Data:

Capacity	220g
Readability	0.01mg
Repeatability (standard deviation)	0.09mg
Minimum weight (typical)	104mg
Linearity	±0.2mg
Stabilisation time (typical when set to FAST)	Approx. 3secs
Internal weight	Approx. 200g
Sensitivity drift	±2 ppm/°C (10 to 30°C/50 to 86°C, when automatic self-sensitivity adjustment is OFF)
Operating environment	5 to 40°C (41 to 104°F), 85%RH or less (no condensation)
Display unit	Reverse backlit LCD (main characters: 11 segments, 17.8mm height)
Units of measurement	mg (milligram), g (gram), oz (ounce), ozt (troy ounce), ct (metric carat), mom (momme), dwt (pennyweight), gr (grain), pcs (counting mode) and % (percent mode)
Counting mode - Minimum unit mess	0.1mg
Counting mode - Number of samples	5, 10, 25, 50 or 100 pieces
Percent mode - Minimum 100% reference mass	10.0mg
Percent mode - % readability	0.01%, 0.1%, 1% (depends on the reference mass stored)
Communication interface	RS-232C (D-Sub 9P), USB-C, Ethernet (TCP/IP), External key input
Application weights for calibration test/sensitivity adjustment	200g, 100g, 50g, 20g, 10g
Weighing pan size	Ø90mm
External dimensions (WxDxH)	265 x 442x 381mm
Net weight	Approx. 8kg
Net weight external ioniser	0.4kg
