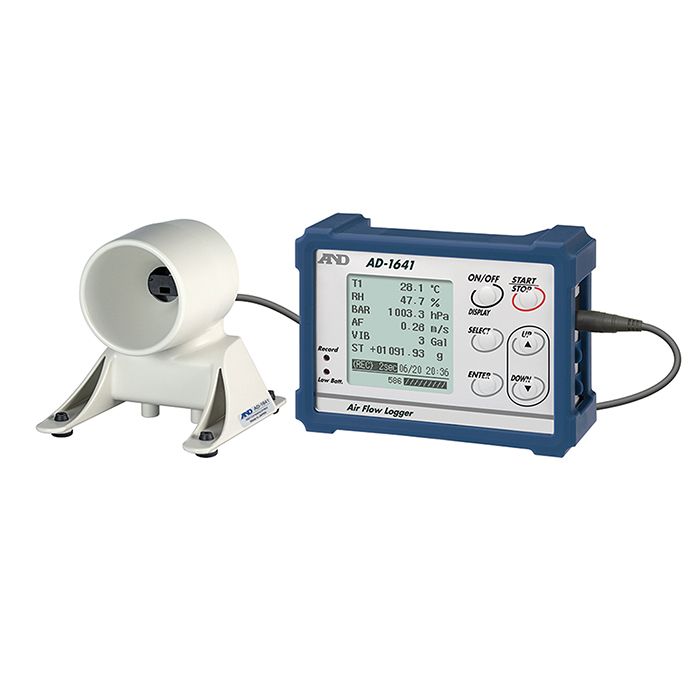

Air Flow / Environmental Logger A&D

Stock:

Out of Stock

Add to Favourites

Downloads

User Manuals

Description

Not just a simple air flow logger, but the world's most versatile environmental data logger! Temperature, humidity, barometric pressure, vibration and weighing data - All in one device!

Features and Benefits:

High precision, fast response air flow sensor to capture low-velocity air flows o 1 to 1.00m/s
Measuring and recording of four other kinds of environmental data - temperature, humidity, barometric pressure and vibration
Alarm for abnormal values (comparator function)
Large memory capacity of 10,000 data sets
Instant data saving to a PC requiring no special software
Separate, easy-to-mount air flow sensor with 2m cable length
Simultaneous logging of the five kids of environmental data and weighing data
Real-time transmission of environmental data (with or without weighing data) to a PC possible
No battery power required when connected to a PC
Power saving function when operated on batteries
Remaining battery level indicator
Interval time setting for data capture
Peak hold function for vibration measurement
Primary data mode to display two selected data items in large size separately
Trend graph mode to visualise chronological changes using graphs
Protector against dust and water (IP65) as well as 1.5m drop impacts
ID number setting that makes file management easier

Technical Data:

	Resolution	Measurement Range	Accuracy
Air flow	0.01m/s	0 to 1.00m/s	+/- 0.05m/s (0.1 to 1.oom/s)
Temperature	0.1c	0 to 60c	+/- 0.5c (20 to 30c)
Humidity	0.1%RH	0 to 100%RH	+/-3% (20 to 80%)
Barometric pressure	0.1hPa	500 to 1,100hPa	+/-3 hPa (0 to 60c)
Vibration	1 Gal	0 to 2,000 Gal	+/-20% static acceleration

Data capacity	Maximum 10,000 sets (including date and time)
Interval time	1, 2, 5, 10, 15, 20, 30 seconds, 1, 2, 5, 10, 15, 20, 30, 60 minutes
Power supply	Two LR6 (AA) batteries or USB
Battery life	Approx 20 hours (with alkaline batteries)
Clock accuracy	Maximum +/-1 minute / month
Compatible operating systems	Windows 2000/XP/Vista/7/8 (32 / 64bit)
Operating Environment	0 to 60c, 85% RH or less (no condensation)
Dimensions	Main Unit: 127 W x 90 H x 36 D Air flow: 90 W x 90 H x 81 D
Weight	Main Unit: 275g Air flow: 89.7g
