Meter Multi Parameter Handheld PC8500 pH / Conductivity / TDS / Salinity

UOM:

EACH

Stock:

1 - 9

Add to Favourites

Downloads

User Manuals

Description

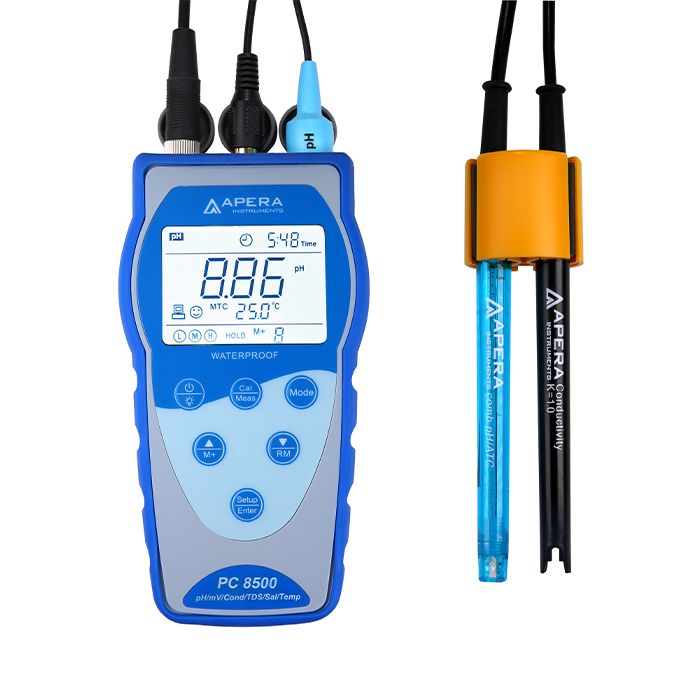

Portable pH / Conductivity Meter Kit with GLP Data Logger and USB Data Output

Features and Benefits:

Supports simultaneous connection of pH and conductivity electrode, enabling multiple measurements in a single device
GLP data management with 500 sets of data storage (manual or automatic timing data logger) and convenient USB data output for analysis and reporting
Built for demanding field applications - IP57 waterproof, silicone-protected sockets and grip-enhancing housing provide excellent drop and impact resistance
Integrated foldable stand allows the meter to transition easily between field use and benchtop operation
Equipped with the 201T-F pH/Temperature electrode, featuring Apera's proprietary lithium lead-free glass membrane for fast, accurate readings for general water solutions
Automatic 1 - 3 point calibration with reminders and last-calibration date review: automatically recognises pH 1.68, 4.00, 7.00, 10.01 and 12.45 standards
Built-in self-diagnosis ensures proper calibration and provides guidance for correcting common pH issues
Universal BNC connector, fully compatible with LabSen® Series professional electrodes for specialised applications
ORP measurement capability when paired with an optional electrode
The 2301T-S Conductivity/Temperature electrode uses a firm platinum black sensor, delivering ±1% F.S. accuracy across a wide range (0-200 mS/cm)
Single-tap switching between conductivity, TDS, salinity and resistivity modes
Automatic 1 - 3 point conductivity calibration with reminders and last-calibration date review.
Conductivity measurement range can be extended up to 1999 mS/cm with the 2310T-S high-range electrode (K=10, sold separately)
Adjustable TDS conversion factor from 0.4 - 1.00 for different applications and water samples

Technical Data:

pH measuring range	-2.00 - 16.00 pH
pH resolution	0.1 / 0.01 pH
pH accuracy	±0.01 pH ±1 digit
pH temperature compensation range	0 - 100˚C (auto or manual)
pH calibration points	1 - 3 points
mV measuring range	±2000 mV
mV resolution	1 mV
mV accuracy	±0.1% FS ±1 digit
Conductivity measuring range (divided into 6 ranges)	0 - 1999 mS/cm
1	0 - 19.99 μS/cm
2	20.0 - 199.9 μS/cm
3	200 - 1999 μS/cm
4	2.00 - 19.99 mS/cm
5	20.0 - 199.9 mS/cm
6 - additional accessory required	200 - 1999 mS/cm
TDS	0 - 1 g/L
Salinity	0 - 100 ppt
Conductivity resolution	0.01/0.1/1 μS/cm 0.01/0.1/1 mS/cm
Conductivity accuracy	±1.0% FS ±1 digit
Conductivity temperature compensation range	0 - 50˚C (auto or manual)
Conductivity cell constant	0.1/1/10 cm-1
Temperature measuring range	0 - 100˚C
Temperature resolution	0.1˚C
Temperature accuracy	±0.5˚C ±1 digit
Data storage	500 sets
Storage content	Numbering, measuring value, temperature value, data and time
Power	3 x AA alkaline batteries
Connector pH & ORP	BNC
Connector temperature	RCA
Connector conductivity	8-pin
Meter dimensions & weight	88 x 170 x 33mm, 313g
Case dimensions & weight	360 x 270 x 76mm, 1.6kg
