Electrode pH Low Ionic Solutions Purified Water ATC

Stock:

1 - 9

Add to Favourites

Downloads

User Manuals

Description

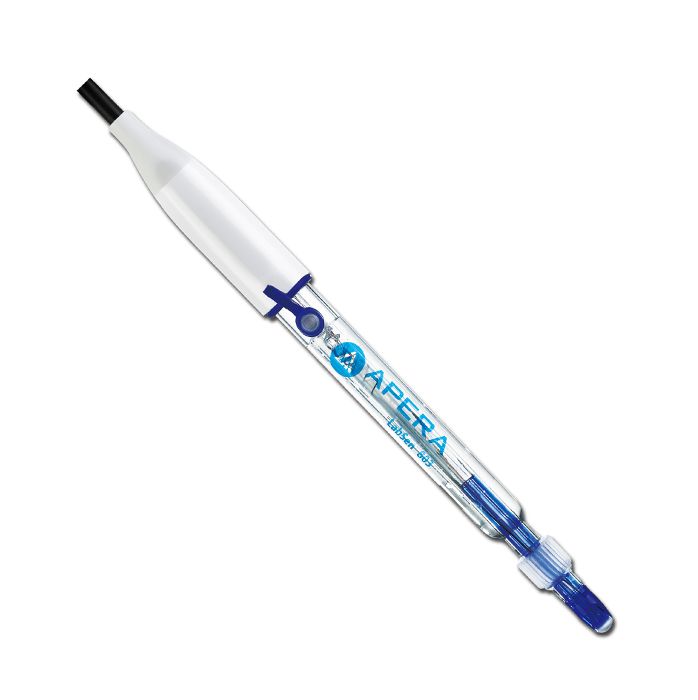

Built with proprietary sensor technology and premium materials from Switzerland, Apera LabSen 803 Glass-body pH/Temp. Electrode is made for pH measurements of pure water such as distilled and deionised water, and other low ionic strength solutions.

LabSen L-type glass membrane - fast response in low ionic strength solutions thanks to its ultra-low resistance formula (<50MΩ), providing fully stabilised readings in 30 to 60 seconds.

Movable Sleeve Junction - easy to clean, especially suitable for low ionic strength solutions, emulsions, and suspensions. The infiltration rate of the electrolyte can be adjusted by the tightness of the sleeve.

Swiss patented pH/temperature combination structure - increases the temperature response time by 40% compared to a conventional isolated built-in thermistor, accelerating ATC and the stabilisation process.

Compatible with all Apera Instruments meters with BNC and RCA connectors such as PH910, PH9500, PH850, PC8500. May NOT work with other brands' meters because the thermistor might be incompatible.

Features and Benefits:

Proprietary sensor technology and premium materials from Switzerland
Built with LabSen L-type glass membrane for low ionic strength solutions
Movable Sleeve Junction - easy to clean, adjustable infiltration rate
Silver ion trap reference system
Swiss patented pH/Temperature combination structure for faster ATC

Technical Data:

Material	Lead Free Glass
Built-in Temperature Compensation Sensor	Yes
Junction	Moveable Sleeve
Reference	Silver Ion Trap
Electrolyte	3M KCL
Length	130mm
Diameter	12mm
Glass Impedance	<50MΩ
Range	1 to 11pH
Temperature Range	0 to 80c
Connector	BNC/RCA
Cable	1m
