Stock Code:
2310T-F
Electrode Conductivity K=10 ATC
UOM:
EACH
Stock:
1 - 9
Downloads
Description

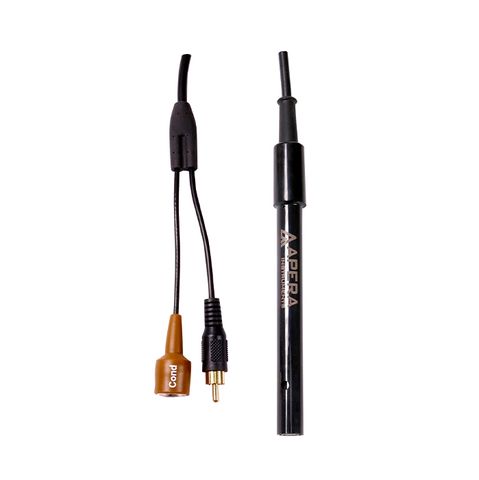

Apera Instruments 2310T-F conductivity/temperature electrode is designed for high-range conductivity measurement (20 - 2000 mS/cm). Built with a proprietary ring sensor coated with platinum black, the electrode provides a stable and accurate measurement in high-range conductivity. The accuracy is ±1.5% F.S. Even without calibration the accuracy can maintain at ±10% F.S. Built-in temperature sensor is built in to enable automatic temperature compensation.
Features and Benefits:
- Designed for high-range conductivity measurement, up to 2,000 mS/cm (K=10)
- Built with Apera's proprietary sensor ring coated with platinum black
- Accuracy: ±1.5% F.S; Without calibration, accuracy is ±10% F.S
- Suitable for high concentration electrolyte, saltwater, and other high conductivity solutions.
- Compatible with any conductivity meters that adopt BNC connector
- Temperature sensor built-in, enabling auto. temp. compensation
Technical Data:
| Conductivity range | 20 - 2000 mS/cm |
| Temperature range | 0 - 50 °C |
| Housing | POM |
| Constant | K = 10 |
| Connector | BNC/RCA |
| Cable length | 1m |
| Dimension | ø12 x 145mm |
| Temperature sensor | 30KΩ thermistor |
| Operating temperature | 0 - 80°C |
