Meter Conductivity / TDS / Salinity Benchtop with Test Bench EC9500

Stock:

1 - 9

Add to Favourites

Downloads

User Manuals

Description

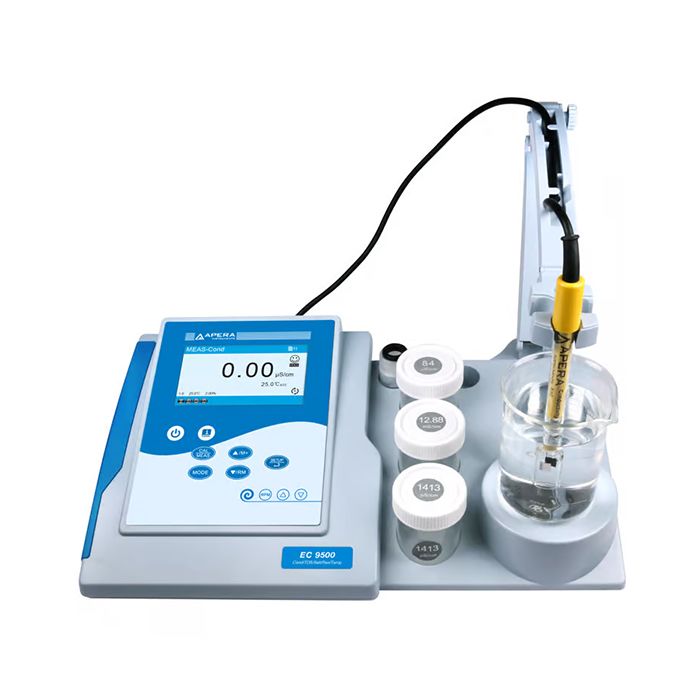

The EC9500 is a research-grade benchtop conductivity meter that is designed for laboratory professionals, offering long-term reliability in high-accuracy conductivity/TDS/salinity/resistivity measurement.

The meter is rich in features including comprehensive GLP data logging, data export to printer or PC, calibration password protection, buffer organizers, self-diagnosis, i-Guidance, and many more while retaining simplicity in use.

Instrument Features:

An advanced yet intuitive user interface with plain language and graphic screen prompts that does not require tedious manual reading or training to operate.
Manual/Auto. data logger with 1000 groups of storage with comprehensive GLP data input including electrode ID, user ID, sample ID, company name, and calibration password for data protection. USB Data export to PC for further analysis or to a pin-type mini printer for instant report (sold separately).
i-Guide is always available through the “i” key. Clear tutorial messages and directions are available on-screen to quickly and easily guide users through setup and calibration.
Comes with Apera TestBench that incorporates a flexible electrode holder, an intelligent magnetic stirrer, and buffer organisers altogether, streamlining the process of measurement and calibration.

Conductivity Measurement:

The 2401T-F glass-body conductivity/temp. Electrode allows you to take highly accurate conductivity measurement in any sample solutions within a range of 0 to 200mS/cm at ±1% F.S accuracy.
1 to 4 points automatic calibration with a choice of 4 conductivity standards (84µS/cm, 1413µS/cm, 12.88mS/cm, 111.8mS/cm) or user-define standards.
One-tap switch from conductivity to TDS, salinity or resistivity.
Three salinity types for your option: general salinity, saltwater salinity, and NaCl.
Standard BNC conductivity connector, compatible with 2310T-F for high range measurement (up to 2000 mS/cm) and DJS-0.1-F for high purity water; RCA connector for a temperature probe, NTC 30KΩ thermistor

Technical Data (Meter):

Conductivity	Range	0us/cm to 2,000mS/cm
	Resolution	0.01/0.1/1μ/cm; 0.01/0.1/1 mS/cm
	Accuracy	±.5% F.S ± digit
	Temp Compensation Range	0 to 50c (automatic or manual)
	Cell Constant	0.1/1/10 cm-1
	Reference Temp	15 to 30° (adjustable)
	Temp Compensation Coefficient	0.00 to 10.00% (adjustable)
	Calibration Points	1 to 4
TDS	Range	0.00 mg/L to 1000 g/L
	Resolution	0.01/0.1/1mg/L; 0.01/0.1/1 g/L
	Accuracy	±.0% F.S ± digit
	Temp Compensation Range	0 to 50° (auto. or manual)
	TDS Factor	0.40 to 1.00 (adjustable)
Salinity	Range	0.00 to 100 ppt
	Resolution	0.01/0.1 ppt
	Accuracy	±.0% F.S ± digit
	Temp Compensation Range	0 to 50° (auto. or manual)
	Salinity Type	Linear / NaCl / Saltwater
Resistivity	Range	0.00 Ω·m to 100MΩ·m
	Resolution	0.1/1 Ω·m; 0.01/0.1/1KΩ·m; 0.1 MΩ·m
	Accuracy	±.0% F.S ± digit
	Temp Compensation Range	0 to 50° (auto. or manual)
Temperature	Range	-10 to 110c
	Accuracy	+/- 0.5c
	Resolution	0.1c; 0.1/1c

Display	TFT Colour Display
Stable Measuring Indication	Smily Face Icon
Automatic Hold	Yes
Calibration Reminder	Yes
Calibration Data Check	Yes
Measuring Alarm	Yes
Date and Time	Yes
Data Storage	1,000 Sets
Timing Storage	Yes
Self Diagnosis Information	Yes
USB Output	Yes
GLP Print	Yes (printer optional)
External Keyboard	Yes
pH Electrode Connector	BNC
Electrode Holder	Yes (with built in stirrer)
IP Rating	IP54 Water and Dust Proof
Power	DC9V
Dimensions and Weight	360 x 165 x 400mm
Weight	1.25kg
