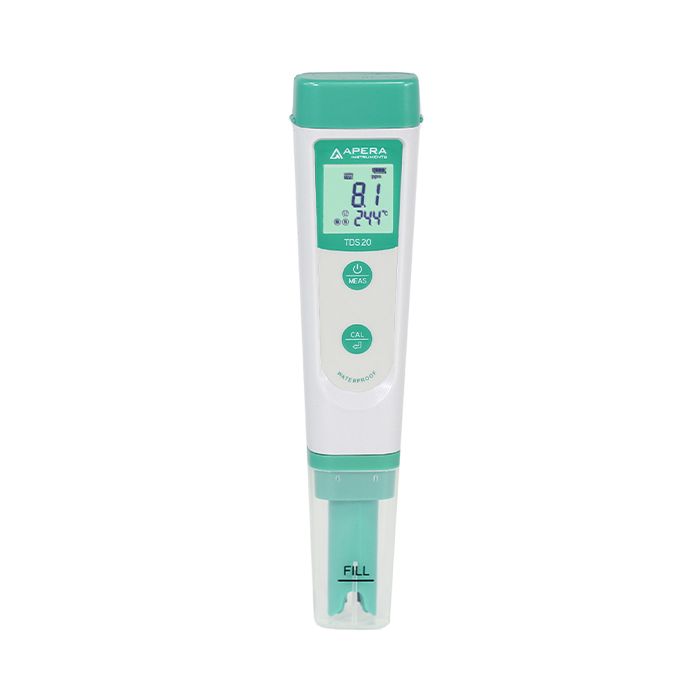

Meter TDS Pocket Tester TDS 20

Stock:

20 - 29

Add to Favourites

Downloads

User Manuals

Description

The EC20 tester is simply the most reliable conductivity (EC) tester with the best value for all kinds of regular EC testing, such as hydroponics, education, tap/drinking water, swimming pool, water treatment, etc. Up to 2 points of Auto Calibration with buffer recognition and 0 to 50˚C Auto Temperature Compensation (ATC), ±1% F.S, 0.5˚C accuracy with measuring range of 0-200.0 µS/cm, 0-2000 µS/cm, 0-20.00 mS/cm, 0-50.0˚C.

The BPB (Brush-Resistant Platinum Black) sensor adopts our special processing technology, which minimizes electrode polarization, expands measuring range, and increases the firmness of the electrode, hence ensuring a much higher accuracy and consistency in a wide-range EC measurement than traditional stainless steel electrodes, and is easy to clean.

Large clear 180˚ viewing angle screen with temp./EC value dual display and indications of completed auto calibrations and stable readings. Great functions to make your testing experience a lot easier: 3-point auto calibration with auto buffer recognition, 0 to 50˚C auto temp. compensation. Self-diagnosis with out-of-range and low battery warning, and incorrect calibration reminder.

Complete kit with calibration solutions, AAA batteries, and a lanyard all in a portable carrying case. IP67 waterproof and dustproof, floats on water so no need to worry if it falls into the water by accident. 1000 hours' continuous operation powered by AAA batteries (with low power warning and auto power off in 8 min if no operation).

Features and Benefits:

Large clear STN LCD, 180 degree viewing angle
Simultaneous display of measurement and temperature reading
Stable reading indication with a smiley face
Sefl-diagnosis to ensure correct calibrations
Powered by 4 x AAA batteries, up to 1000 hours of continuous operation
Complete kit with ready-to-use buffers
Durable design: IP67 water proof and dust proof

Technical Data (Meter):

Conductivity	Range	0 to 100ppm 0 to 1,000ppm 0 to 10ppt
	Resolution	0.1/1ppt, 0.01ppt
	Accuracy	+/- 1% (F.S.)
	Calibration Points	Automatic 1 or 2 Points
	Temperature Compensation	Auto Temperature Compensation (0 to 50c)
Temperature	Range	0 to 50c
	Resolution	0.1c
	Accuracy	+/- 0.5c

LCD	180 degree Viewing Angle LCD
Stable Reading Indication	Smiley Face Icon
Low Battery Warning	Battery icon flashing, reminder of battery replacement
Self-Diagnosis	Yes
Heads-Up Function	No
Auto Power Off	Yes, after 8 minutes without operation
Waterproof rating	IP67 (floatable)
Power	DC3V, 4 x AAA Batteries
Battery Life	Continuous Operations up to 1000 Hours
Dimensions and Weight	Tester: 40 x 31 x 178mm \| 107g With Case: 190 x 165 x 40mm \| 438g

Technical Data (Electrode):

Application	Regular water solution testing, such as pools and spas, hydroponics, tap water, drinking water, water treatment, waste water treatment, aquaculture, etc.
Type of Sensor	BPB (Brush-Resistant Platinum Black)
Replaceable	No
Temperature Sensor	Yes
Range	0.1us to 20mS
Temperature Range	0 to 50c
