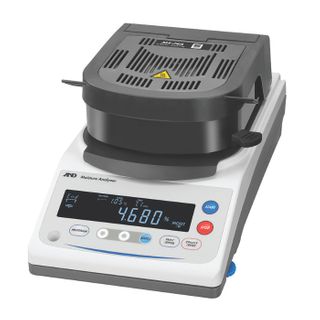

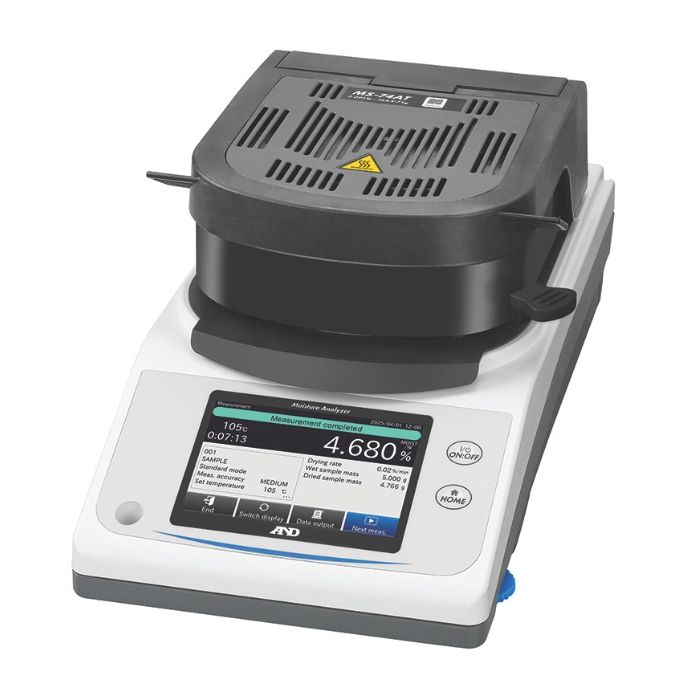

Balance Moisture 51g x 0.001g Touch Screen

UOM:

EACH

Stock:

Special Order

Add to Favourites

Downloads

User Manuals

Description

Elevate your workflow with precision moisture analysis. Thanks to intelligent optimisation, real-time feedback and flexible programming, the touch screen analyser delivers reliable, high-quality results across the widest range of applications and user expertise.

Features and Benefits:

5 year warranty
High-end touch screen
Simple, safe and chemical reagent free heat drying technology
Optimum Temperature search (Rs Temp) for quickly identifying recommended drying temperature
Powerful 400W halogen lamp for high-speed heating
Secondary Radiation Assist (SRA) for even heat distribution and lamp protection
Super Hybrid Sensor (SHS) ensuring high precision and reproducibility
Heater cover with a soft-close design for operational comfort
Automatic tare/measurement start upon cover closure
Preheating function for result consistency
Real-time display of moisture content and drying rate (%/min)
Offset adjustment (up to ±9.999%*2) for result alignment
Weighing mode to use analyser as a balance
Thermal analysis mode (up to five drying stages)
Programmed measurement Save up to 300 customised conditions
Over 100 preset programs (examples)
Level meter providing visual guidance for accurate sample placement
Sample mass calculation tool for calculating required sample weight for accurate moisture measurement
Sample pretreatment guide for displaying pretreatment recommendations based on sample characteristics
Automatic determination of drying time in Timer mode for estimating optimal drying duration at three accuracy levels
Plastic measurement guide for supporting measurements of low-moisture samples (1% or less)
Comparator function for evaluating moisture content with HI/OK/LO thresholds
User access control (UAC) with user rights management and password lock functions
Automatic storage of up to 3000 measurement results
Comprehensive history recording (adjustment, operation, log-in/out histories)
Daily-check and self-check functions for stable operation
Measurement accuracy verification using a standard test sample (sodium tartrate dihydrate)
Adjustment functions for both the weight sensor and the heater
GLP/GMP/GCP/ISO compliant output to meet documentation requirements

Technical Data:

Measurable sample weight range	0.1 - 51g
Readability - Moisture content	0.01% / 0.1%
Readability - Weight	0.001g
Reproducibility (SD) - Moisture content	≥5g: 0.02%, ≥1g: 0.1%
Reproducibility (SD) - Weight	0.001g
Measurement program memory capacity	300 programs
Measurement result memory capacity	3000 results
Display	5" WVGA, TFT LCD colour touch screen (resistive type)
Display languages	English, French, German, Italian, Dutch, Spanish, Portuguese, Russian, Korean, Chinese, Japanese
Communication interface	RS-232C (D-Sub 9P), USB (Type-A), USB (Type-C), Ethernet (TCP/IP)
Heating technology	400W halogen lamp with Secondary Radiation Assist (SRA)
Drying temperature range (near sample pan)	30 - 200°C (1°C increments)
Heating patterns	Standard heating, Ramp heating, Step heating, Quick heating
Measurement modes	Standard mode, Timer mode, Custom mode
Calculation units	Moisture content based on weight, Moisture content based on dry weight (Atro), Solid content, Ratio, Gram
Operating environment	5 - 40°C (41 - 104°F), 85% RH or less (no condensation)
Sample pan size	Ø90mm
External dimensions (WxDxH)	215 x 380 x 176mm
Net weight	Approx. 6kg
Power	Max. 500W
