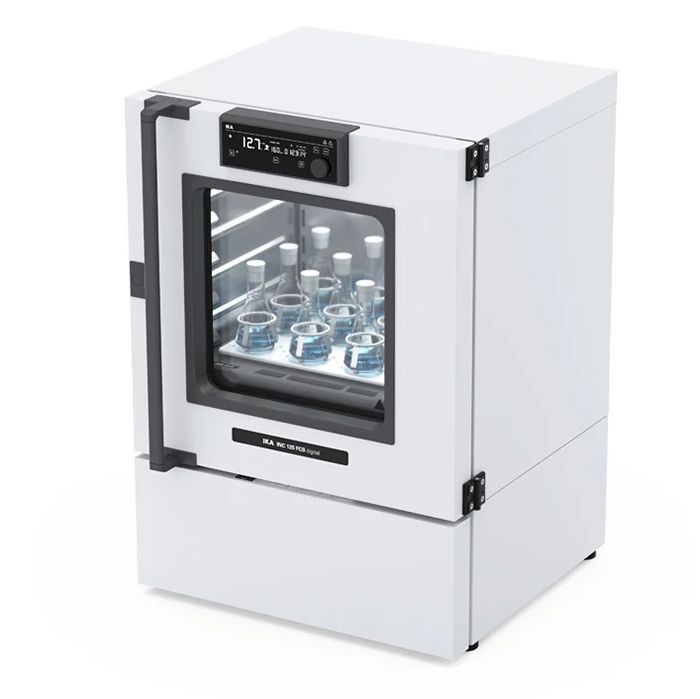

Incubator Shaker with Cooling IKA INC 125 FCS Digital (SP20)

UOM:

EACH

Stock:

Out of Stock

Add to Favourites

Downloads

User Manuals

Description

The cooling incubator with shaking function INC 125 FCS digital impresses with its precise temperature control, making it ideal for microbiological applications in the range of 5 to 80 °C. It is the first cooling and shaking incubator featuring a patented, tool-free removable shaker platform. Without the platform, the appliance can be used like a conventional cooling incubator. Its high temperature stability and uniform shaking motion, which enhances oxygen transfer into the samples, make the INC 125 FCS digital the perfect solution for cell cultivation and other microbiological processes. The powerful compressor cooling technology uses the natural refrigerant R290, making the INC 125 FCS digital particularly energy-efficient and environmentally friendly. With an internal volume of 125 liters, it offers the largest capacity in its class and allows the simultaneous use of up to six shelves in its spacious chamber.

Patented removable shaker platform

High shaking speed from 10 to 300 rpm
Shaking stroke: 20 mm for optimum oxygen input
The shaker platform can be pulled out halfway and up to the indicator line for comfortable and tilt-proof loading.
The threaded grid on the platform allows the mounting of fixing clips or STICKMAX adhesive mat for different vessels and sizes
When the door is opened, the shaking function stops automatically
Shaking and temperature control function can be used independently of each other

Hygienic Working Conditions

Decontamination mode (100c) for prevention of cross-contamination
Easy-to-clean interior with rounded corners and flat surfaces made of corrosion-resistant AISI 304 stainless steel surfaces
Defrost function with continuous water drainage through the drain opening

Optimal Temperature Control

Wide temperature range: 5 to 80c
Excellent temperature stability and uniformity: +/- 0.3K
Adjustable internal air circulation via electronically controlled fan speed (40 - 100%)
Superior temperature management and optimised energy efficiency thanks to outstanding chamber insulation
Door with large viewing window and interior lighting for observing samples without temperature loss

Simple and Intuitive Operation

Large, user friendly LCD display for clear and easy readability
Reproducible experimental conditions ensured through counter, timer, temperature controlled timer, and operating modes A, B and C

Versatile Accessories

Up to two IKA incubators can be safely stacked. An INC 125 F (incubator) can be placed on top of the INC 125 VCS (IO S 2.10 Staking kit required)
Door lock (optional accessory)
Shaking platform available with 20mm or 25mm shaking amplitude
Various shelf options available

Technical Data:


Cooling agent	R290
Cooling agent quantity	55g
Cooling agent pressure max	21bar
Heat output	750W
Working Temp	5c - 80c
Adjustment & Display Resolution	0.1K
Temperature Stability (37c @ 22c)	+/- 0.3K
Temperature Homogeneity (37c @ 22c)	+/- 0.3K
Temperature Heat Up Time (37c @ 22c)	8 min
Temperature Door Recovery (37c @ 22c)	4 min
Temperature Display	Yes (LCD)
Timer	Yes (LCD)
Time Setting Max	100 d
No. of Trays Max	6
Load for 1 Tray Max	20kg
Total volume inner chamber	125L
Thermal safety devices according DIN 12880	TB class 1
Set point limiter with safety shutdown	Yes
Door with window	Yes
Temperature Sensor Control	PT 100 4 Wire
Cleaning thermal decontamination (120c)	Yes
Thermal decontamination with SP20/25 100c	Yes
Shaking stroke	20mm
Speed range	10 - 300rpm
Speed deviation	+/-5rpm
Permissible shaking weight (incl attachment)	7.5kg
Set-up plate dimensions	340 x 480mm
Power consumption at 37c	79Wh/h
Dimensions (W x H x D)	700 x 1000 x 635mm
Weight	95kg
USB Interface	USB-B
Voltage	220 - 240V
Power Input (max)	100W
