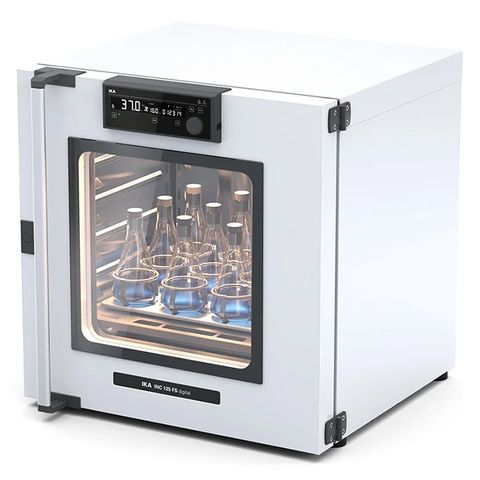

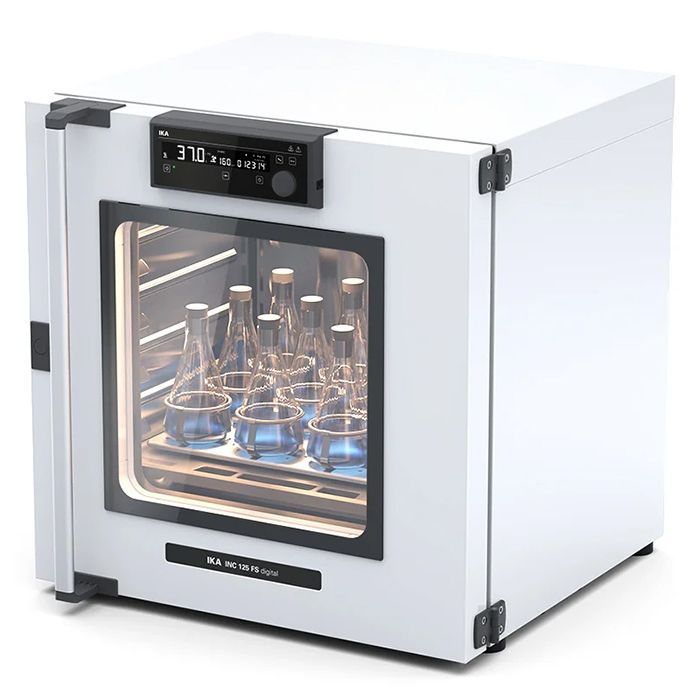

Incubator Shaker IKA INC 125 FS Digital (SP25)

UOM:

EACH

Stock:

Out of Stock

Add to Favourites

Downloads

User Manuals

Description

INC 125 FS digital is the first incubator shaker with a patented removable shaker platform. Without the platform, the unit can be used like a normal incubator. The large inner chamber with a volume of 125 liters offers space for up to 6 grid shelves (without shaker platform).

Thanks to high temperature stability and a uniform shaking motion that improves oxygenation, the incubator shaker is the perfect solution for cell cultivation and other microbiological applications.

Patented removable shaker platform

High shaking speed up to 300 rpm
Shaking stroke: 25 mm (optional: 20 mm) for optimum oxygen input
The shaker platform can be pulled out halfway (with line indicator) for comfortable and tilt-proof loading.

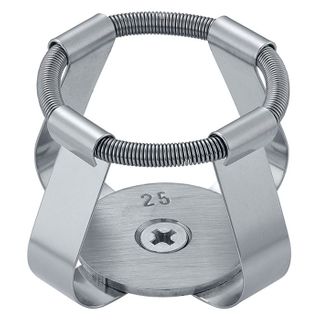

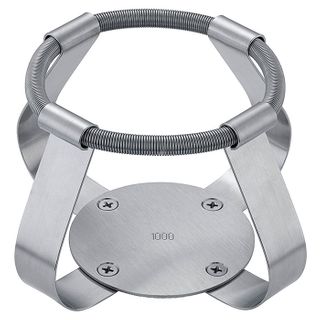

The threaded grid on the platform allows the mounting of fixing clips or STICKMAX adhesive mat for different vessels and sizes
Automatic detection of the shaker platform allows the temperature to be automatically adjusted in decontamination mode (100 or 120°C)
When the door is opened, the shaking function stops automatically
Shaking and temperature control function can be used independently of each other

Easy to clean

Simple cleaning of the interior thanks to rounded corners and flat surfaces made of corrosion-resistant material AISI 304

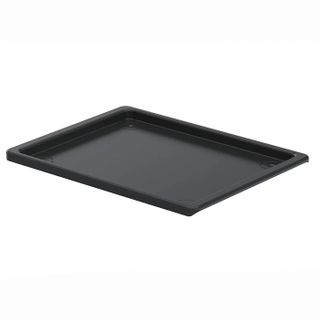

The optional drip pan provides additional safety in case of liquid overflow or can be used as water reservoir to increase humidity in the chamber
Decontamination mode for disinfection and reduction of cross-contamination (100/120°C)

Optimal temperature control

Wide temperature range: RT +8°C to 80 °C
Excellent temperature management and optimized energy consumption thanks to very good insulation of the inner chamber and triple-glazed door with window
Internal air circulation can be influenced by electronically adjustable fan speed (0-100%)

Simple and intuitive operation

Very large LCD display for easy reading
Large viewing window and switchable interior lighting for observation of samples
Counter, timer and timer auto (temperature-controlled) function to ensure reproducible test conditions

Versatile accessories

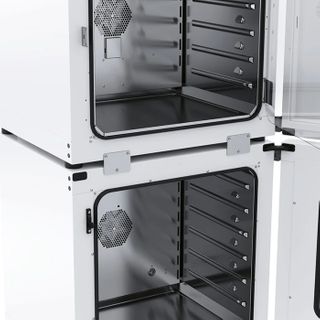

Up to two devices (incubator shaker or incubator) can be stacked (with corresponding accessories)

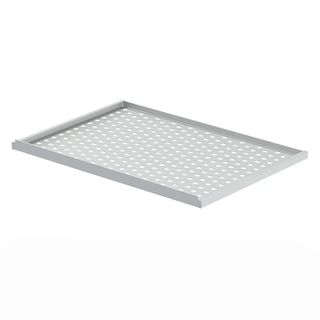

Different trays available

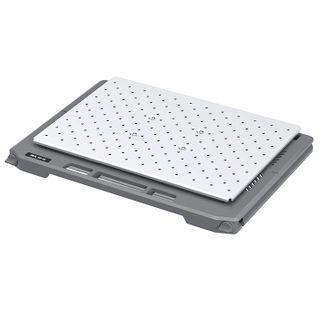

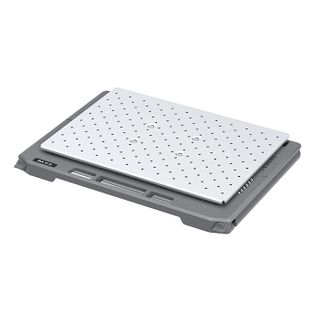

Shaking platform available with 20 or 25 mm shaking stroke

Technical Data


Heat output	750W
Working Temp	Room temp +8 - 80c
Adjustment & Display Resolution	0.1K
Temperature Stability (37c @ 22c)	+/- 0.1K
Temperature Homogeneity (37c @ 22c)	+/- 0.2K
Temperature Heat Up Time (37c @ 22c)	12 min
Temperature Door Recovery (37c @ 22c)	2 min
Temperature Display	Yes (LCD)
Timer	Yes (LCD)
Time Setting Max	100 d
No. of Trays Max	6
Load for 1 Tray Max	20kg
Operating Area Inner Chamber	550 x 550 x 415mm
Total volume inner chamber	125L
Thermal safety devices according DIN 12880	TB class 1
Set point limiter with safety shutdown	Yes
Door with window	Yes
Temperature Sensor Control	PT 100 4 Wire
Cleaning thermal decontamination (120c)	Yes
Thermal decontamination with SP20/25 100c	Yes
Shaking stroke	25mm
Speed range	10 - 300rpm
Speed deviation	+/-5rpm
Permissible shaking weight (incl attachment)	7.5kg
Set-up plate dimensions	340 x 480mm
Power consumption at 37c	85Wh/h
Dimensions (W x H x D)	700 x 720 x 635mm
Weight	60kg
USB Interface	USB-B
Voltage	220 - 240V
Power Input (max)	800W
