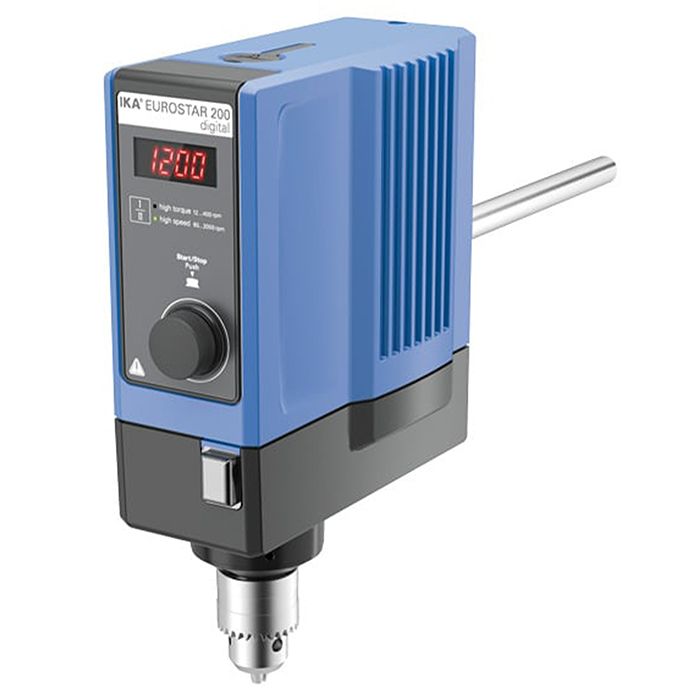

Stirrer Overhead IKA EUROSTAR 200 Digital

Stock:

Out of Stock

Downloads

Description

Extremely powerful laboratory stirrer for highly viscous applications and intensive mixing for quantities up to 100 l (H2O). It automatically adjusts the speed through microprocessor controlled technology within the speed range of 0/6 – 2000 rpm (two speed ranges). Safety circuits installed ensures automatic cut-off in an anti-stall or overload conditions. Continuous comparison of shaft speed to desired speed is maintained and variations are adjusted automatically. This guarantees a constant speed even with changes in viscosities of the sample.

Features and Benefits:

Digital speed display
Infinitely adjustable speed
Push-through agitator shafts
Overload protection
Short-term overload operation
Slim casing
Quiet operation
Error code display

Technical Data:

Stirring Quantity Max (H20)	100L
Motor Rating Input	130W
Motor Rating Output	84W
Motor Principle	Brushless DC
Speed Display	7 Segment LED
Speed Range	0/30 - 2,000rpm
Viscosity Max	100,000mPas
Output Max at Stirring Shaft	84W
Permissible On Time	100%
Torque Max at Stirring Shaft	200Ncm
Torque I Max	200Ncm
Torque II Max	40Ncm
Speed Range I	6 - 400rpm
Speed Range II	30 - 2,000rpm
Speed Adjustment	Stepless
Setting Accuracy Speed	+/-1rpm
Deviation of Speed Measurement n>300rpm	+/- 1%
Deviation of Speed Measurement n<300rpm	+/-3rpm
Stirring Element Fastening	Chuck
Chuck Range Diameter	0.5 - 10mm
Hollow Shaft, inner diameter	10.3mm
Hollow Shaft, (push through - when stopped)	Yes
Fastening on Stand	Extension arm
Extension arm diameter	16mm
Extension arm length	220mm
Speed Control	Electronic
Nominal Torque	2Nm
Housing Material	Alu-cast coating / thermoplastic polymer
Dimensions (W x H x D)	91 x 274 x 209mm
Weight	4.6kg
Protection class according to DIN EN 60529	IP42
