Stock Code:
1129751

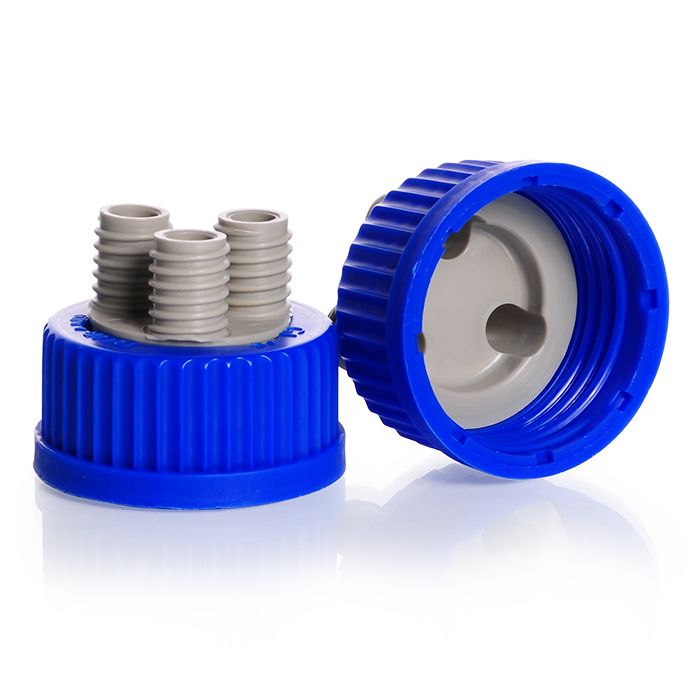

Cap Screw PP GL45 Blue 3 Port DURAN - GL14 ports
Stock:
Out of Stock
Description
Flexible modular GL 45 connection cap system that accepts four different rigid or semi-rigid tubing diameters (1.6 mm; 3.0 mm; 3.2 mm and 6.0 mm). The caps are available with 2 or 3 GL 14 threaded ports. The different sized inserts form a tight seal around the pass-through tubing. Sterile pressure equalisation is possible through use of 0.2 µm syringe filter. Unused ports can be sealed off with a red GL 14 screw cap.
Features and Benefits:
- Manufactured from Polypropylene
- Rigid or semi-rigid tubing of different diameters can be accepted by using a blue GL14 open topped cap with one of the inserts
- Four different tubing diameters (1.6mm, 3.0mm, 3.2mm, 6.0mm) tubing outer diameter) can be used by changing the GL14 inserts
- By applying positive or negative pressure liquid can be pumped out of or into the bottles via screw cap
- Fully compatible with all the GL45 threads and therefore highly versatile
Technical Data:
| No. of Ports | 3 |
| Port Thread | GL14 |
| Material | PP, Viton (fluoropolymer elastomer) |
| Diameter | 54mm |
| Height | 43.7mm |
| Thread | GL45 |
| Autoclavable | Yes |
Details
-
Pack Size:PK2
